Honda XL350R 1984 User Manual

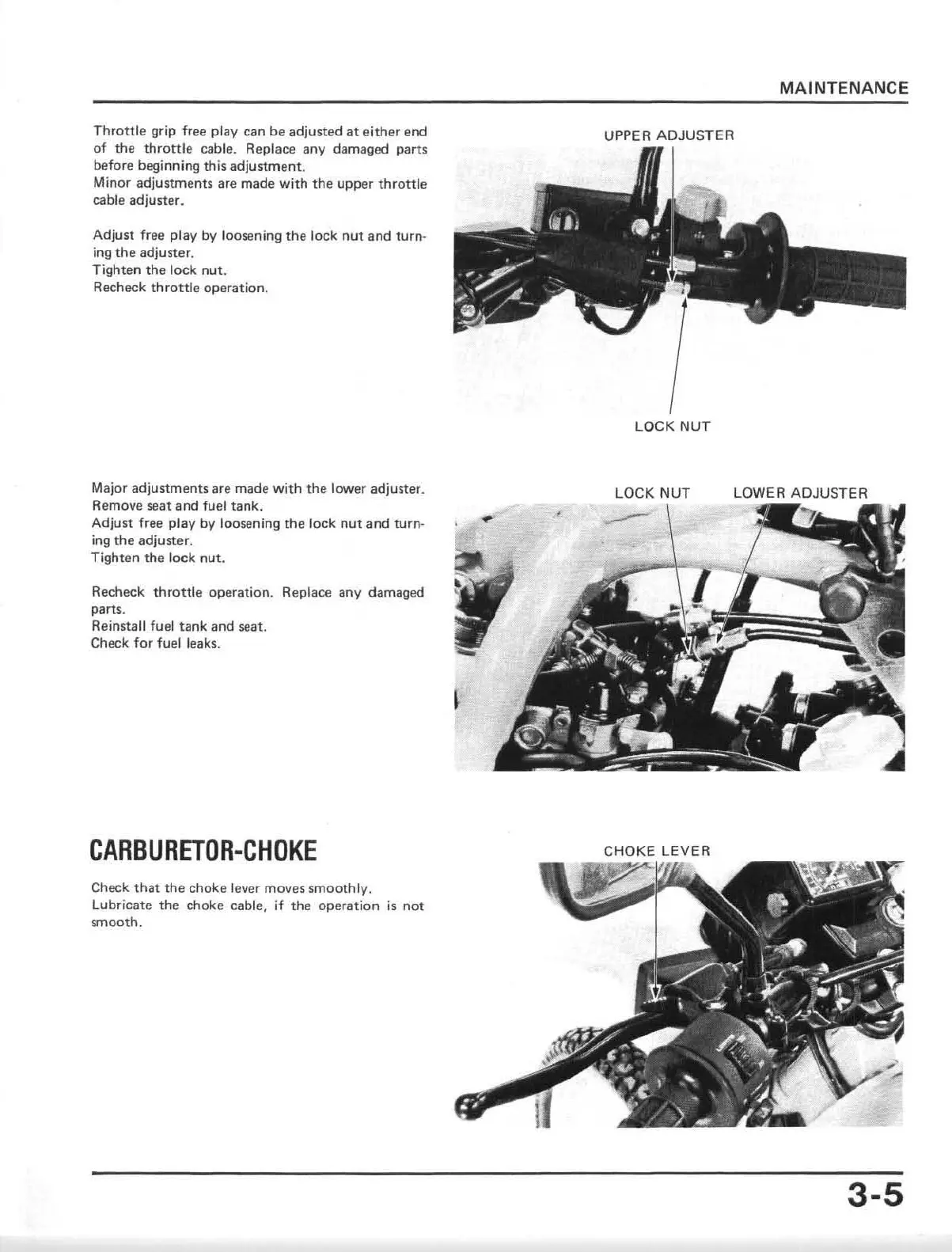

Throttle grip free play can be adjusted at ei ther end
of the
thrott le cable. Replace any damaged parts
before beginning this adjustment.
Minor adjustments are made
with the upper throttle
cable adjuster.
Adjust free play by
loosening the lock nut and turn-
ing the adjuster,
Tighten the l ock nut.
Recheck throttle operation.
Major adjustments are made with the lower adjuster.
Remove seat and fuel tank.
Adjust free pl ay by loosening the lock nut and turn -
ing the adjuster.
Tighten the l ock nut.
Recheck throttle operation. Replace any damaged
parts.
Reinstall fuel tank and seat.
Check for fuel leak s.
UPPER ADJUSTER
LOCK NUT
LOCK NUT
CARBURETOR-CHOKE CHOKE LEVER
Check that the choke lever mOlles smoothly.
Lubricate the choke cable, if the operation is not
smooth.
MAINTE NANCE
LOWER ADJUSTER
3-5

Honda XL350R 1984 Specifications

General

Ignition	CDI
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Pro-Link single shock
Rear Brake	Drum
Front Tire	3.00-21
Rear Tire	4.60-17
Engine Type	single cylinder
Carburetion	Keihin
Front Brake	Disc
Seat Height	880 mm (34.6 inches)
Fuel Capacity	12 liters (3.2 gallons)
Transmission	6-speed
