Honeywell 5898 - Detection Patterns; Top View; Side View; Lens Masking

5898 Wireless DUAL TEC
®
Motion Sensor - Installation Instructions
PRELIMINARY DRAFT 5/18/09 - 5 -

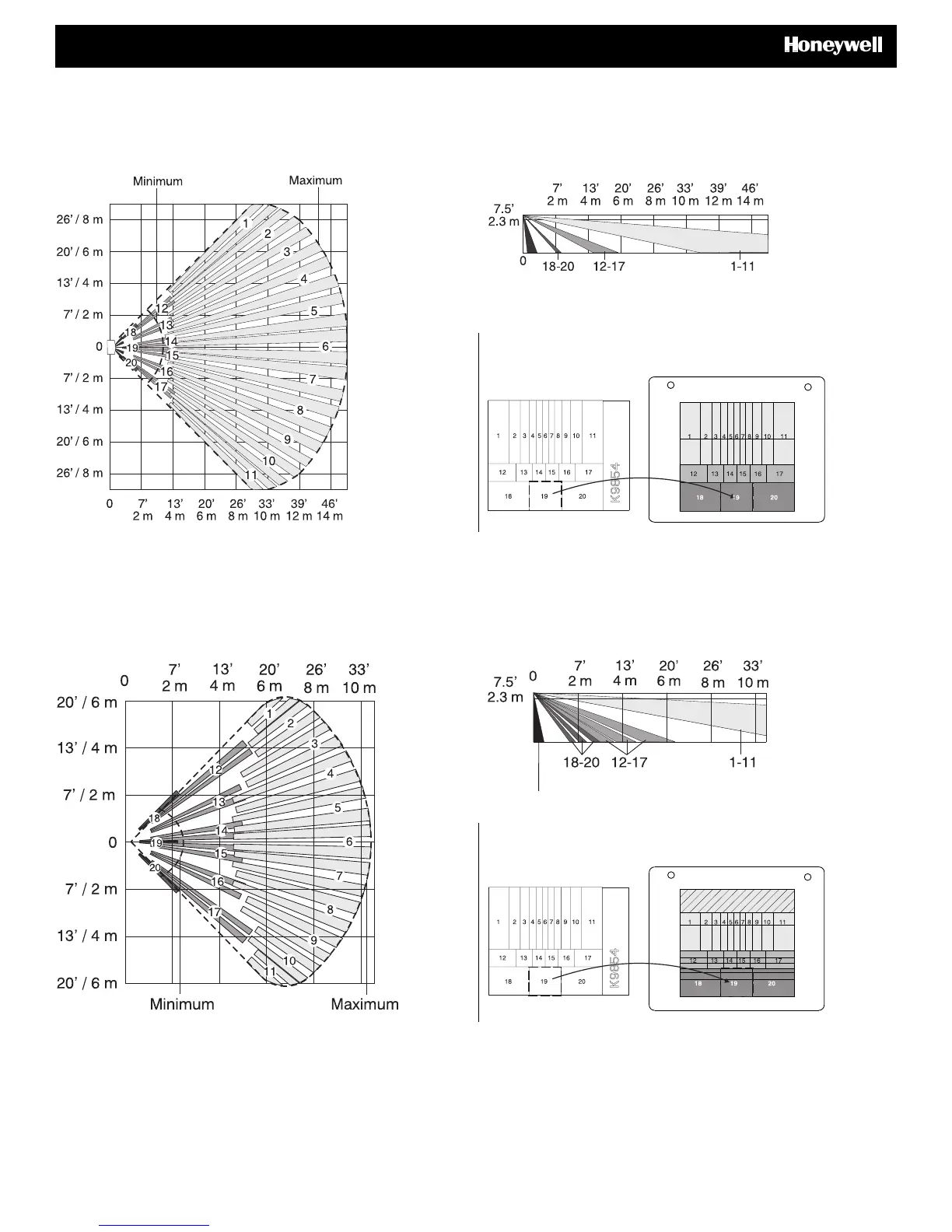

DETECTION PATTERNS / COUVERTURE DE DETECTION / PATRON DE DETECCIÓN
50’ / 15m Wide Angle Lens /
Wide Angle Lens / Wide Angle Lens /
(P/N 5-532-439-01 – Installed)
Top View / VUE DE DESSUS / VISTA DESDE ARRIBA
35’ / 11m Animal Immune Lens /
Animal Immune Lens / Animal Immune Lens
(P/N 5-532-489-01 – Included)
Top View / VUE DE DESSUS / VISTA DESDE ARRIBA
LENS MASKING
/
LENS MASKING / LENS MASKING /
5-532-439-01
TOP
50FT
LENS MASKI
NG
/
LENS MASKING / LENS MASKING /
5-532-489-01
TOP
25 / 35FT
Side View
/ VUE DE COTE / VISTA LATERAL
Side View
/ VUE DE COTE / VISTA LATERAL
