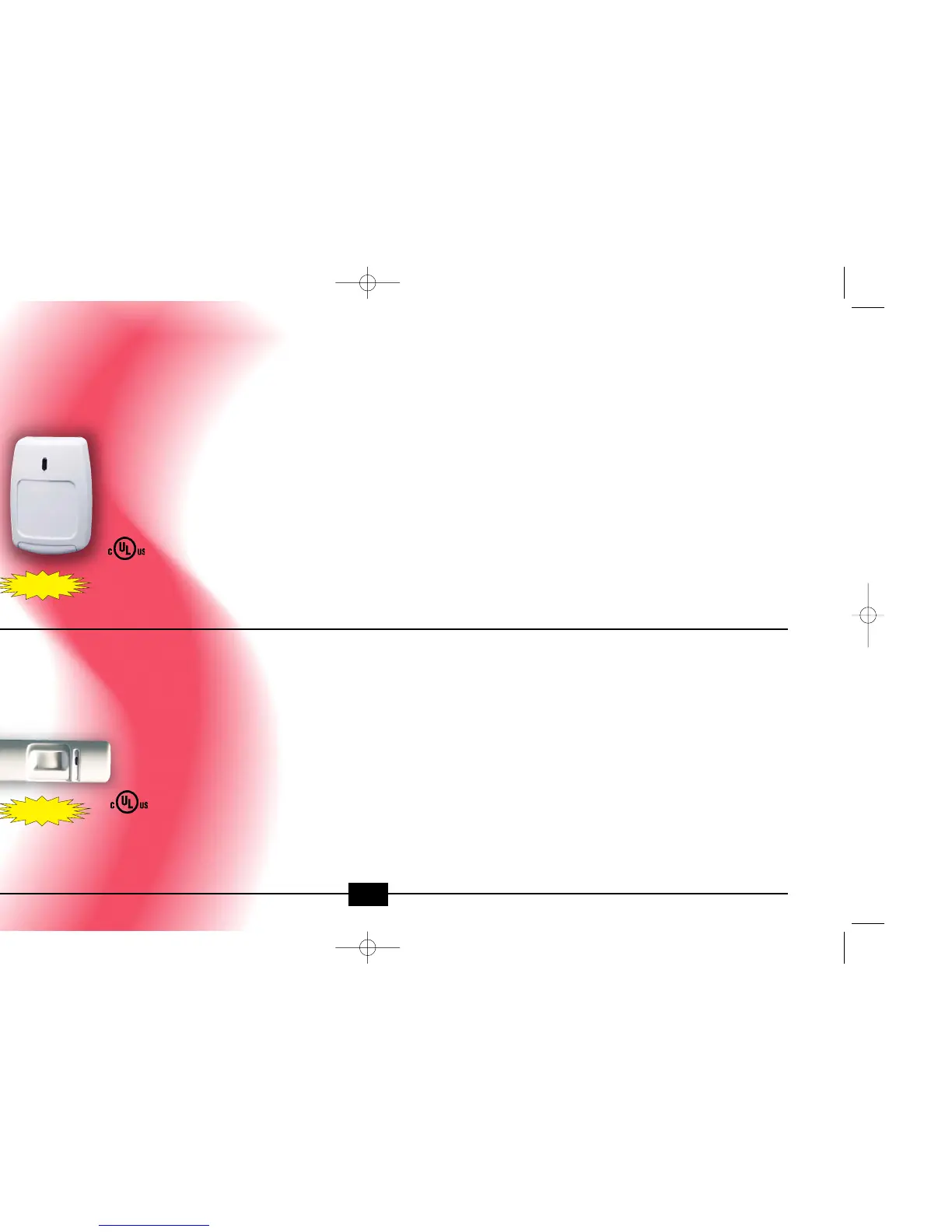

IS-215T
Entry Level PIR
“Basic space protection at
an economical price.”
Features
• Selectable pulse count
• Uniform Sensitivity Optics
• Patented lookdown mirror
• Zero Clearance black bug guard
• Tamper switch
Accessories
• Swivel Bracket - SMB10
• Ceiling Bracket - SMB10C
• Tampered Swivel Bracket - SMB10T
Specifications:
• Range: 40’ x 40’
• Detectable walk rate: 0.5’ - 10’/sec
• Signal Proc.: High and low sensitivity
• Alarm relay: Form A
• Input voltage: 10-14VDC
• Standby current: 20mA
• Indicators: Red LED
• Operating temp: 14°F to 122°F
• Dimensions: 3.43”H x 2.44”W x 1.57”D
IS-310/IS-320
Request-To-Exit PIR
“Basic and fully-featured
RTEs for every access
control application.”
Features
• Adjustable relay time
• Micro-based signal processing
• Adjustable shutters provide precise
target area
• Advanced features on IS-320 include:
• Piezo sounder
• Door contact input
• Reader/keypad/keyswitch input
• Remote arming and sounder inputs
• Monitor Door and Fail Safe/Secure
modes
• Available in white or black
Specifications:
• Range: From 5.5’ x 2’ up to 8.4’ x 15.8’
depending on mounting height
• Mounting height: 7’ to 15’
• Detectable walk rate: 0.5’ - 10’/sec
• Signal Proc.: RTE and Security modes
• Temp comp: Advanced dual-slope
• Alarm relay: Form C
• Input voltage: 12-28 volts AC or DC
• Standby current: 35mA
• Indicators: Green (ready) LED
• Operating temp: 14°F to 122°F
• Dimensions: 7”L x 2”H x 2”D
Accessories
• IS-310WHTP - single gang trim plate for
IS-310/320 white
• IS-310BLTP - single gang trim plate for
IS-310/320 black
PIR Motion Sensors
3
New
New
IN04004 Sensor_Guide.qxd 7/19/05 12:29 PM Page 10
