Hold-Up Switches
17
269R

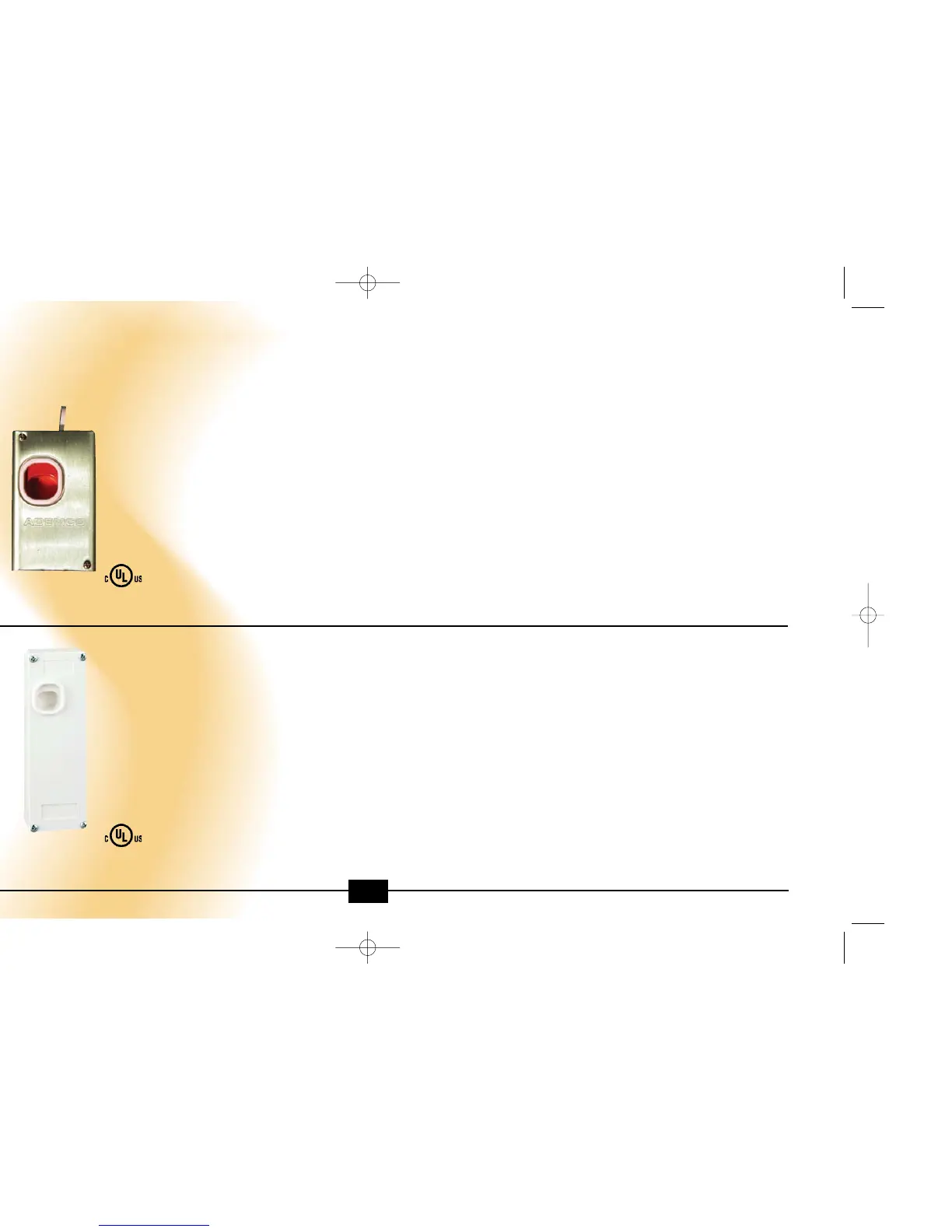

Hold-Up Switch
“All new design for totally
silent operation.”
Features
• Double-pole double-throw contacts for
multi-notifications.
• Switch design provides totally silent
operation
• Twin 45° screw terminals with EOL
resistor splicing terminal
• Adhesive pads for temporary
positioning prior to screw mounting
• Stainless steel housing (269R) and
plastic case (270R)
• Available for VPlex (polling loop)
as 269SN
Specifications:
• Switch type: Plunger type DPDT
• Switch action: Selectable latching or
momentary
• Switch rating: 0.2A @ 30VDC max.
Connections: four-position 45° screw
terminal block for each output side with
EOL resistor splicing terminals.
• Operating temp: 14°F to 140°F
• Dimensions: 3.5” L x 2.0” W x 1.25” D
5869
Wireless Hold-Up Switch
for 5800
“New wireless device for
commercial installations.”
Features
• Quick, easy wireless installation
• Latching switch type with re-set key
• Case front and back tamper protection
• Battery included
• Complete with 5800 wireless transmitter
Specifications:
• Switch type: One closure input upon
activation
• Battery: One CR123A or equivalent
• Battery life: Up to 10 years
• Operating temp: 32°F to 140°F
• Dimensions: 6”H x 2” W x 1.3” D
