2
NOTE: For installation on doors with pre-drilled holes skip to page 4.

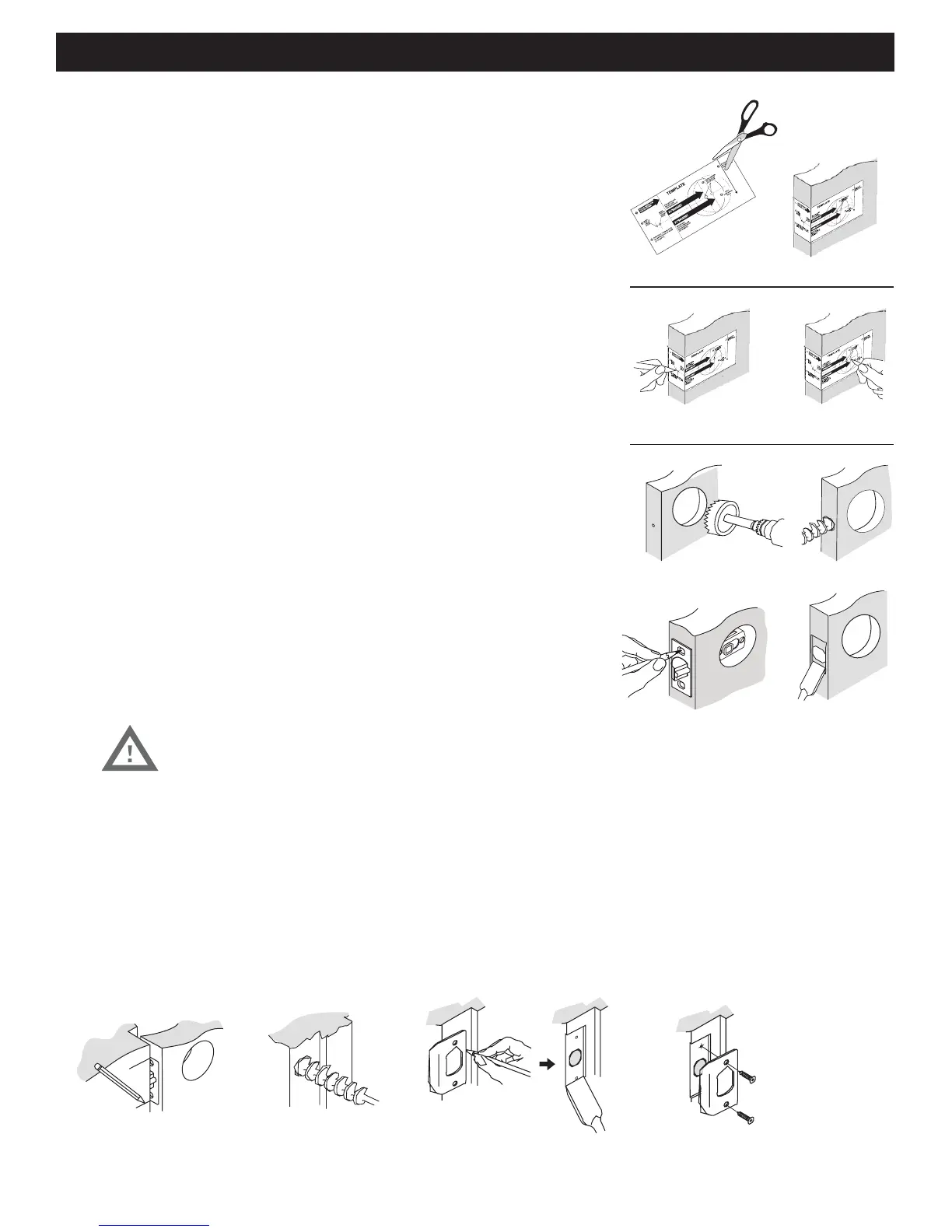

1. TEMPLATE
(Figure 1a).
b. Fold template and place on door 36” (915mm) from
the ground as marked (Figure 1b).
2. MARK THE DOOR FOR DRILLING
b. Mark center hole on door edge through guide on
template for 1” (25mm) latch bolt (Figure 2a).
a. Mark center hole on door face through guide on
backset (Figure 2b).
3. DRILL AND CHISEL DOOR
for lock set (Figure 3a).
Latch Assembly (Figure 3b).
c. Insert Latch Assembly in hole keeping it
parallel to face of door. Mark outline and remove latch
(Figure 3c).
d. Chisel 1/8” (3mm) deep or until latch face is flush
with door edge (Figure 3d).
4. MARK AND DRILL DOOR JAMB
a. Mark center hole on edge of jamb even with the center of the Latch Bolt on door edge. (Figure 4a).
d. Chisel 1/8” (3mm) deep for Strike Plate or until flush (Figure 4d).
e. Install Strike Plate using two 3/4” (19mm) screws provided (Figure 4e).
Figure 4a Figure 4b
Figure 4c Figure 4e
Figure 4d
NOTE: For Drive in Latch, drill hole size indicated on
template and press until it is flush with door edge.
Figure 1a
Figure 2a Figure 2b
Figure 3a
Figure 3c
Figure 1b
Figure 3b
Figure 3d
PREPARE DOOR AND JAMB
