5
NOTE: Tailpiece must be
positioned vertically
NOTE: Lock and unlock using Interior Knob to see if
the latch is opening and closing easily.
INSTALLING INTERIOR ASSEMBLY

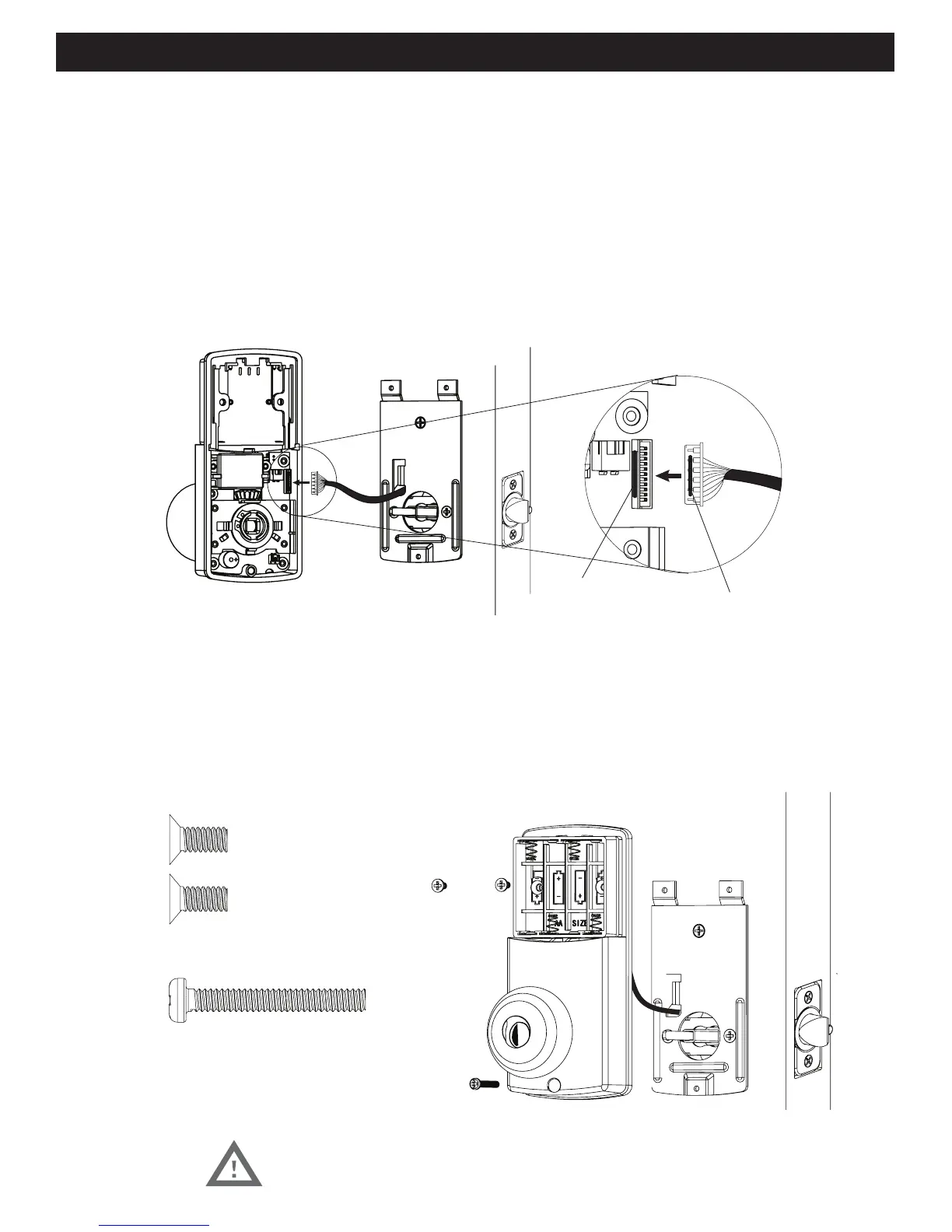

9. ATTACH THE CONTROL WIRE TO THE INTERIOR ASSEMBLY
a. Use care to attach the Control Wire male plug to the Interior Assembly female socket connector (Figure 9a).
 
 
(Figure 9c).
 
connector (Figure 9d).
10. ATTACH THE INTERIOR ASSEMBLY TO DOOR
 
b. Using two 5/16” (8mm) screws and one 1” (25mm) screw, attach the Interior Assembly to the Mounting Plate.
DO NOT OVER TIGHTEN SCREWS
5/16” (8mm) screws
1” (25mm) screw

Figure 9a-d
Interior Wire
Connect
Plug
