14
APT4000PH
Typical wirings pH
Temperature
probe
Combination
pH
electrode

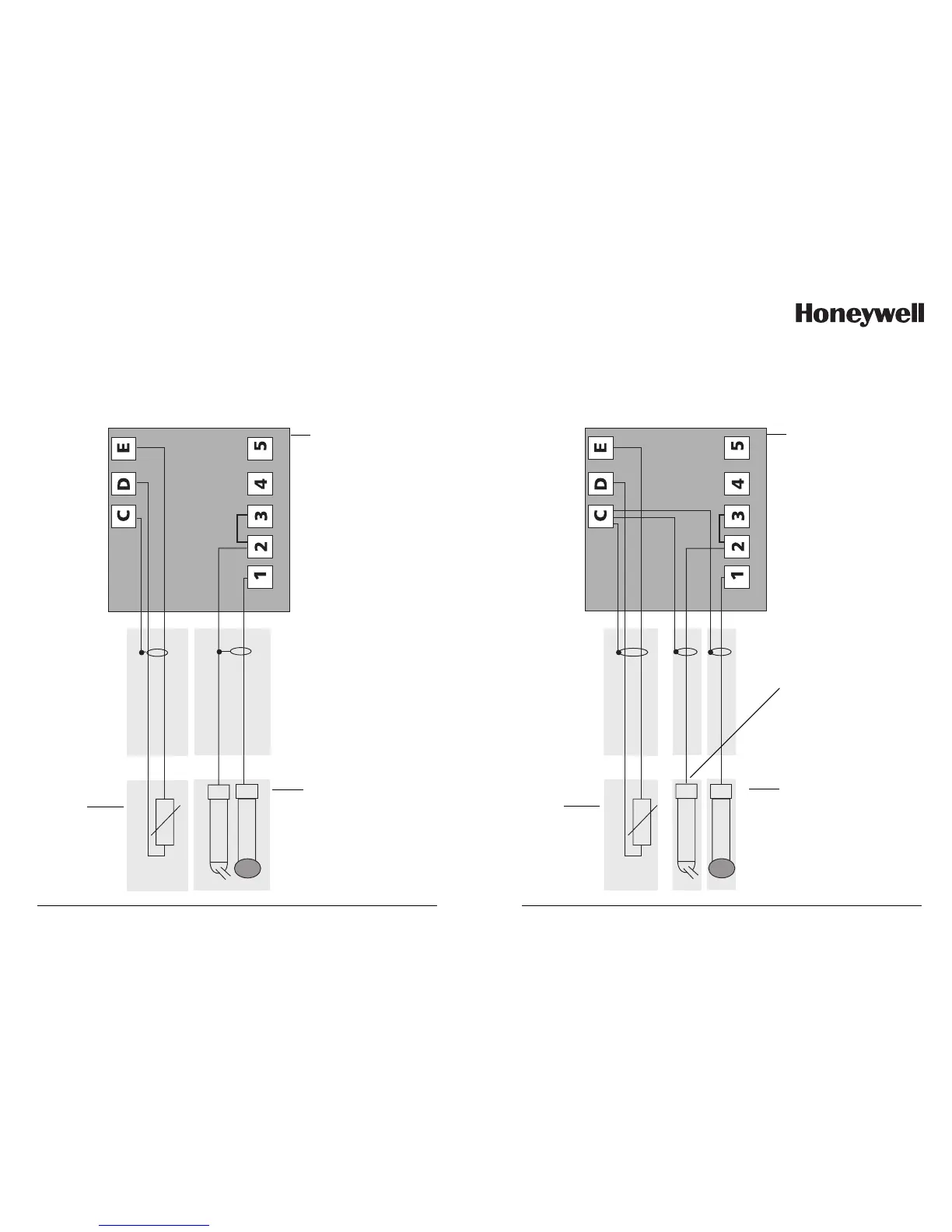

Example 1:
pH measurement with monitoring of glass electrode
Sensor connections
APT4000PH
15
Temperature
probe
Glass
electrode
Example 2:
pH measurement with monitoring of glass electrode and reference electrode
Sensor connections
APT4000PH
Reference
electrode
