BENDIX/KING
KAP 140
Page 3--19
Revision 2, Dec/2002
CS:15574F02

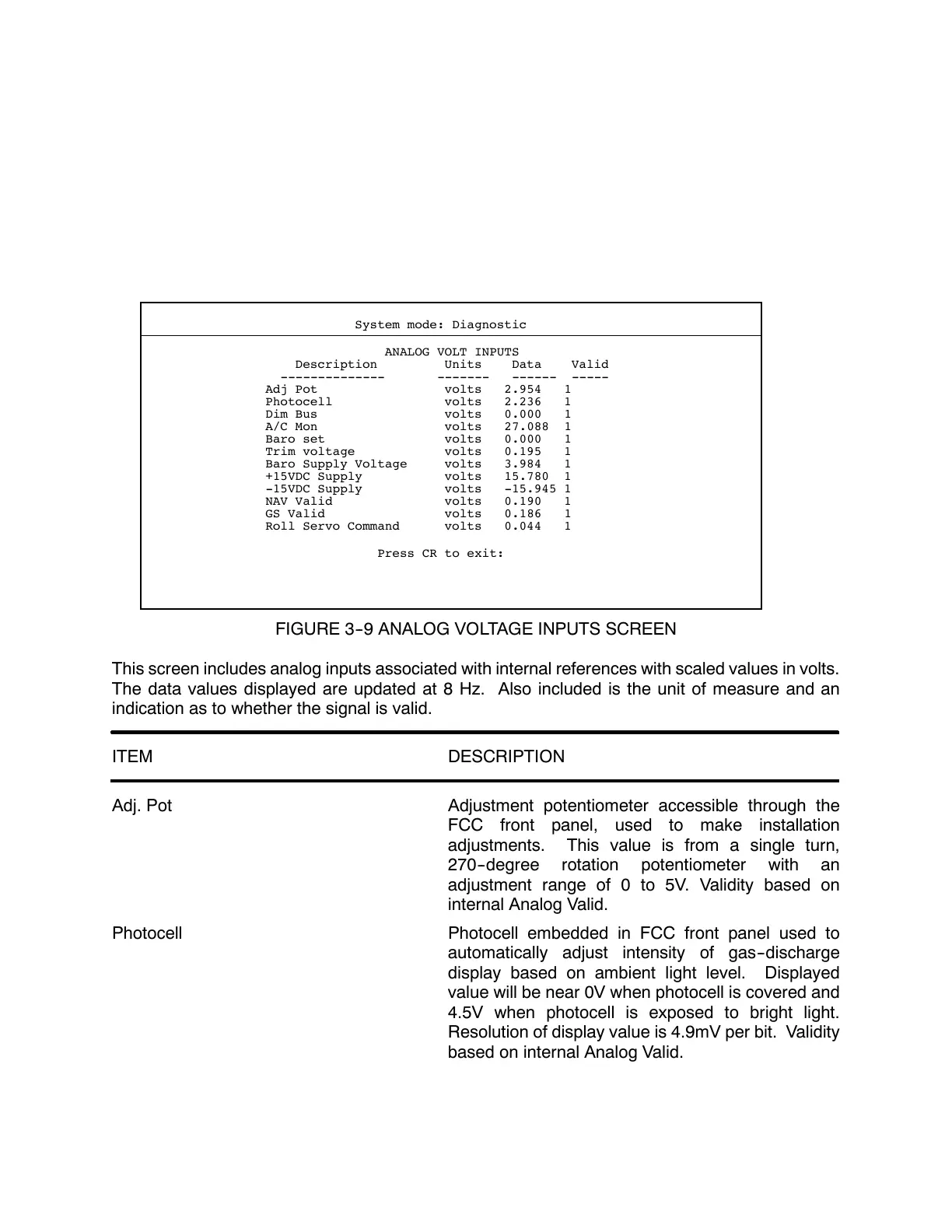

3.3.8 ANALOG VOLTAGE INPUTS SCREEN
Pressing ‘I’ when the Diagnostics Menu screen is displayed will cause the Analog Inputs screen,
similar to Figure 3--9, to be displayed. Pressing ‘ENTER’ when this screen is displayed returns
the user to the Diagnostics Menu screen.
System mode: Diagnostic
ANALOG VOLT INPUTS
Description Units Data Valid
-------------- ------- ------ -----
Adj Pot volts 2.954 1
Photocell volts 2.236 1
Dim Bus volts 0.000 1
A/C Mon volts 27.088 1
Baro set volts 0.000 1
Trim voltage volts 0.195 1
Baro Supply Voltage volts 3.984 1
+15VDC Supply volts 15.780 1
-15VDC Supply volts -15.945 1
NAV Valid volts 0.190 1
GS Valid volts 0.186 1
Roll Servo Command volts 0.044 1
Press CR to exit:
FIGURE 3--9 ANALOG VOLTAGE INPUTS SCREEN
This screen includes analog inputs associated with internal references with scaled values in volts.
The data values displayed are updated at 8 Hz. Also included is the unit of measure and an
indication as to whether the signal is valid.
ITEM DESCRIPTION
Adj. Pot Adjustment potentiometer accessible through the
FCC front panel, used to make installation
adjustments. This value is from a single turn,
270--degree rotation potentiometer with an
adjustment range of 0 to 5V. Validity based on
internal Analog Valid.
Photocell Photocell embedded in FCC front panel used to
automatically adjust intensity of gas--discharge
display based on ambient light level. Displayed
value will be near 0V when photocell is covered and
4.5V when photocell is exposed to bright light.
Resolution of display value is 4.9mV per bit. Validity
based on internal Analog Valid.
