Honeywell C6097A User Manual

C6097 · Edition 01.24
EN-4
7 MAINTENANCE
In order to ensure smooth operation, check the
tightness and function of the pressure switch every
year, or every six months if operated with biogas.
➔ A function check can be carried out in case of
falling pressure monitoring, e.g. with the PIA.
➔ After carrying out the maintenance work, check
for tightness, see page 3 (6 Tightness test).

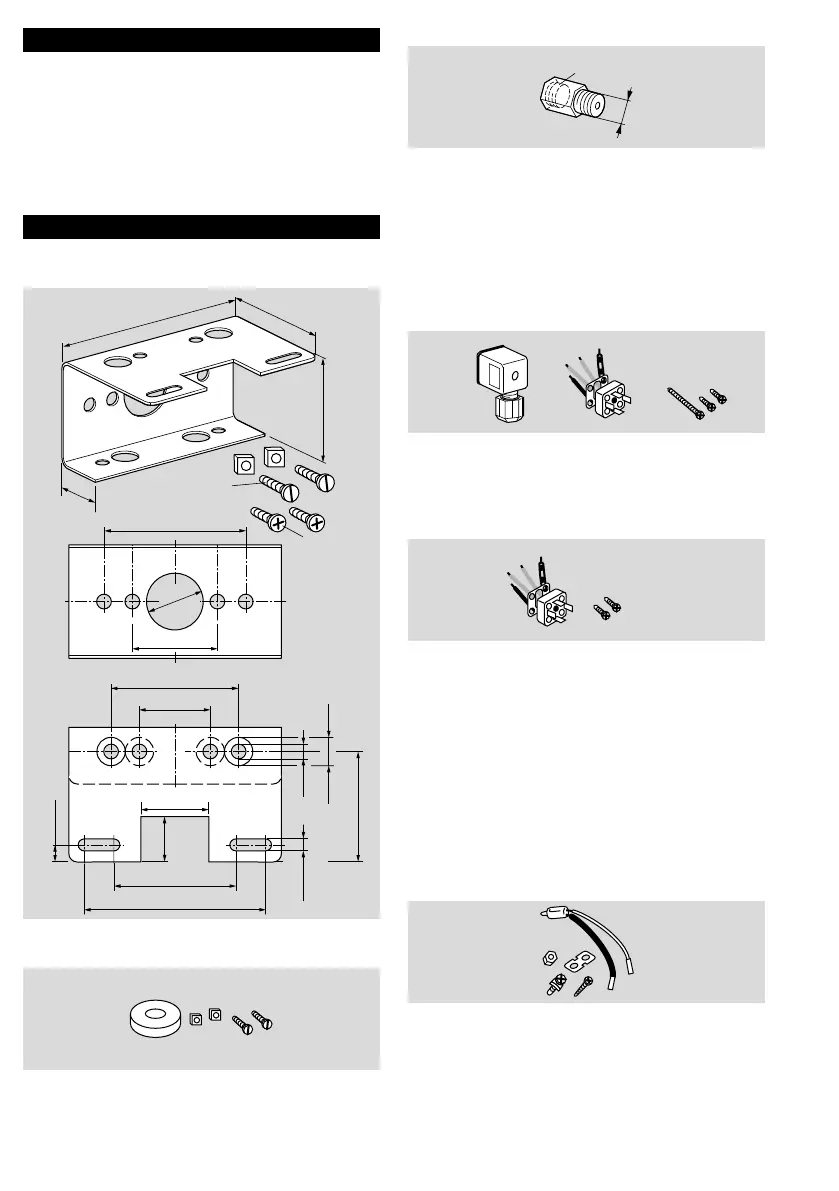

8 ACCESSORIES
8.1 Fastening set with screws, U-shape brack-
et
M4 x 10
M4 x 12
50 (1.97")
47,5 (1.87")
75 (2.95")
30 (1.18")
20
(0.79")
25 (0.98")
45 (1.77")
20
(0.79")
24 (0.94")
43
-0,3
(1.69")
64 (2.52")
40 (1.57")
6 (0.24")
16
(0.63")
39 (1.53")
4,20
+0,1
(0.17")
5,2
(0.2")
10
(0.4")
Order No.: 32003042-003/U.
8.2 Connecting set
For monitoring a minimum and maximum inlet
pressure with two pressure switches attached to
one another.
Order No.: 32003043-003/U.
8.3 Restrictor orifice
R
¼
Rp
¼
For CE certified pressure switches.
In the case of high pressure fluctuations, we recom-
mend using a restrictor orifice (contains non-ferrous
metals).
Hole diameter 0.2mm, Order No.: 32003051-
003/U,
Hole diameter 0.3mm, Order No.: 32003052-
003/U.
8.4 Standard coupler plug set
For CE certified pressure switches,
Order No.: 32003053-003/U.
For FM, UL certified pressure switches,
Order No.: 32003054-003/U.
8.5 Standard coupler plug
For CE certified pressure switches,
Order No.: 32003055-003/U.
For FM, UL certified pressure switches,
Order No.: 32003056-003/U.
8.6 Pilot lamp, red/blue
Pilot lamp, red:
110/120V AC, I = 1.2mA, Order No.: 32003044-
003/U.
230V AC, I = 0.6mA, Order No.: 32003046-003/U.
Pilot lamp, blue:
110/120V AC, I = 1.2mA, Order No.: 32003045-
003/U.
230V AC, I = 0.6mA, Order No.: 32003047-003/U.
