Honeywell CK75 - EX25 Minimum Reading Distance

75 Series Mobile Computer User Guide 123
EX25 Minimum Reading Distance
Minimum reading distances are measured in the dark (0 lux). The following
graphic does not include the 0.24 cm (0.09 in) setback for the CK75.

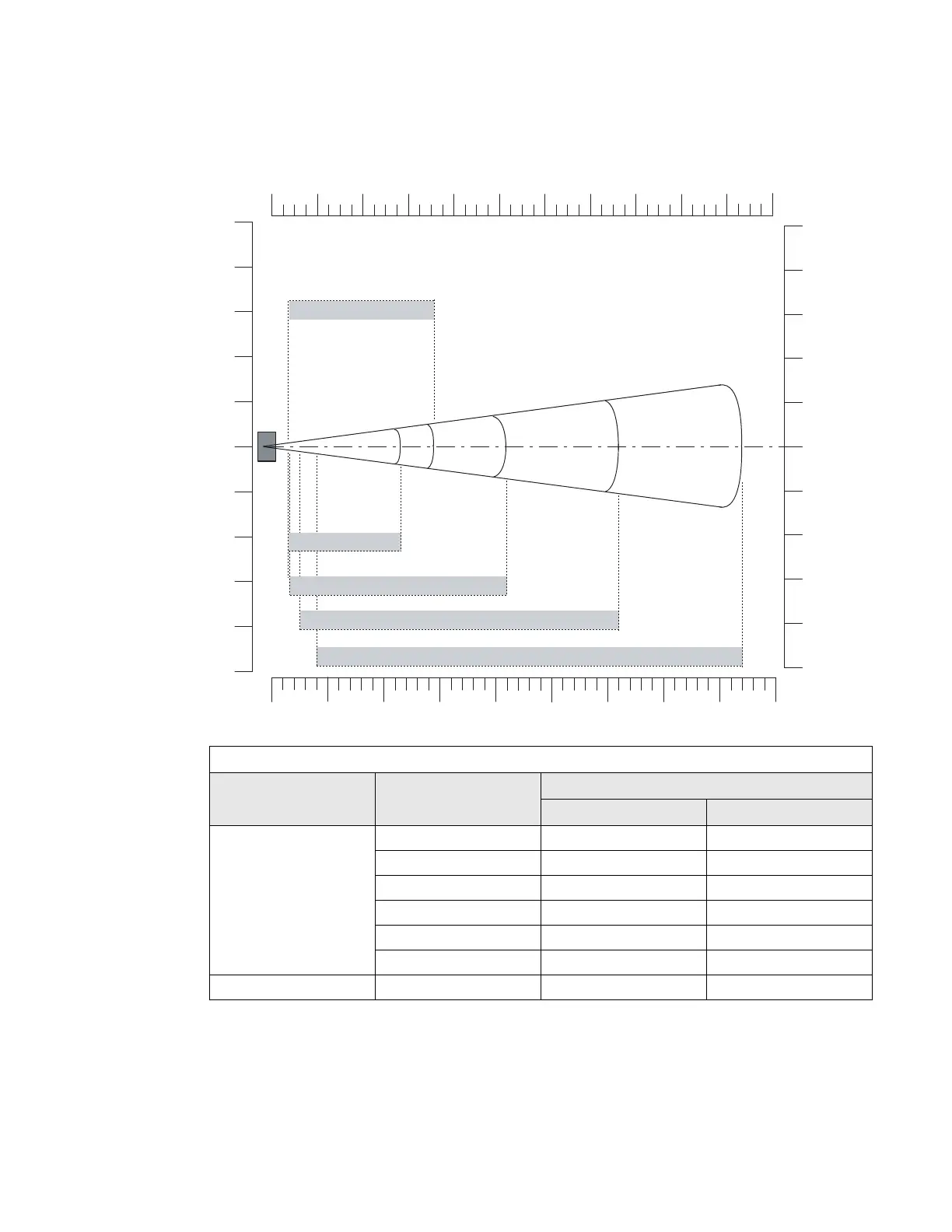

EX25 Minimum Reading Distances with 0.24 cm (0.09 in) Setback
Symbology Density
Distance
Minimum Maximum
Code 39 0.08 mm (3 mils) 15 cm (5.91 in) 35 cm (13.78 in)
0.1 mm (2.8 mils) 15 cm (5.91 in) 45 cm (17.72 in)
0.25 mm (10 mils) 15 cm (5.91 in) 115 cm (45.28 in)
0.5 mm (20 mils) 16 cm (6.30 in) 210 cm (82.68 in)
1 mm (40 mils) 25 cm (9.84 in) 310 cm (122.05 in)
1.3 mm (51 mils) 40 cm (15.75 in) 310 cm (122.05 in)
EAN 100% 0.33 mm (13 mils) 15 cm (5.91 in) 145 cm (57.09 in)
