10.0 CLASS 320 METER
OPERATING MODES
The Honeywell Class 320 meter is used to monitor electric power usage of individual
loads after the utility meter and store kW and kVAR data for automatic meter reading.

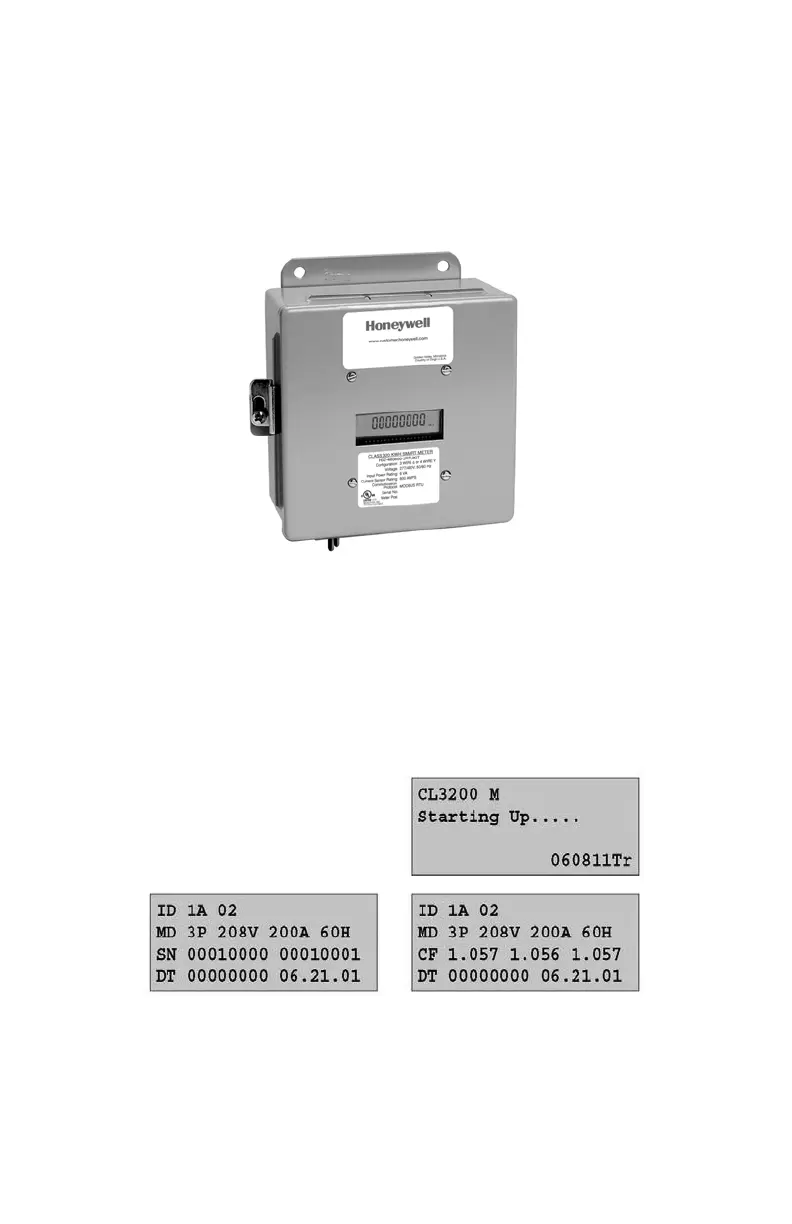

Fig. 24. Class 320 Stand Alone Meter with 4 Line Display.
10.1 Start Up Screens
When the meter starts up, the screen displays firmware image type.
CL320 and M, After approximately 4 seconds, the screen displays active
configurations: EZ7 ID, Meter configurations – phase, voltage, amperage, Calibration
factors or serial number, Date/time and firmware version.
Fig. 25. Start Up Screens.
*Note: Single Phase option will state: MD 2P 208V 200A 60H
*
*
