10.2 Normal Mode Display Screens
The Class 320 meter features seven Normal Mode Display Screens for monitoring the
meter. Each screen is displayed for 5 second intervals, before scrolling onto the next
screen. You can “lock” the scrolling display on any one of the seven screens. This will
be explained in detail on following pages.
Explanations of the Normal Mode Display Screens are as follows:

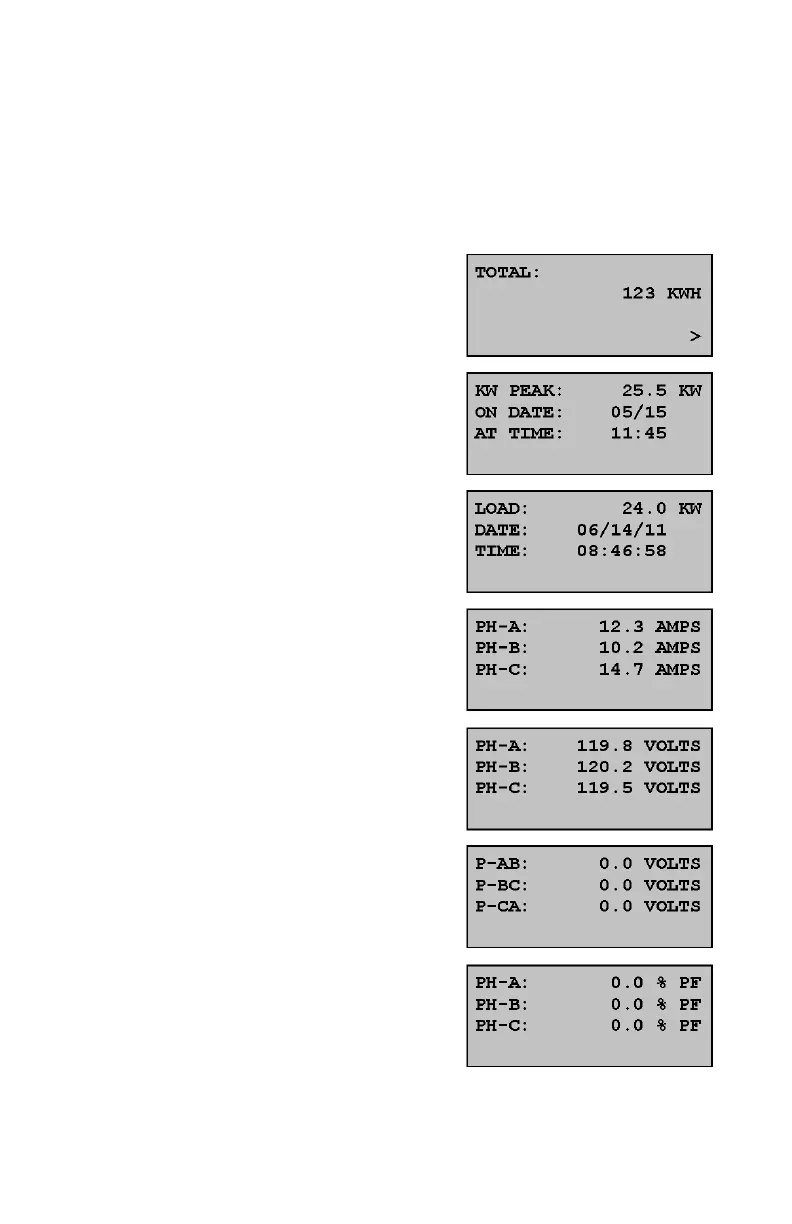

Fig. 26. Class 320 Meter Display Screens.
Screen 1: Total Kilowatt-Hours (kWh)
Delivered.
Screen 2: Peak Demand (kW)
with Date & Time Stamp
Screen 3: Actual Load (kW)
with Present Time
Screen 4: Average Current (amps)
Per Phase.
Note: Single Phase option will only state:
PH-A and PH-B.
Screen 5: Average Voltage (volts)
Per Phase.
Note: Single Phase option will only state:
PH-A and PH-B.
Screen 6: Average Voltage (volts)
Phase to Phase.
Note: Single Phase option will only state:
P-AB and P-BA.
Screen 7: Power Factor (pf)
Per Phase.
Note: Single Phase option will only state:
PH-A and PH-B.
