Honeywell DBC2000 Series - SUB BASE AND MODULE INSTALLATION; Fixing the Sub Base; WIRING THE BURNER CONTROLLER; Relay Module Bottom Terminals

ENS7003R0 KO06 2010

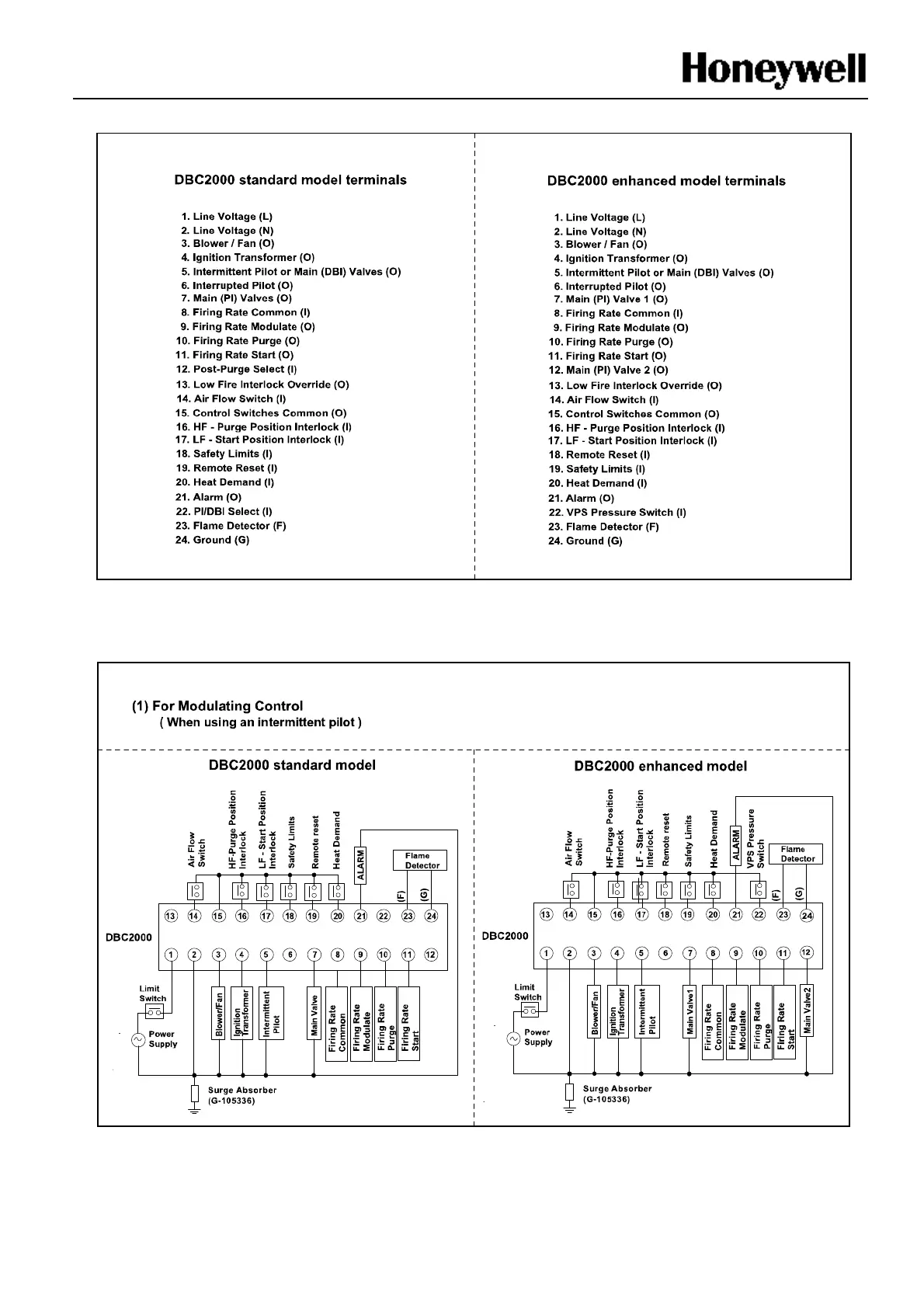

Fig. 3-1: Terminal layout
Fig. 3-2: Example1 of wiring to external equipment
