2 - 9
Rear Speaker
The integrated rear speaker sounds audio signals as you scan bar code labels and enter data.
The integrated speaker also supports playback of wave and MP3 files, software mixer, and
speakerphone for WWAN/GSM audio. The operating frequency range is 600-3000Hz at
>90dB.
Scan Trigger (99GX Only)
The back panel of the 99GX contains an integrated, handle for a more ergonomic grip in scan
intensive applications. Press the scan trigger to activate the imager/scanner.
Stylus Slot
The stylus is used to operate the touch panel. The back panel of the terminal features a storage
slot to hold the stylus when not in use. The stylus features a special tip for added accuracy and
ease of use.
Side Panels: 99EX and 99GX
The left and the right side panels of the Dolphin contain different features.
Note: Your Dolphin model may differ from the models illustrated; however, the features noted are standard for all
99EX and 99GX models unless otherwise indicated.
Left Side
Left Button
By default, the Left Button triggers the scanner/imager. You can reassign the button to launch
applications or execute commands. For additional information, see Changing Button
Assignments on page 6-4.
IrDA Port
The IrDA port enables infrared communication. The maximum data transfer speed is 115 kbps.
For more information about using this port, see Using the IrDA Port on page 7-2.
Note: The infrared LED aperture is located behind the IrDA Port window.

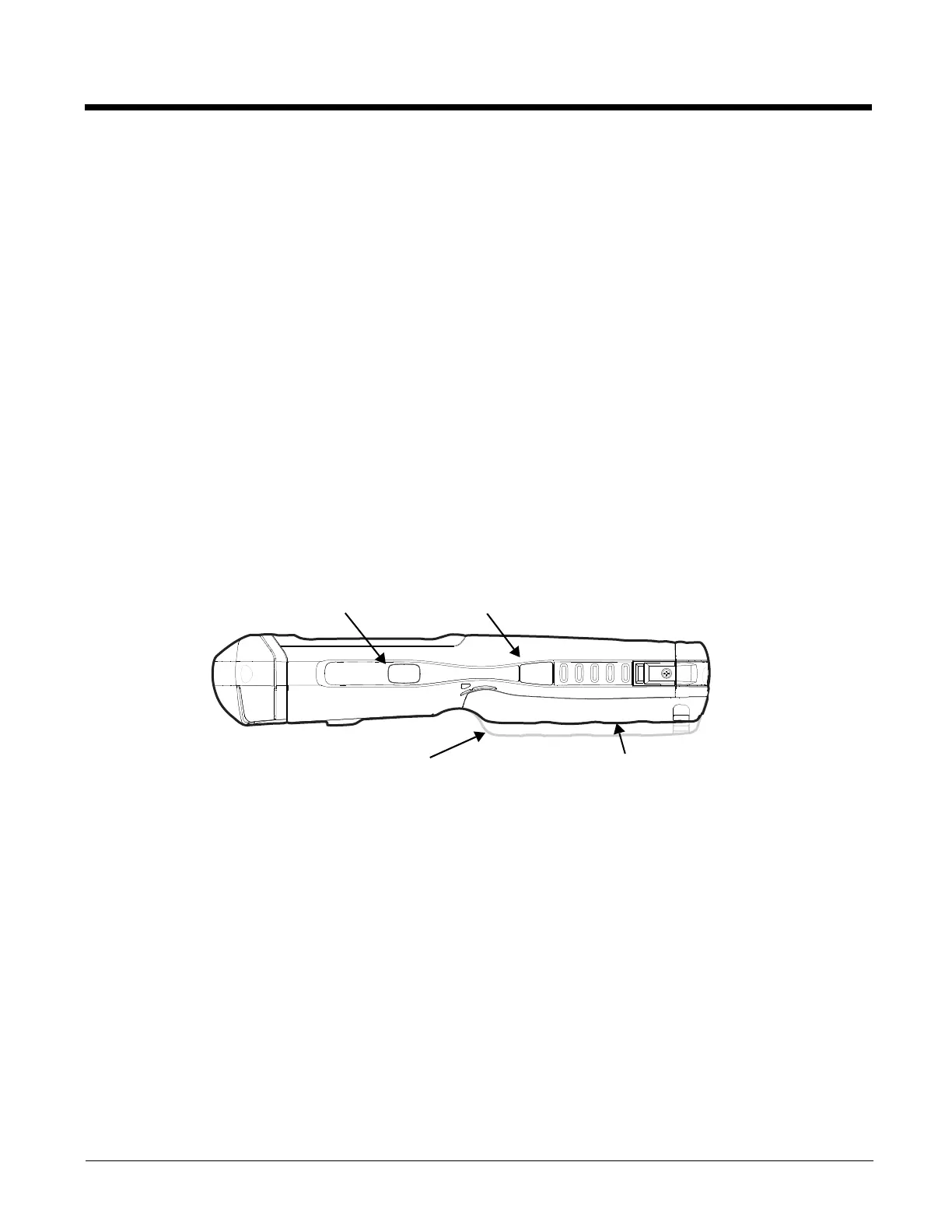

Left Button
IrDA Port
Extended Li-ion Battery Door
Standard Li-poly Battery Door
