32

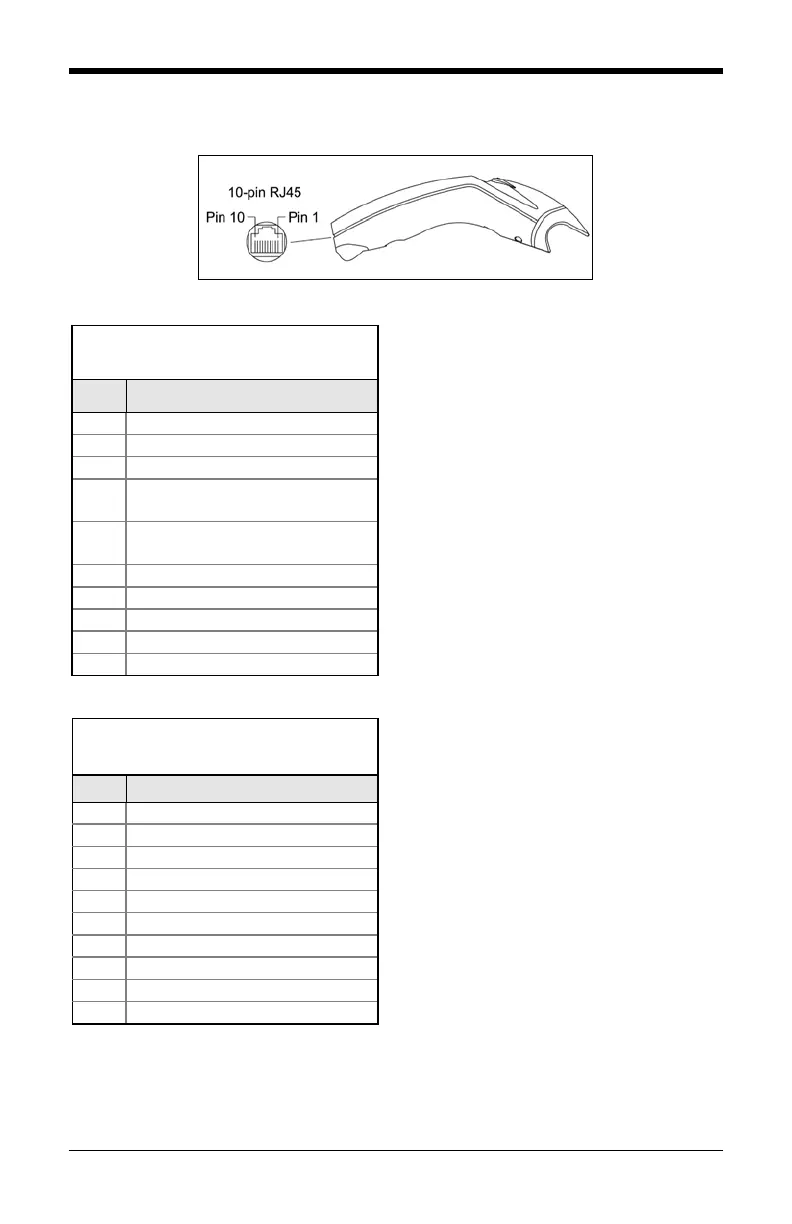

Scanner Pinout Connections
Figure 15.
MS5145-00 Laser Emulation
Pin Function
1
Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
Flip Sense/Start of Scan
Output
5
Proximity Detect/
Trigger Emulation Output
6
Scan/Laser Enable Input
7
Reserved
8
Data Out
9
+5VDC
10
Shield Ground
MS5145 Full Speed (-40) and
Low Speed (-38) USB
Pin Function
1
Ground
2
N/C
3
N/C
4
N/C
5
N/C
6
D+
7
PC +5V/V_USB
8
D-
9
N/C
10
Drain Wire
