Scanner and Cable Terminations
Scanner Pinout Connections
The MS5145 scanner interfaces terminate to a 10-pin modular jack. The serial
number label indicates the interface enabled when the scanner is shipped from
the factory.

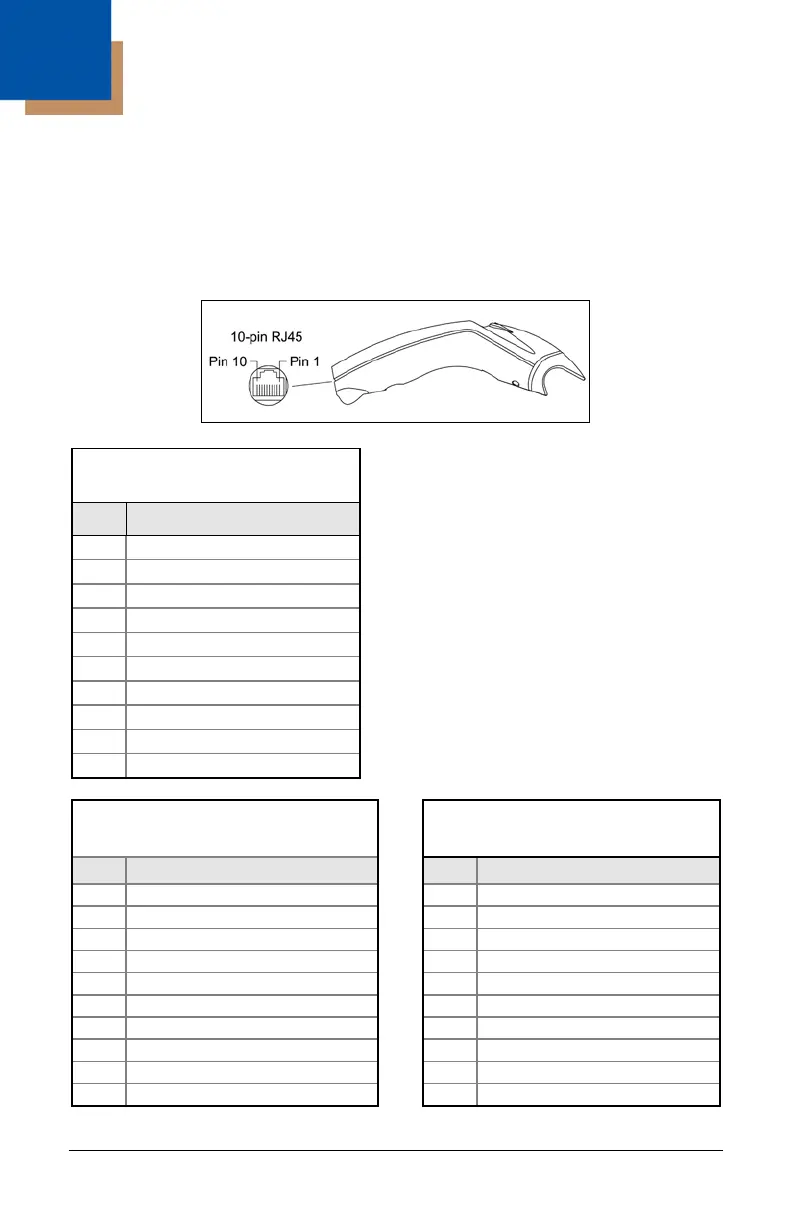

Figure 14.
MS5145-41 RS232 and
Light Pen Emulation
Pin Function
1
Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
RTS Output
5
CTS Input
6 DTR Input/LTPN Source
7 Reserved
8 LTPN Data
9
+5VDC
10
Shield Ground
MS5145-47 Keyboard Wedge
and Stand-Alone Keyboard
MS5145-11 RS485
Pin Function Pin Function
1
Ground
1
Ground
2
TTL RS232 Transmit Output
2
RS232 Transmit Output
3
TTL RS232 Receive Input
3
RS232 Receive Input
4
PC Data
4
RTS Output
5
PC Clock
5
CTS Input
6
KB Clock
6
DTR Input
7
PC +5V
7
IBM B-Transmit
8
KB Data
8
IBM A+ Receive
9
+5VDC
9
+5VDC
10
Shield Ground
10
Shield Ground
