Honeywell Eclipse MS5145 Quick Start Guide

Check Digits
The following selections allow you to specify whether the check digit
should be transmitted at the end of the scanned UPC-A or UPC-E
data or not.
CodeGate/Manual Activation (Voyager 9520/40,
VoyagerGS 9590)
Use the following programming codes to control CodeGate button/
trigger functions. Any time CodeGate is Active, you must push the
CodeGate button (on the top of the scanner) or press the trigger to
read a bar code. Whenever CodeGate is Inactive, the CodeGate
button/trigger does not need to be pressed. Bar codes are
automatically read when they are in the scanner’s field of view.

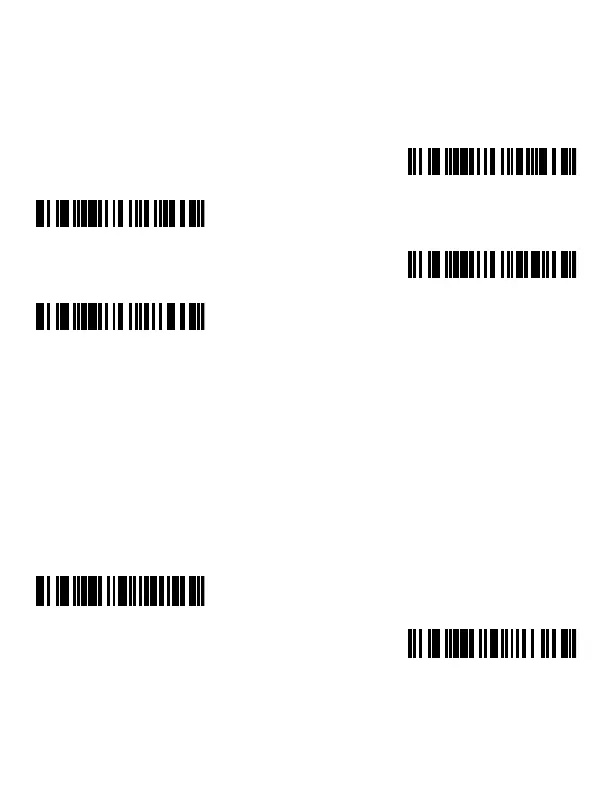

³107517
³107507
Don’t Transmit UPC-A
Check Digits
*Transmit UPC-A
Check Digits
³107516
³107506
*Don’t Transmit UPC-E
Check Digits
Transmit UPC-E Check
Digits
³118703
³118713
CodeGate Active Out
of Stand
CodeGate Inactive Out
of Stand

Honeywell Eclipse MS5145 Specifications

General

Scan Pattern	Single Line
Light Source	650 nm visible laser diode
Scan Speed	72 scan lines per second
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Weight	100 g (3.5 oz)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Drop Resistance	Designed to withstand 1.5 m (5 ft) drops
Scan Rate	72 scan lines per second
Decode Capability	1D barcodes
Electrical Specifications	Input Voltage: 5 VDC ± 0.25 V
Regulatory Compliance	CE, FCC, RoHS
