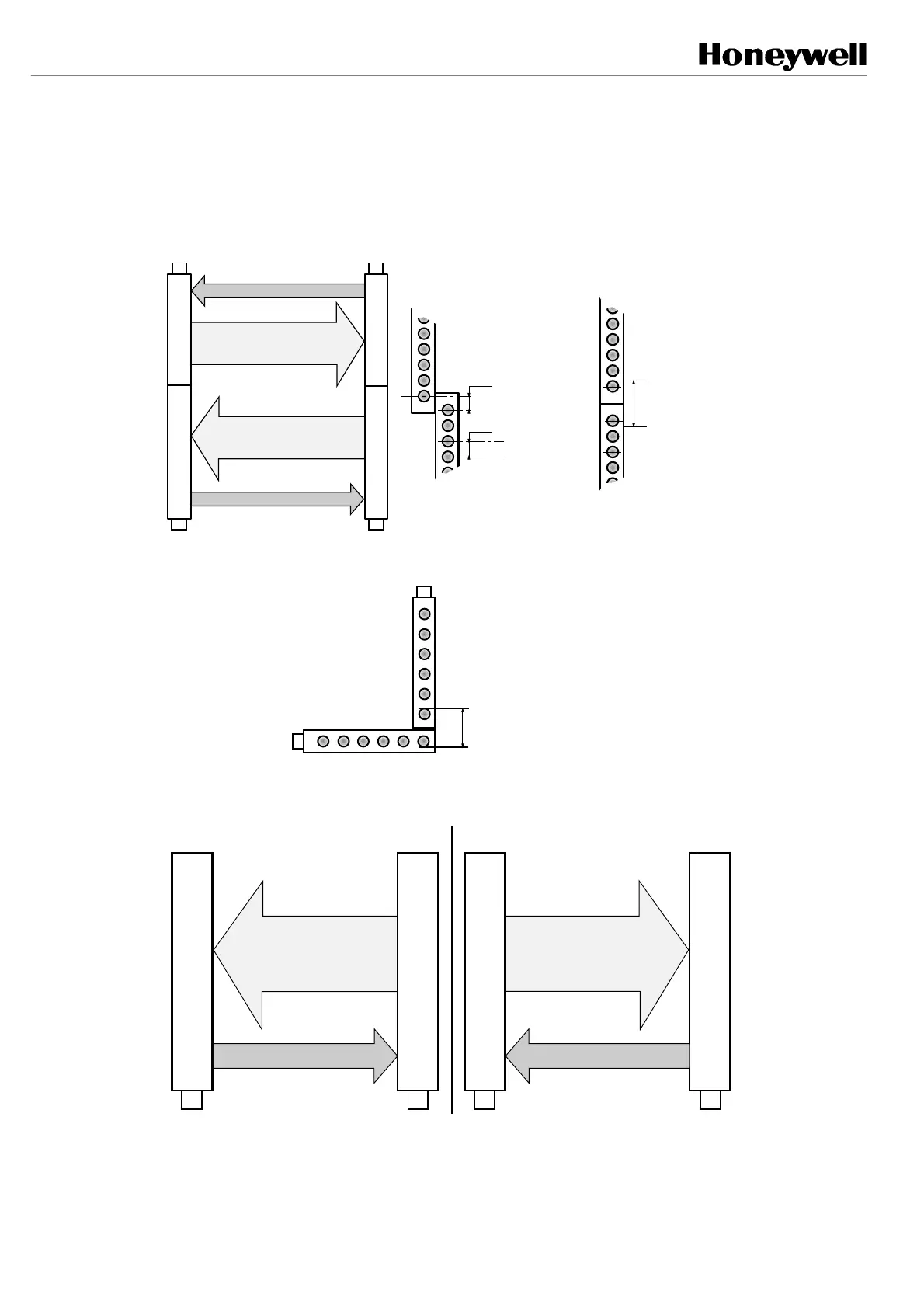

3.5 Grouping of several FF-SB14 safety barriers
To avoid the risk of possible malfunction of the barriers (interference between the synchro optical paths), it is
recommended to assemble them as follows:
• Linear assembly
emitter 1
beams
beams
synchro beam
re ceiver 1
25.4 mm
synchro beam
25.4 mm
resolution 56 mm
at this point
re ceiver 2
emitter 2
• Right-angled assembly
re ceiver 2
emitter 1
Resolution 60.5 mm
at this point
• Side by side assembly
beams
re ceiver 1
emitter 1
re ceiver 2
emitter 2
beams
synchro beam synchro beam
*
*Note: When a risk of possible malfunction due to mutual interferences between barrier is foreseeable. It is strongly
recommended to insert a screen between the light curtains.
