8.3 Changing a supply fuse
Necessary tools: 1 TORX T20 or ACX 20 screwdriver
Spare parts: see § 9-3
a) Unscrew the 4 screws of the cover plate that carries
the connector
Flat cable
Relay
Fuse
R
C
Transformer
Connector side

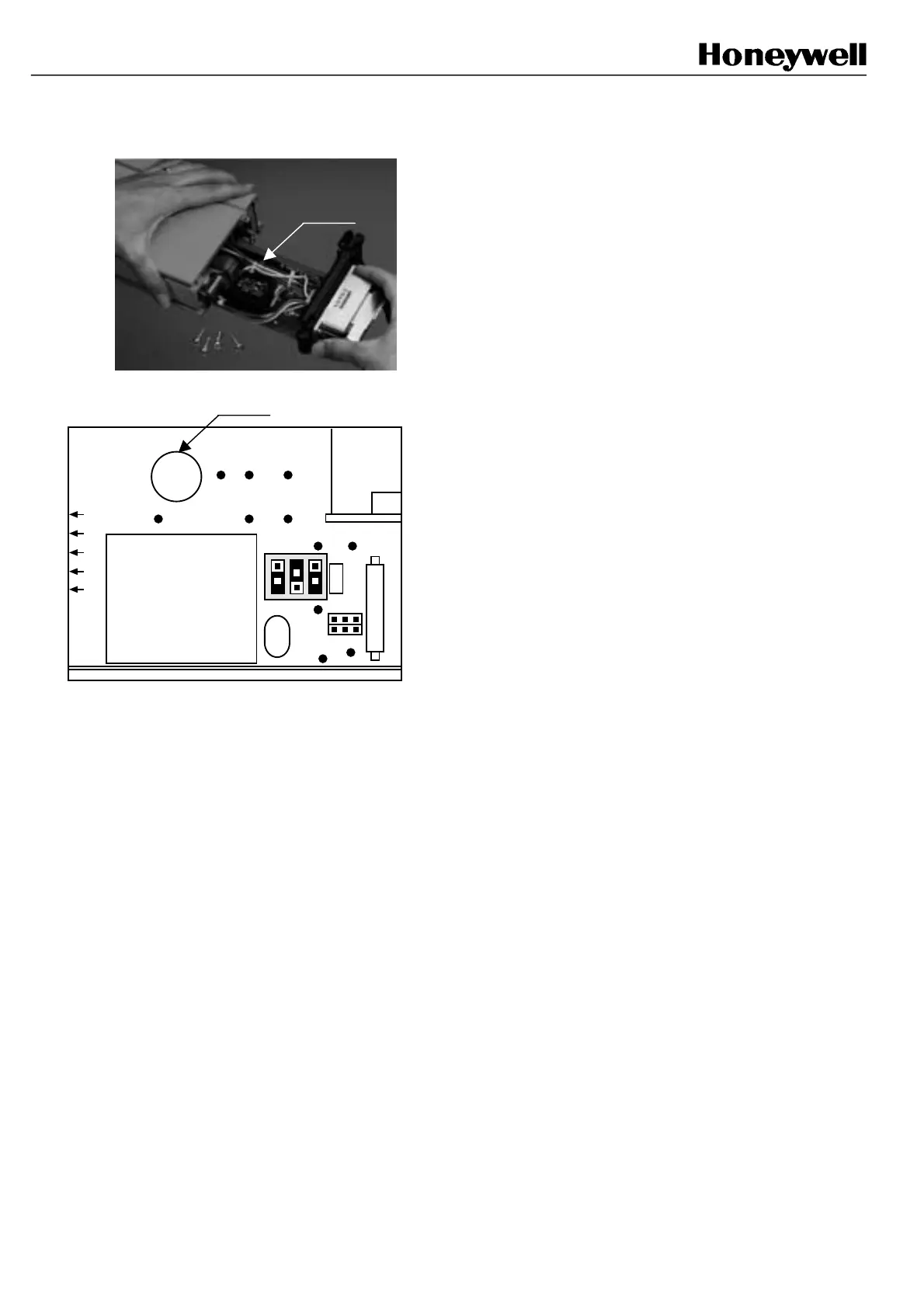

b) Remove the cover plate and the electronic board that
is fixed to it by letting the card sliding out until the fuse
(1) is exposed (fig. 8-3-1 and 8-3-2)
c) Change the fuse (See chapter 9), replace the card
and screw the cover plate.
Fig 8-3-2
Fig 8-3-1
(1)
(1)
