Section 6: Programming Requirements
This product uses the CAMWorks™ Software Program. Installers must be Gamewell-FCI Factory Certified to program this
product. For additional information on this product, contact the Gamewell-FCI Customer Support to schedule the Factory Certified
Training.

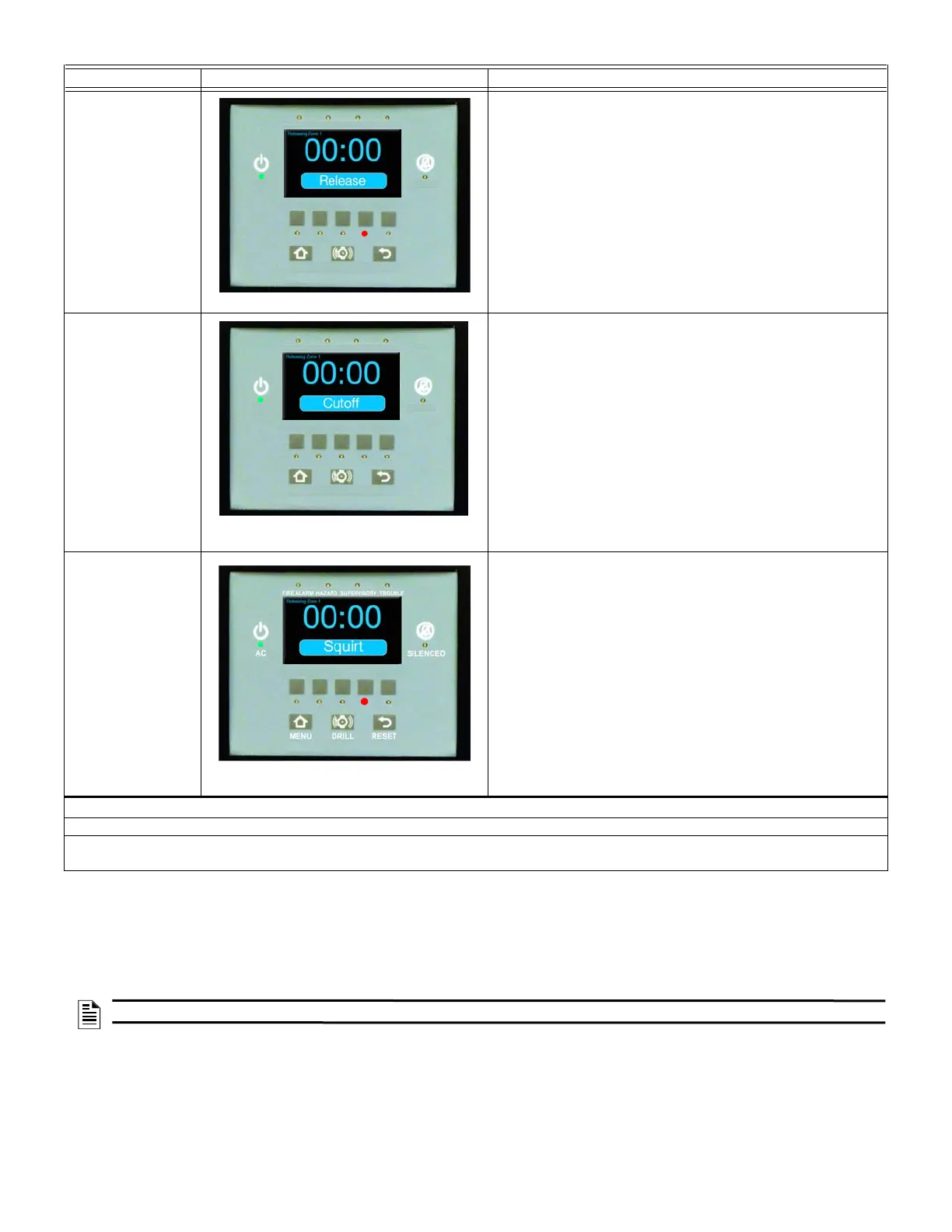

LEDs Display Description
Release
Figure 5.2.5 Release LED Activated
If the Releasing Zone is pre-programmed to use the Pre-
Release Timer, after the Pre Release time interval, the
following occurs.
• The Release LED lights steady RED.
• Release appears on the display.
• The system activates the Release LED.
At this stage, the following occurs:
• The releasing output activates to open the valve.
• The valve releases the extinguishing agent.
• After the Cutoff Timer expires (if configured), the
Release LED shuts off.
Cut Off
Figure 5.2.6 Cut Off LED Yellow
Activated
If the Releasing Zone is pre-programmed to use the Cutoff
Timer, after the Cutoff Timer interval, the following occurs:
• The system shuts off the solenoid.
• Cutoff appears on the display.
• All Releasing stage LEDs are OFF.
(See Note 1 in Table 5.2.1)
Squirt
Figure 5.2.7 Release LED Red
Activated
If a user presses a Squirt switch, the following occurs:
• The Release LED temporarily changes to steady RED.
• The releasing output is temporarily reactivated to open
the valve.
• The System releases the extinguishing agent.
After the Squirt condition shuts off, the following occurs:
• The Release LED turns off.
• The releasing output module closes the valves.
NOTES
Note 1: The Time Limit Cutoff delay may be programmed via CAMWorks.
Note 2: For additional information on how the Releasing application operates on the LCD-SLP, refer to the E3 Series Releasing
Application Supplement, P/N:LS10138-151GF-E.
NOTE: For information on the latest version of CAMWorks, see the Gamewell-FCI website, www.gamewell-fci-esd.com.
Table 5.2.1 LCD-SLP, Releasing Zone Screens
MENU DRILL RESET
AC
SILENCED
FIRE ALARM HAZARD SUPERVISORY TROUBLE
STANDBY PRE-ALRM P-RELEASE RELEASE ABORT
MENU DRILL RESET
AC
SILENCED
FIRE ALARM HAZARD SUPERVISORY TROUBLE
text
STANDBY PRE-ALRM P-RELEASE RELEASE ABORT
STANDBY PRE-ALRM P-RELEASE RELEASE SQUIRT
text
STANDBY PRE-ALRM P-RELEASE RELEASE ABORT
