2.8 LCD-SLP Installation in a Retrofit Cabinet Configuration
2.8.1 LCD-SLP Installed to a B-Slim Cabinet Outer Door
1. Insert the keyswitch to the LCD-E3 Mounting Plate. Insert and secure one nut, (3/4” x 24 THD HEX) as shown in Location 1 of
the figure below.
2. Attach the keyswitch cable to the key as shown in Location 2 of the figure below.
3. Mount the LCD-SLP keypad to the pins on the LCD-E3 Mounting Plate. Insert and secure eight, nuts (#6-32 HEX KEPS) into
the eight-hole mounting pattern as shown in Location 3 of the figure below.
4. Plug-in the keyswitch cable to the J6 jumper on the LCD-SLP keypad as shown in Location 4 of the figure below.
(For information on the location of the J6 jumper on the LCD-SLP panel, refer to Note 1 on the LCD-SLP Wiring Diagram in
Figure 3.2.1.1 and Figure 3.2.2.1).
5. Mount the LCD-E3 Mounting Plate to the outer door. Insert and secure four nuts (#6-32, HEX KEP) into the four-hole
mounting pattern as shown in Location 5 of the figure below.

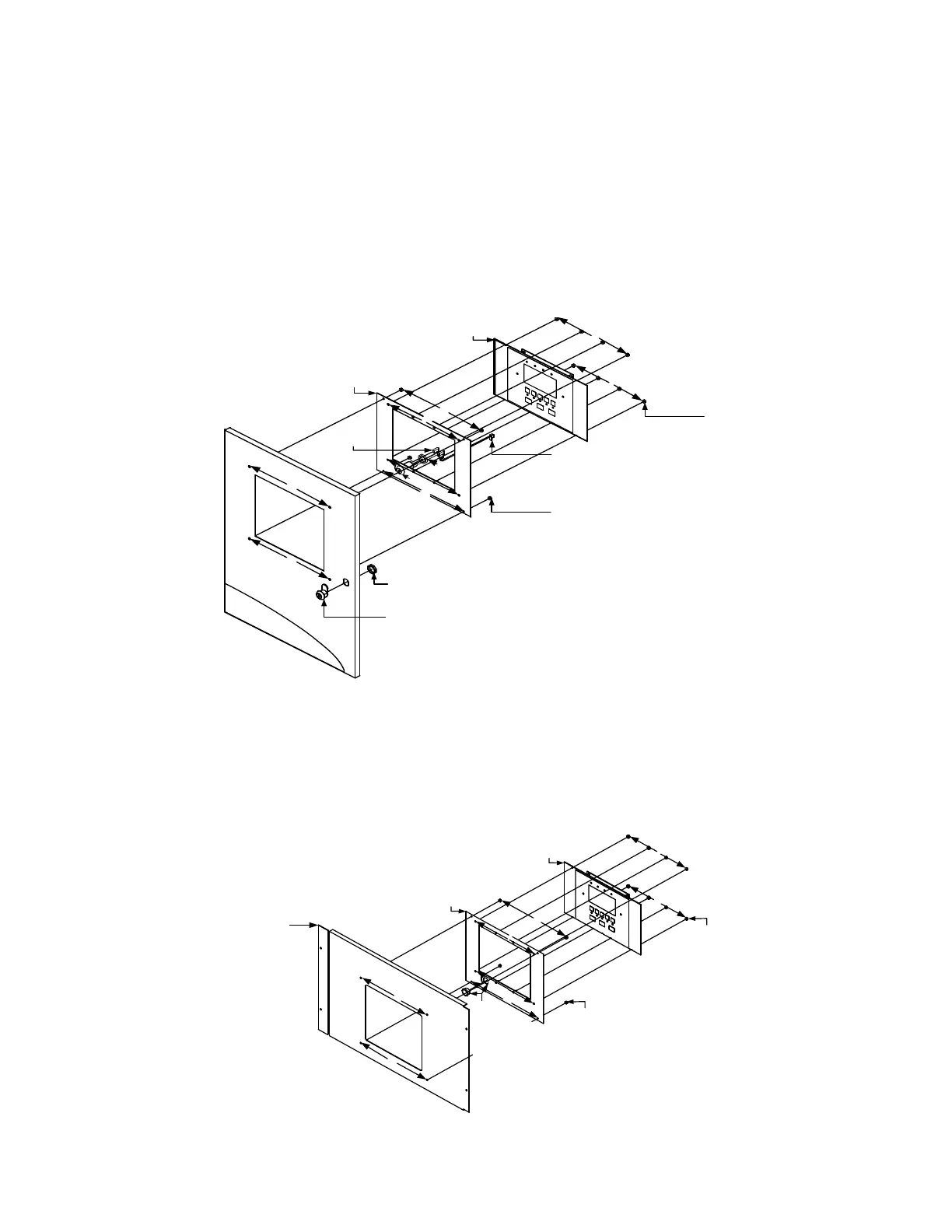

Figure 2.8.1.1 LCD-SLP Installed to a B-Slim Cabinet Outer Door
2.8.2 LCD-SLP Installed to a 600XL Retrofit Display Inner Door
1. Insert the keyswitch snap-in plug into the keyhole in the LCD-E3 Mounting Plate as shown in Location 1 of the figure below.
2. Mount the LCD-SLP keypad to the pins on the LCD-E3 Mounting Plate. Insert and secure eight nuts (#6-32 HEX KEPS) into
the eight-hole mounting pattern as shown in Location 2 of the figure below.
3. Mount the LCD-E3 Mounting Plate to the 600XL Retrofit Display inner door. Insert and secure four nuts (#6-32, HEX KEPS)
into the four-hole mounting pattern as shown in Location 3 of the figure below.
Figure 2.8.2.1 LCD-SLP Installed to a 600XL Retrofit Display Inner Door
LCD-E3
MOUNTING PLATE
LCD-SLP
K
E
Y
S
W
I
T
C
H
,
P
K
6
2
5
KEYLOCK,
PK625
NUT,
(¾” x 24 THD HEX)
2 PLACES
(KEYLOCK AND KEYSWITCH)
O
U
T
E
R
D
O
O
R
5
KEYSWITCH
CABLE
P2, KEYSWITCH CABLE
(2 PIN RT.ANGLE HEADER)
(NOTE: ATTACH TO W2 ON
THE LCD-SLP PANEL).
NUT, #6-32,
HEX KEPS
4 PLACES
NUT, #6-32,
HEX KEPS
8 PLACES
3
3
3
6
6
2
4
5
5
5
1
3
1
600XL RETROFIT
DISPLAY INNER
DOOR
LCD-E3
MOUNTING PLATE
LCD-SLP
NUT, #6-32
HEX KEPS
4 PLACES
NUT, #6-32
HEX KEPS
8 PLACES
PLUG,
DOUBLE-D
(SNAP INTO
KEYHOLE)
3
3
3
3
2
2
2
2
1
