LCD-SLP Product Installation Document — P/N LS10045-000GF-E:E 12/16/2019 3
2.4 Circuit Ratings and Specifications
Table 2.4.1 lists the LCD-SLP circuit ratings and specifications.
2.5 LCD-SLP Installation
1. Remove the unit from its static-shield bag, observing proper static protection measures.
2. Visually inspect the unit for damage.
If any components are damaged, notify the shipping carrier immediately. Report missing components to the Gamewell-FCI
Customer Service.
3. Use the Hardware Kit provided with the unit.
4. The LCD-SLP is installed in the S3 Series, SLP-BB cabinet and E3 Series cabinets.
To determine the installation that you require, refer to the following documents and Section 2.6 thru Section 2.8.
– S3 Series (Small Addressable Fire Alarm Control Panel), UL Listing Document, P/N: LS10005-051GF-E
Specifications LCD-SLP
Operating Voltage: +24 VDC
Operating Current: 0.030 A
Alarm Current: 0.065 A
Ground fault test impedance: Zero Ohms
Impedance values and ground faults are annunciated: GND Fault LED or LCD-SLP
Relative Humidity: 0 to 93%, non-condensing at 90° F (32° C)
Operating Temperature: 32° to 120° F (0° to 49° C)
Circuit Supervision: Supervised
Circuit Class 2 Power-Limited:
Table 2.4.1 Circuit Ratings and Specifications

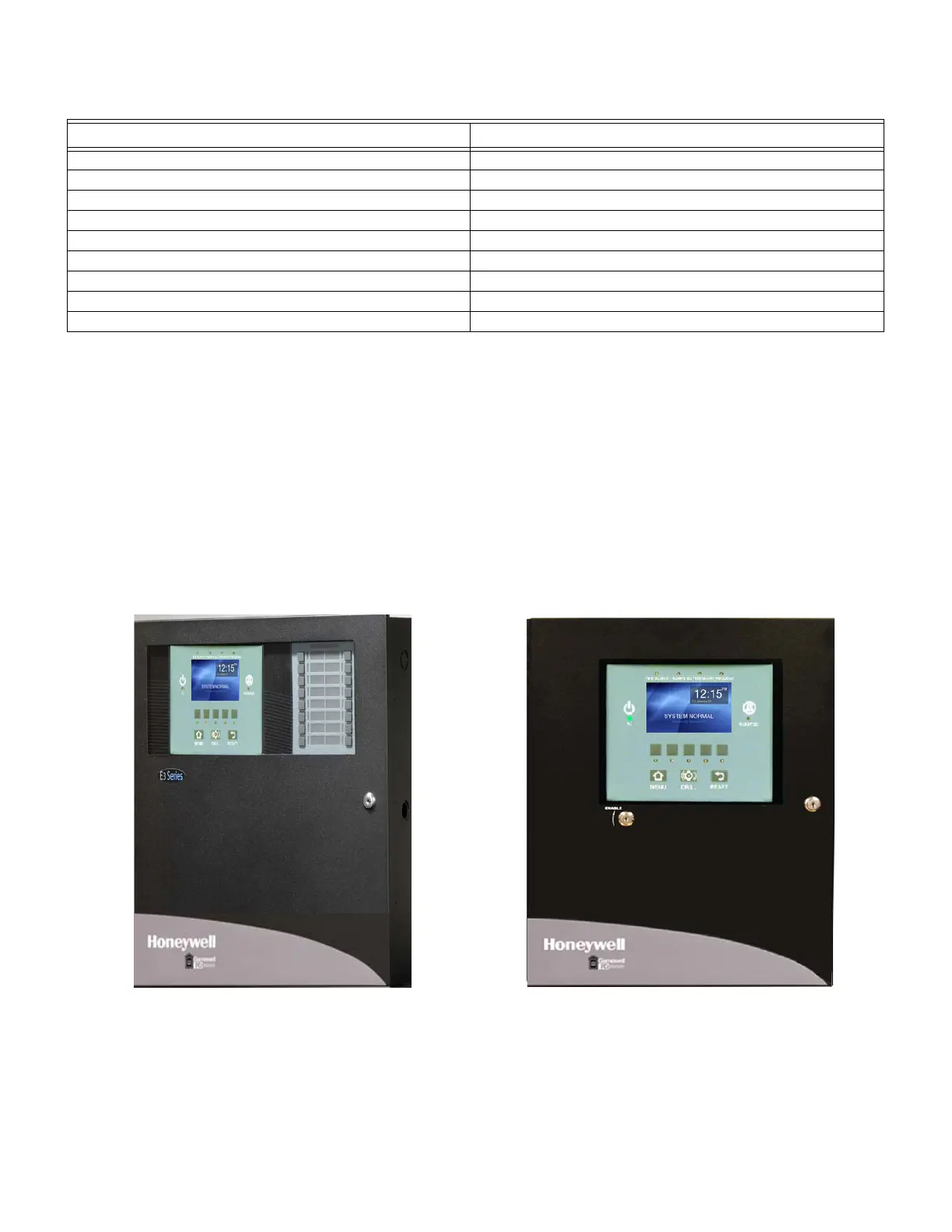

Figure 2.5.1 illustrates the LCD-SLP installed in the S3 Series,
SLP-BB cabinet.
Figure 2.5.1 LCD-SLP Installed in an SLP-BB Cabinet
Figure 2.5.2 illustrates the LCD-SLP installed in the E3 Series,
Cabinet B.
Figure 2.5.2 LCD-SLP Installed in E3 Series Cabinet B
