HCE80(R) / HCC80(R) Mounting and operation
15

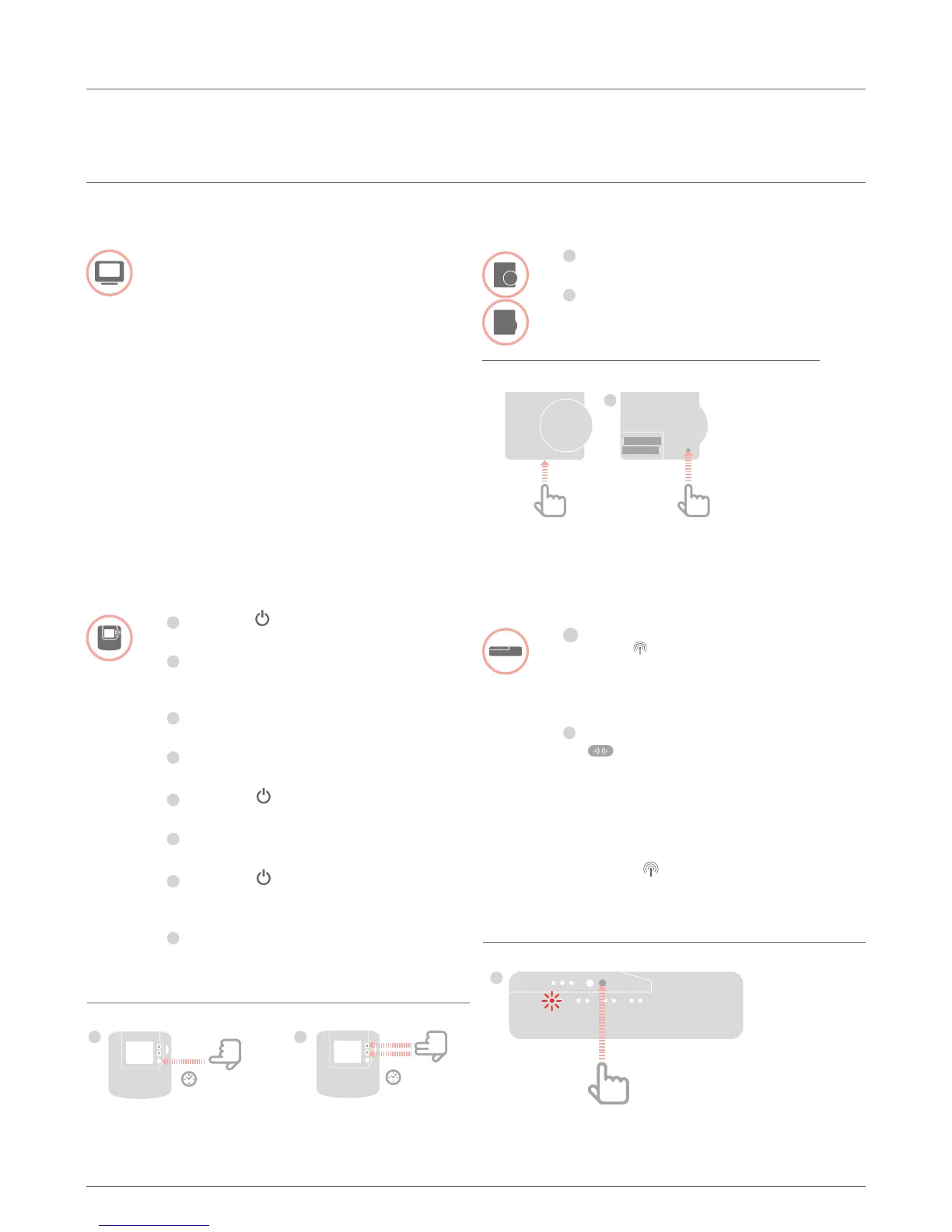

Commissiong and binding the evohome
controller
If you want to control the room temperature with
the evohome controller (that has to be located
in this room), press YES. Otherwise press NO
and connect a sensor – either a room thermostat
(DTS92) or a room setpoint generator/sensor
(HCW82/HCF82).
Binding a room thermostat (DTS92)
1
Keep the button pressed 2 seconds
long to set the room thermostat to standby.
2
Keep the
▲
and
▼
button pressed
simultaneously for 3 seconds.
INst should be displayed.
3
Press the
▼
button.
COnt should be displayed.
4
Press the
▲
button three times.
CLr should be displayed.
5
Press the button once to delete
existing connecting data.
6
Press the
▲
button.
COnt should be displayed.
7
Press the button once to
send the connecting signal to
the evohome controller.
8
You should receive a SUCCESS
message at the evohome controller
(if not, go back and bind again).
Binding a room setpoint generator/
sensor (HCW82 or HCF82)
1
Briefly press the bind button in the bottom
right-hand corner. The red LED flashes.
2
You should receive a SUCCESS
message at the evohome controller
(if not, go back and bind again).
Binding the underfloor heating controller
with the evohome controller
1
Press and hold the installation
button on the underfloor heating
controller for 2 seconds.
The LED lights up. The LED
of zone 1 flashes green.
2
Press the green connection button
at the evohome controller.
If binding was successful, the
yellow LED of the underfloor
heating controller lights up.
Binding of the zone (room) is completed.
Repeat the process to bind further zones:
t Press the bind button at the underfloor heating
controller twice (skip red flashing LED).
The green LED of the first zone flashes green.
3 SECONDS
1
2 SECONDS
2
1
1
