Configuring Camera Settings | 81
800-21090V2 - A - 03/2016

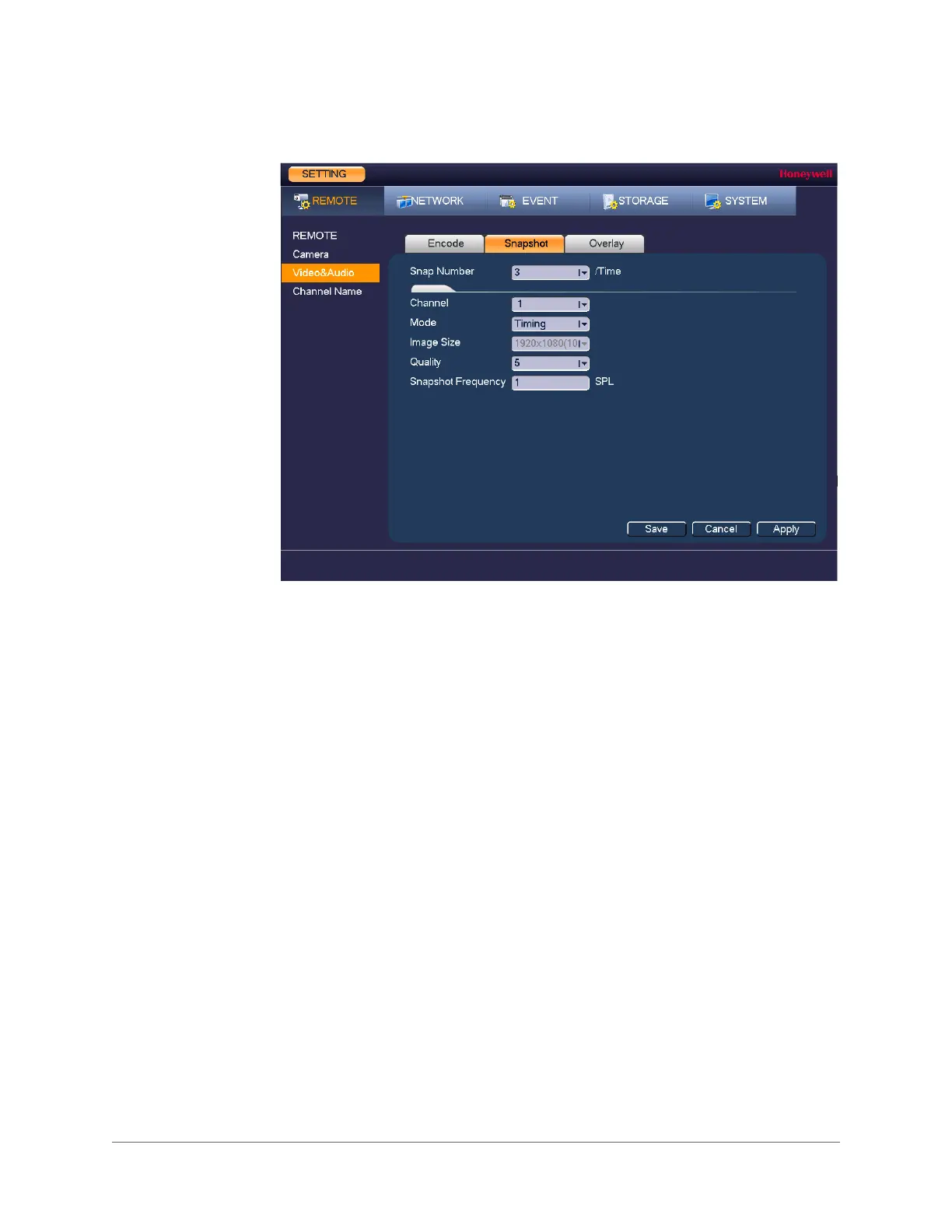

Figure 6-4 Camera Snapshot Settings Tab
2. In the Channel box, select the camera that you want to configure.
3. Click Apply to save your settings.
4. If you want to save your settings and exit the SETTING menu, click OK.
•Snap Number Select the maximum number of snapshots that can be taken at a
time.
•Channel Select a channel from the drop-down list.
•Mode There are two modes: Regular and Trigger. If you set Regular
mode, then you need to set the snapshot frequency. If you set
Trigger mode, then you need to enable snapshots in Event
Settings. Please see To set up motion detection event actions on
page 104, for example.
•Image Size Select a snapshot size.
•Quality Select a snapshot quality. Select from 1 to 6, with 6 being the
highest quality setting.
•Snapshot
Frequency
Set how frequently the snapshot is taken.
