Configuring Event Settings
91

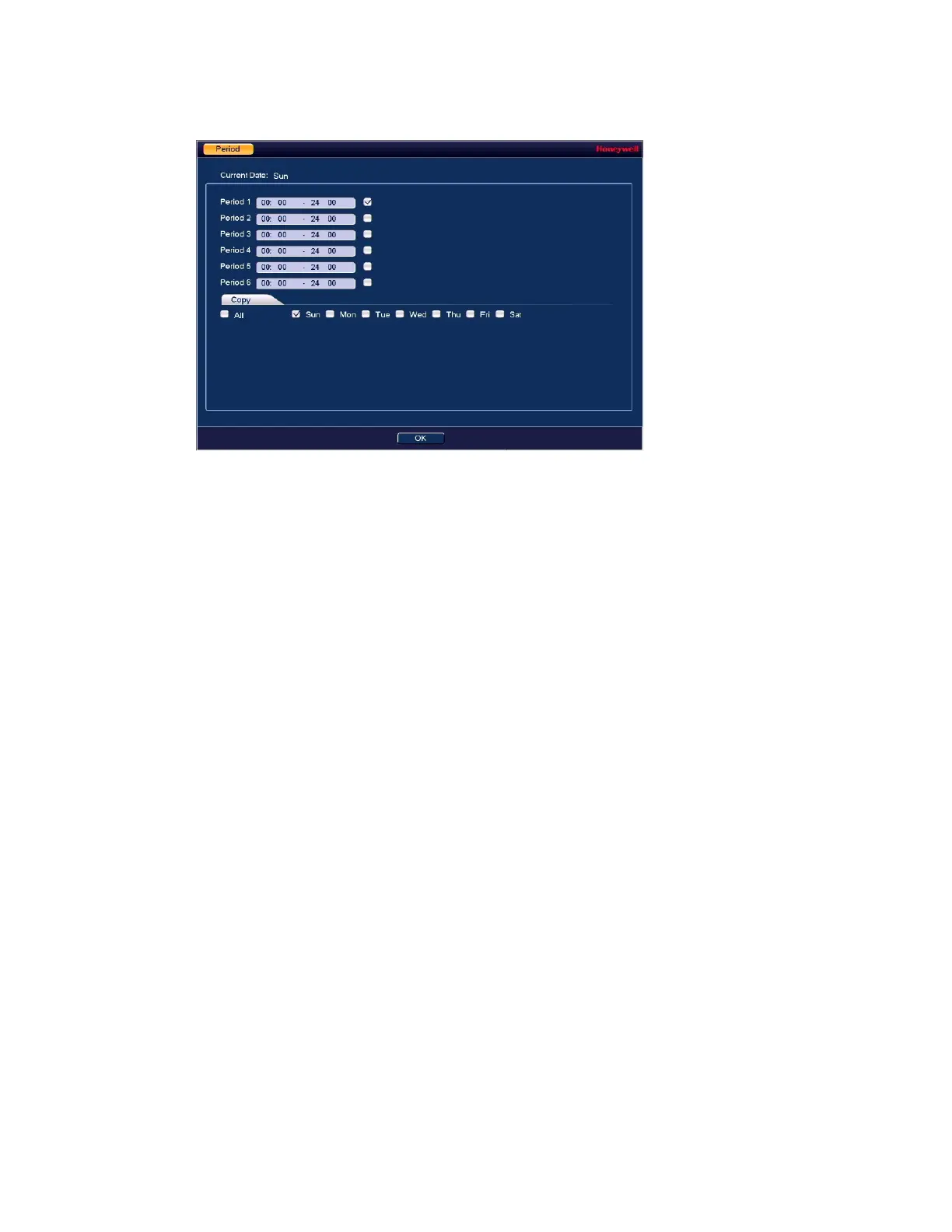

Figure 8-15 Period Window
a. Set up to six periods in the day when you want alarm detection for the selected alarm
input to be active.
b. Select the check box next to each configured period to enable it.
c. To copy the settings to additional days, select the appropriate check box(es) under
Copy.
d. Click OK to return to the previous window.
4. After you have finished setting up the alarm detection periods, click OK.
To set up alarm input event actions
1. On the Alarm tab, select the actions that you want the system to initiate when an alarm
input trigger occurs:
Alarm Out: Select the check box to activate the selected alarm output(s) (1 or 2). In the
Latch box, specify the amount of time (0–300 s) to delay the alarm output signal after an
alarm event is triggered.
Show Message: Select the check box to enable a pop-up message on your local host PC.
Alarm Upload: Select the check box to enable the system to upload an alarm signal to the
network (including to an alarm center and/or web client).
Send Email: Select the check box to enable the system to send an email notification. If
the Snapshot function is enabled, an image can be attached to the email. To set up Email,
see Configuring Email Settings on page 68.
Record Channel: Select the channel(s) that you want to record when the alarm is
triggered. In the Delay box, specify the amount of time (10–300 s) to delay recording after
an alarm event is triggered.
