Performance Series Network Video Recorder User Guide
92
Note
You also need to set the alarm recording period. Go to Storage
Schedule to configure the current channel for scheduled
alarm recording. See
Configuring the Video Recording
Schedule
on page 38.
PTZ Activation: Select the check box to activate PTZ functions, and then click Set. In the
PTZ Activation window, for each PTZ camera, select the preset, tour, or pattern that you
want to be called when the alarm event occurs, and then click OK.
Tour: Select the check box to enable a tour of the selected channels.
Snapshot: Select the check box to take a snapshot of selected channels.
Log: Select the check box to enable logging of the alarm input event.
Voice Prompts: Select the check box to enable the playing of a voice prompt audio file
when an alarm input event is triggered. Use the File Name drop-down arrow to select the
audio file to play for the alarm events.
Buzzer: Select the check box to activate a buzzer noise at the NVR.
2. Click Apply to save your settings.
3. To copy the alarm event settings to additional channels, click Copy, select the channels to
which you want to copy the settings, and then click OK.
Configuring IPC Offline Alarm Events
Go to Main Menu ïƒ SETTING ïƒ EVENT ïƒ ALARM ïƒ IPC Offline.

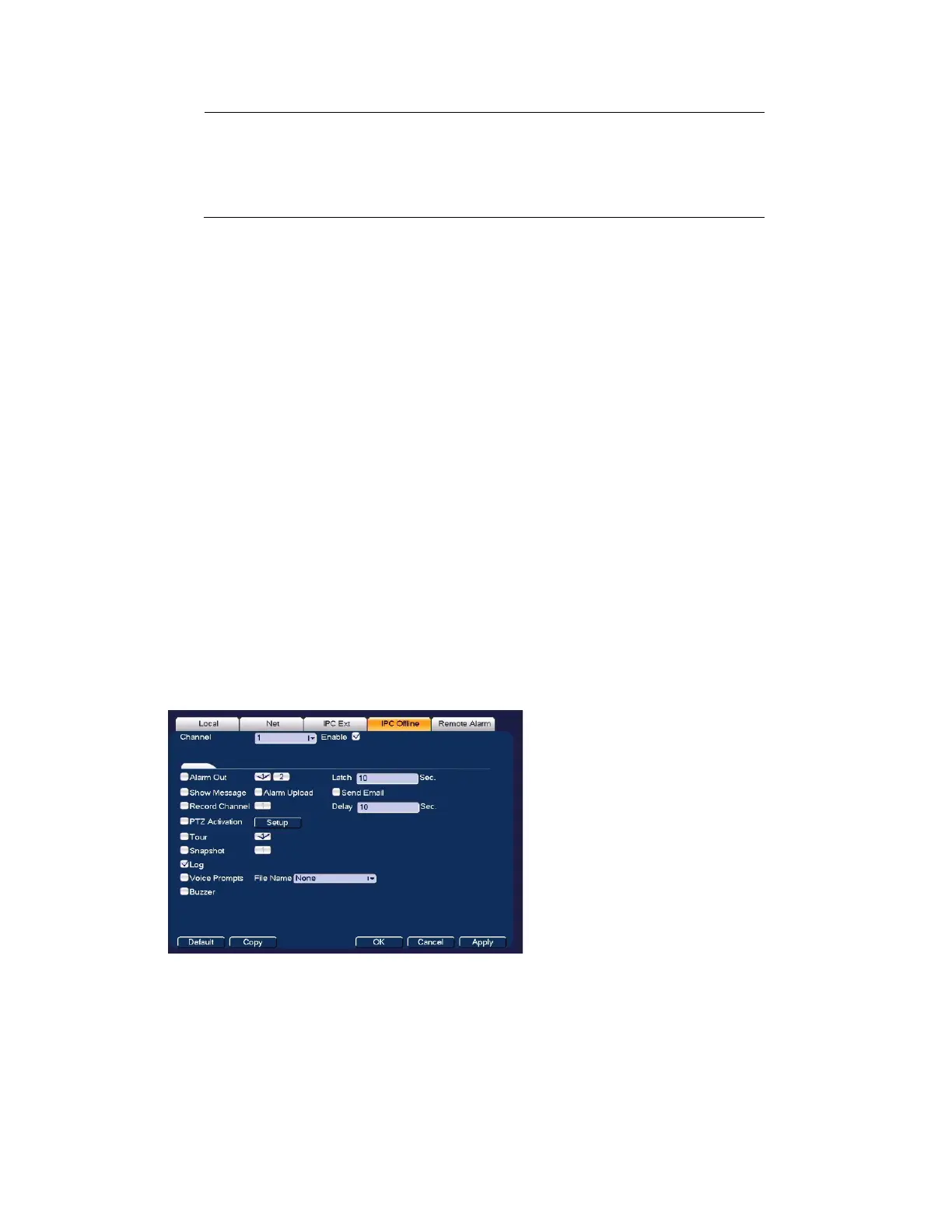

Figure 8-16 IPC Offline Alarm Configuration Tab
To configure for alarms for no IP camera signal, select the channel (camera) to set an alarm if
the camera signal goes offline and follow the same steps as for configuring IPC External
Alarm inputs event actions, on page 91.
Configuring Local Alarm Inputs
A local alarm is an alarm signal from a local device connected to the NVR.
