Performance Series Network Video Recorder User Guide
100
Note
You also need to set the alarm recording period. Go to Storage
Schedule to configure the current channel for scheduled
alarm recording. See
Configuring the Video Recording Schedule
on page 38.
PTZ Activation: Select the check box to activate PTZ functions, and then click Set. In the
PTZ Activation window, for each PTZ camera, select the preset, tour, or pattern that you
want to be called when the people counting event occurs, and then click OK.
Tour: Select the check box to enable a tour of the selected channels.
Snapshot: Select the check box to take a snapshot of selected channels.
Log: Select the check box to enable logging of the people counting event.
Voice Prompts: Select the check box to enable the playing of a voice prompt audio file
when a people counting event is triggered. Use the File Name drop-down arrow to select
the audio file to play for the events.
Buzzer: Select the check box to activate a buzzer noise at the NVR.
8. Click Apply to save your settings. To return to the main menu, click OK.
Configuring Alarm Outputs
1. Go to Main Menu ïƒ SETTING ïƒ EVENT ïƒ Alarm Out.

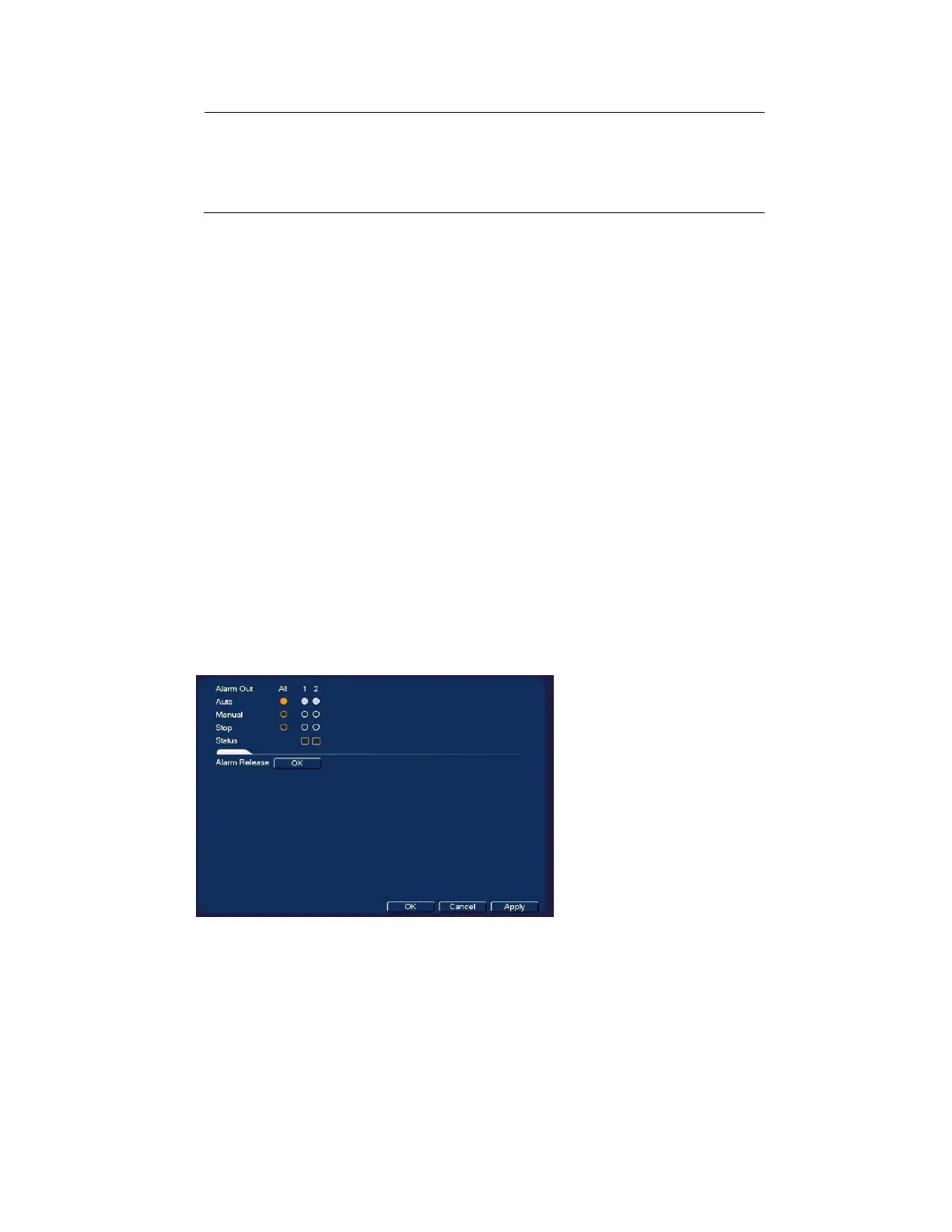

Figure 8-24 Alarm Output Configuration Screen
2. On the Alarm Output page, set the alarm type for each alarm output:
Auto: Select the alarm output(s) that you want to apply the recording schedule settings to.
For more details, see Configuring the Video Recording Schedule on page 38 and
Configuring the Snapshot Recording Schedule on page 40.
Manual: Select the alarm output(s) that you want to enable for all channels.
Stop: Select the alarm output(s) that you want to disable for all channels.
3. To turn off triggered alarm outputs, next to Alarm Release, click OK.
