Honeywell HF Series User Manual

3EN
INSTALLATION
It is important that the installation instructions below are followed for successful installation of this
Local Air Conditioner. Please call Customer Support if you have any difficulties or queries
regarding these installation procedures.

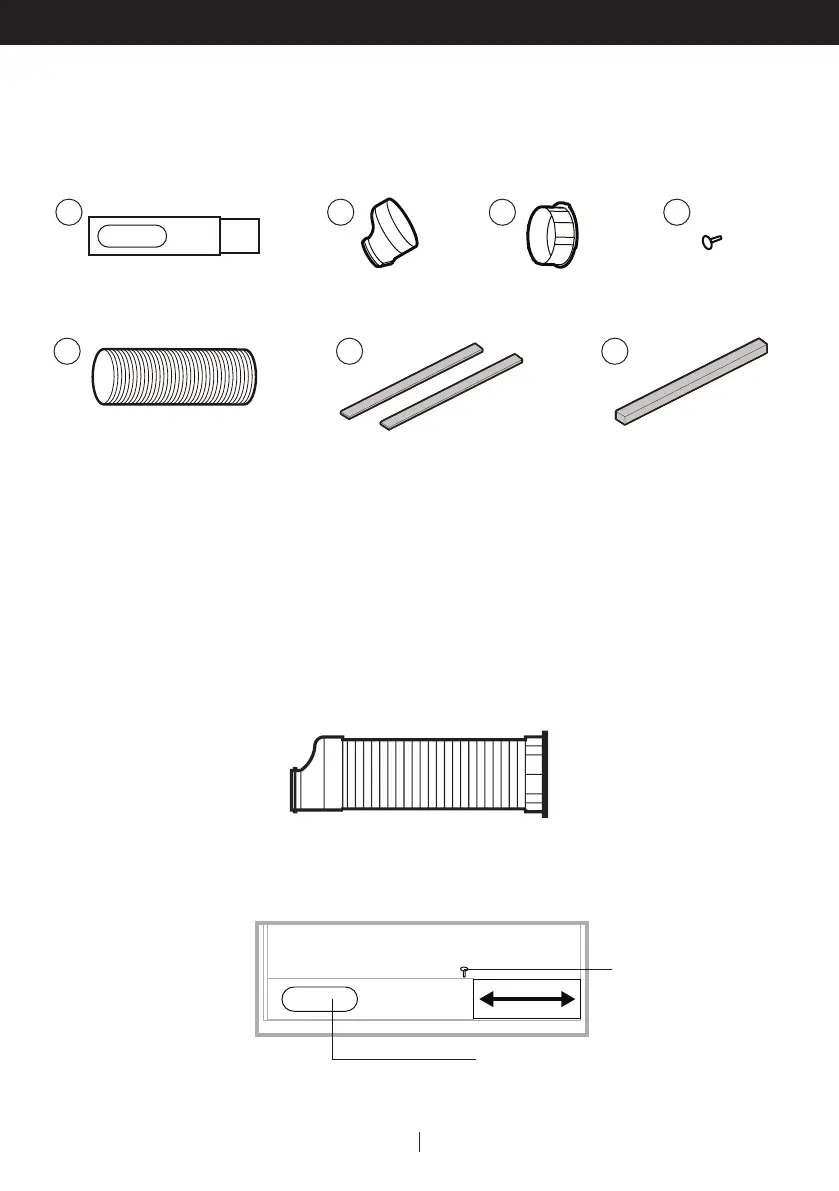

Installation Kit:
Installation Steps:
Window bracket panel adapter, hose and hose connector are pre-assembled inside the package.1.
2. Adjust the window bracket as per width or height of your window and insert the plastic pin to
fix at the desired position. There is a hole where the hose will be inserted later. Make sure this
hole is not blocked.
Hole for Window Bracket
Panel Adapter and Hose
1. Window Bracket Kit (1 Set) 5. Hose (1 Piece)
2. Window Bracket Panel Adapter (1 Piece) 6. Foam Seal (adhesive) (2 Pieces)
3. Hose Connector (1 Piece) 7. Foam Seal (non-adhesive) (1 Piece)
4. Plastic Pin (2 Pieces)
4
x2
26.6", 36.2" to 52"
(67.5 cm, 92 cm to 132 cm)
Plastic Pin
1
x1
5
x1
x1
2 3
x1
6
x2 x1
7

Honeywell HF Series Specifications

General

Type	Portable Air Conditioner
Fan Speeds	3
Control Type	Electronic
Display Type	LED
Remote Control	Yes
Filter Type	Washable
Power Supply	115V / 60Hz
Refrigerant	R410A
Timer	24-hour
Weight (Indoor Unit)	68 lbs
Dimensions (Outdoor Unit)	N/A (Portable unit, no separate outdoor unit)
Weight (Outdoor Unit)	N/A (Portable unit, no separate outdoor unit)
