Installation Mounting Addressable Modules
24 HPFF12 NAC Expander — P/N 53576:B3 10/1/2018
2.4.1 Mounting Modules from Honeywell Fire Systems
Addressable modules can be mounted directly to the Control circuit board as shown in Figure 2.14 for the wall cabinet. This allows wir-
ing to remain in the cabinet. Two modules can be mounted on top of each other if the application requires two independent inputs, such
as silencing. Alternately, two outputs of a six-output addressable module can also be used. The six-output module can also be mounted
directly on the Control board.
Mounting addressable modules on the Control circuit board is also possible in the HPFF12CM(E) units. However, the six-output module
must be mounted in an optional multi-module chassis if used in the large cabinet enclosure.
See Section 2.5, “Power-Limited Wiring Requirements”.
H
P
F
F
1
2
m
n
t
c
m
f
.
w
m
f
Standoff Standoff
Standoff
Standoff

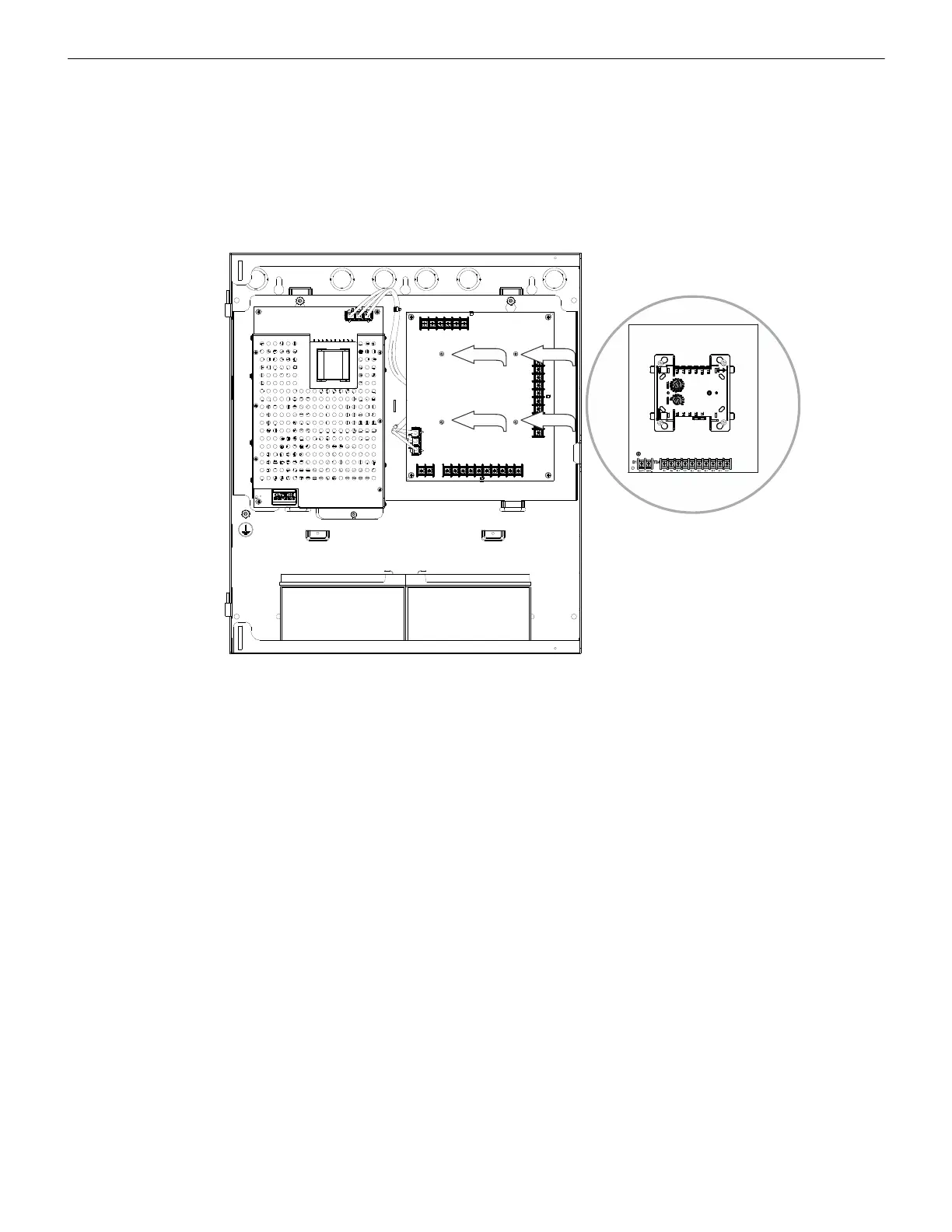

Figure 2.14 Mounting Details for Control & Relay Modules from Honeywell Fire Systems
