Power-Limited Wiring Requirements Installation
HPFF12 NAC Expander — P/N 53576:B3 10/1/2018 25
2.4.2 Mounting Six-Circuit Modules from Honeywell Fire Systems
Six-output addressable modules can be mounted directly to the control circuit board as shown in Figure 2.15 for the wall cabinet. This
allows wiring to remain in the cabinet. However, the six-output module cannot be mounted as shown in the HPFF12CM(E) units when
used in the large equipment enclosure. An optional multi-module chassis is available from Honeywell Fire Systems.
See Section 2.5, “Power-Limited Wiring Requirements”.
2.5 Power-Limited Wiring Requirements
Power-limited and non-power-limited circuit wiring must remain separated in the cabinet. All power-limited wiring must remain at least
0.25" away from any non-power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non-power-limited circuit wir-
ing must enter and exit the cabinet through different conduits. An example of this is shown below. Your specific application may require
different conduit knockouts to be used in the standard cabinet. Any conduit knockouts may be used. For power-limited applications, use
of conduit is optional.
H
P
F
F
1
2
m
n
t
6
u
p
.
w
m
f

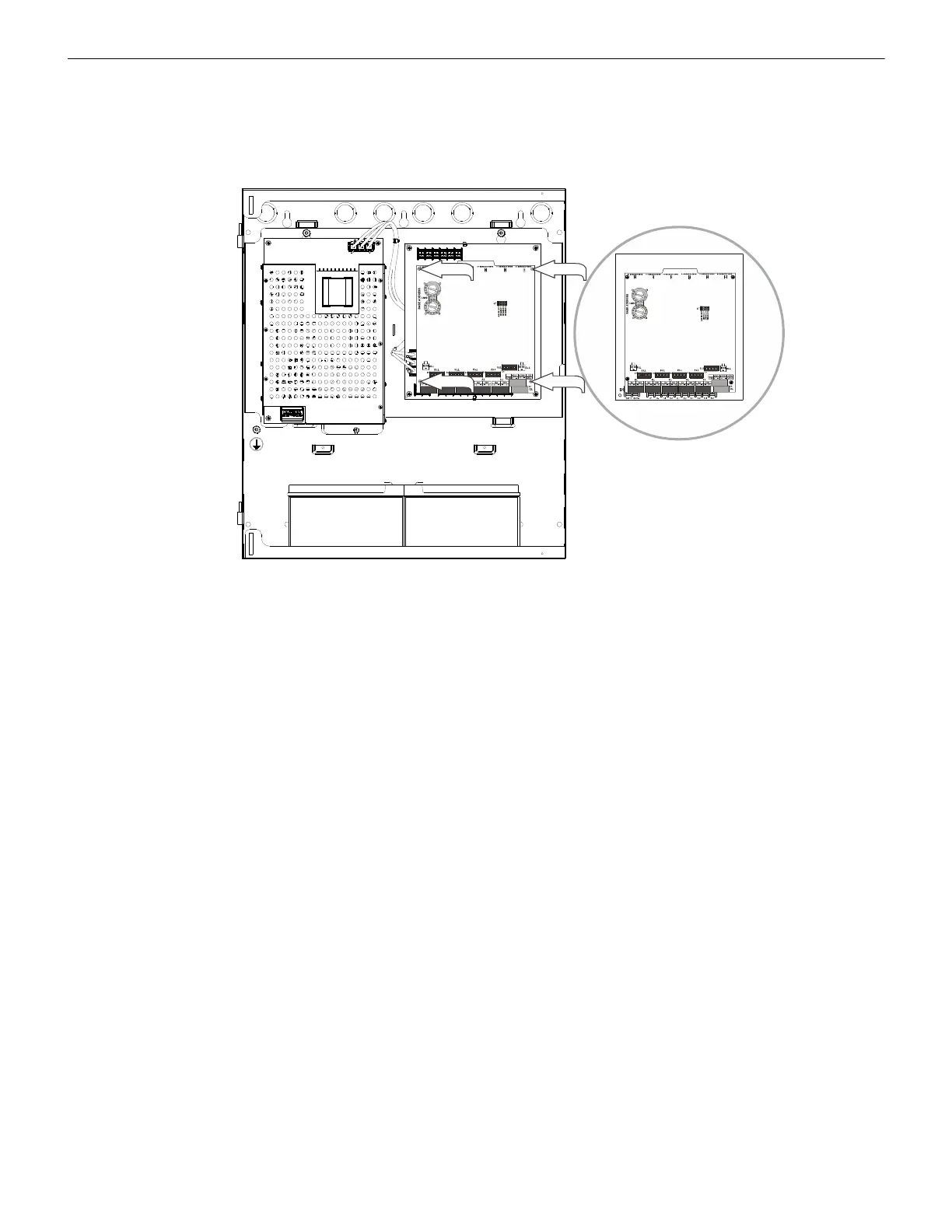

Figure 2.15 Mounting Details for Six-Output Modules from Honeywell Fire Systems
Standoff
Standoff
Standoff
Standoff
To Next Page
