Installation Power-Limited Wiring Requirements
28 HPFF12 NAC Expander — P/N 53576:B3 10/1/2018
Ground Stud
TB1 on 24 VDC circuit board
L1
Ground
L2
Ground Stud
Wire Nut
Line Neutral Ground
Ring Terminal

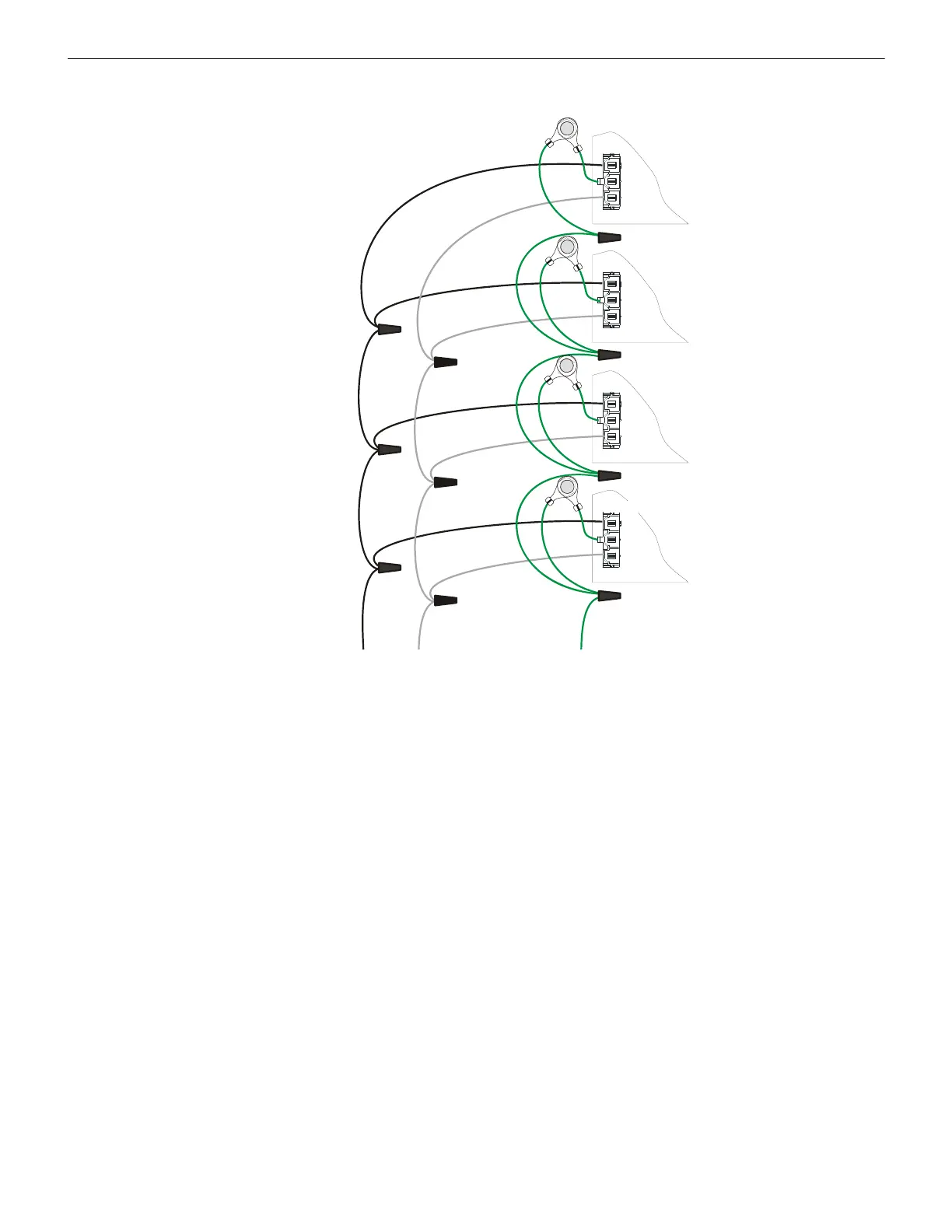

Figure 2.19 Power-Limited Wiring Example: EQBB-D4 AC Wiring (Expanded)
