Video Camera Control Feature
The LYNX Touch L7000 supports up to 20 video cameras and provides the capability to view live video from a
maximum of four cameras. The installation of a WiFi Communications module and a WiFi internet connection
are required. Check with your installer to see if this features is available.
Selecting a Camera
5100-100-001-V2
Ready To Arm
Video
Notes
Traffic
Security
News
5-Day Forecast
2
68
35 1 :
F
PM
January 12, 2010
Feels Like 71
Mostly Sunny
F
Automation

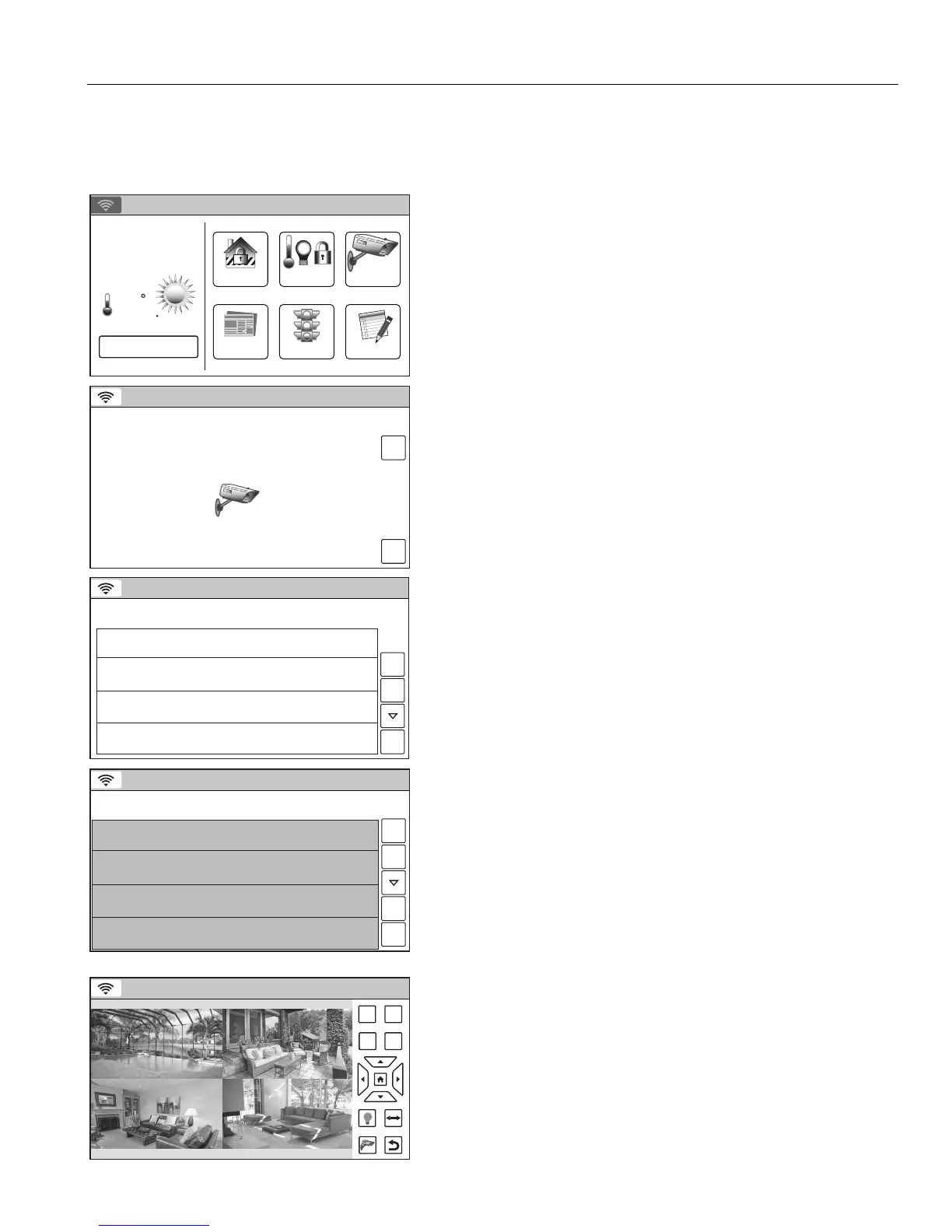

1. With the system in the disarmed or armed state, select the
Video icon. The system advances to Cameras screen
5200-100-010-V0
IP
Cameras
MACName
Back
Scan
Ready To Arm
2. If no cameras have been discovered or if a list of discovered
cameras is invalid, a Camera scan will start automatically.
Note: The latter can occur if a WiFi connection is lost.
2. A Manual scan can be performed by selecting the “Scan”
button. When the scan is complete the available cameras
will be displayed.
Note: Up to 20 cameras will be viewable during scanning/
enrollment however, only four will appear on each page.
5200-100-007-V1
IP
Cameras
MACName
10.10.150.159 00:C0:02:8F:60:4E
10.10.150.67 00:0E:8F:79:CB:C2Name
10.10.150.158 00:0E:8F:79:C7:EFName
Name
10.10.150.176 00:C0:02:7B:67:E4Name
Back
Scan
Ready To Arm
4. Select the desired camera(s) (up to four) from the list by
“tapping” once. If applicable select the “  ” button to view
additional pages of available cameras. Select the “  ” button
to return to the previous page of the list.
7000-100-019-V1
IP
Cameras
MACName
10.10.150.159 00:C0:02:8F:60:4E
10.10.150.67 00:0E:8F:79:CB:C2
Living Room
10.10.150.158 00:0E:8F:79:C7:EF
Pool
Patio
10.10.150.176 00:C0:02:7B:67:E4
Den
Back
Scan
Ready To Arm
5. The selected camera(s) are highlighted. To edit the camera
name go to step 6 OR to save the camera go to step 9.
6. To edit the camera name select the highlighted camera again
and then select the edit button.
Note: To de-select a camera “tap” the highlighted camera two
times.
7. Select the “Clear” button on displayed keypad, then enter the
deisred text.
8. Select “Done”.
9. Select the “Back” button.
7000-100-018-V0
1 2
3
4
Ready To Arm
POOL PATIO
DEN LIVING ROOM
10. The system displays video from the selected camera.
11. To select a different camera, select the camera button then
tap the selected camera two times and repeat steps 4 to 9 as
applicable.
12. Refer to the Video Camera Controls table for information
regarding the Video Function buttons. The available controls
are dependent upon the cameras that have been installed
and selected.
