SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS
SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONSSUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS
SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS
System Displays

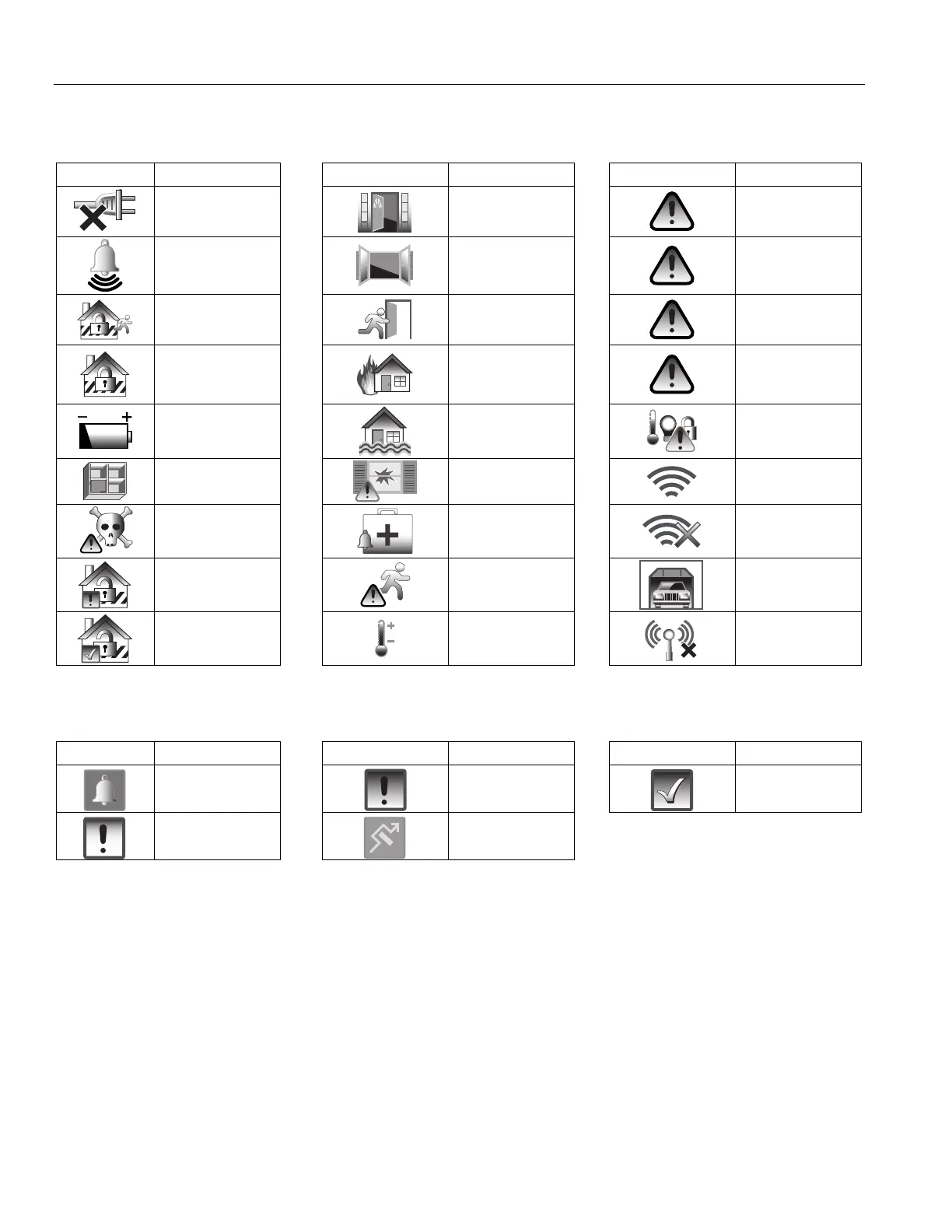

The following icons will be displayed on the Security Screen along with specific zone status information (if
applicable) to indicate system status.
DISPLAY DEFINITION DISPLAY DEFINITION DISPLAY DEFINITION
AC Loss Door Open Reporter
Failure
Alarm
(intrusion)
Window Open Cover
Tamper
Armed Away Exit Active Trouble
Armed Stay Fire
OR
Heat Sensor
90 RF Jam
Battery Low Flood Automation
(Z-Wave Node
Failed)
Check Zones Glass Break WiFi source
present
CO Alarm Medical Alarm No WiFi source
Disarmed Not
Ready to Arm
Motion
Fault *
Garage Door
Disarmed
Ready to Arm
Temperature 103 Comm.
Trouble
Zone Status Icons
The following icons may be displayed on the Zone Status screen.
ICON
DEFINITION
ICON
DEFINITION
ICON
DEFINITION
Alarm Trouble (red) Ready
Fault (Yellow) Bypass
Key/LED Status
Home key Internal LED indicates the following:
Green = System is ready to be armed
Red = System is armed
Green Blinking = System is disarmed, and not ready to be armed (a fault or alarm exists)
Red Steady = System is Armed
Red Blinking = System is in Alarm
Red/Green Blinking alternately = System programming mode OR Two-way voice mode is active
Panic key Internal Red LED is lit in normal conditions
Note: When the system is armed, the Home Key LED is lit Red.
