– 59 –
USER FUNCTIONS
USER FUNCTIONSUSER FUNCTIONS
USER FUNCTIONS
Video Camera Control Feature
Video Camera Controls
The controls that are available are dependent upon the cameras that are installed with your system. Only those
controls that are applicable to the specific camera will be displayed.
To control a camera: Tap one time on the video display from the camera you wish to control. The
LYNX Touch displays the camera controls that are avaiable for the selected
camera.
To view/control a single camera: Tap two times on the video display from the camera you wish to control. The
LYNX Touch displays a full screen view of the video and the camera
controls that are avaiable for the selected camera. Tap the video display two
times again to return to multiple camera viewing.
To position a pan/tilt camera: Pan/tilt cameras can be positioned using the arrow or home button OR by
sweeping a finger across the screen, horizontally, vertically or diagonally to
drive the camera in that direction.

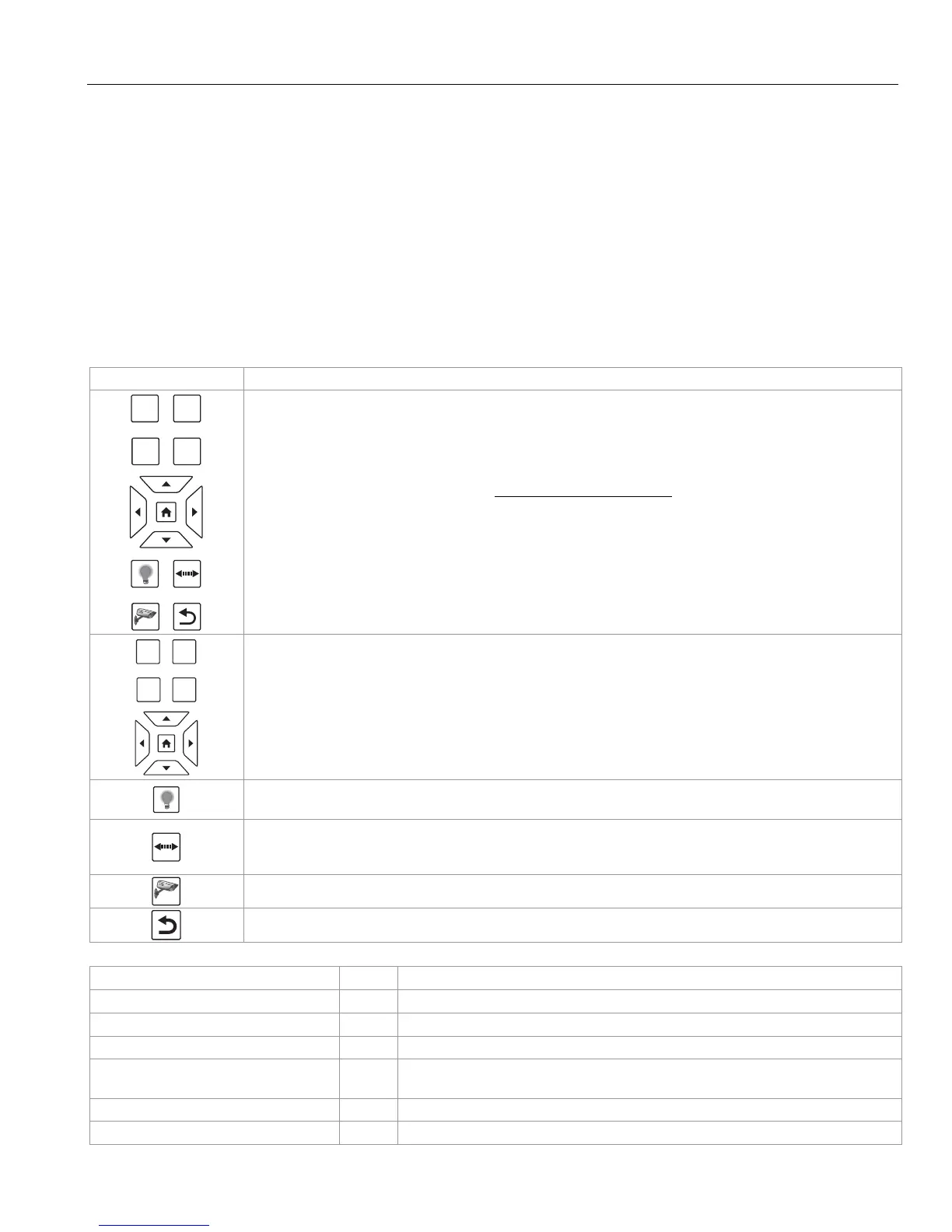

Button Function
Video Camera Control
Button operation is dependent upon the features available in the camera that is installed/selected (i.e.;
pan & tilt and auxiliary LED light). Only the buttons that are applicable for the selected camera are
displayed.
Camera "Home" position - The camera's home position is centered in its vertical and horizontal axis.
• When a camera has been moved to other than the home position, after 5 minutes of no movement
the camera will always return to the home position.
Notes
• Additional features can be programmed via TotalConnect 2.0. Check with your installer to see
which features are available.
• In the event that video is lost, frozen or is pixelated and does not automatically reset, tap the
display two times to manually restore the video.
Preset buttons 1, 2, 3, 4 – These buttons are used to quickly drive the camera to a preset watch area.
(Up to 4 preset watch areas can be set.) Select the button to go to the preset watch area. To set a
preset watch area, use the arrow buttons to drive the camera to the desired area. Then tap the desired
1, 2, 3, or 4 button three times. The selected button will be highlighted (for around 5 seconds)
confirming that the preset is saved.
Arrow buttons – Used to position a PT (pan & tilt) camera. Select to incrementally position a pan & tilt
camera (i.e; iPCAM-PT) in a vertical or horizontal direction.
– Click to drive the camera to its home position.
Light – Used to toggle on or off the camera's auxiliary lighting LEDs. Depending on the ambient low
light conditions, the auxiliary lighting can improve video quality up to 15 feet.
Auto pan – Causes the camera to swing through its entire horizontal range. At the end of the panning
motion, the camera will return to the starting position. After 5 minutes of no movement the camera will
always return to the home position.
Video Camera – When selected, the panel displays a list of available video cameras.
Return/Home – Returns the control panel to the panel’s Home Screen
Video Camera Indicators
Displayed Text
Band Meaning
“Name” OR Camera information Green Normal operation, selected camera
“Name” OR Camera information Gray Normal operation, unselected camera
“Wait for Automatic Video Restore…” Blue Video restoration will begin automatically when communication is restored.
“Double Tap to Restore Video”
Yellow Video restoration requires user to tap the display two times. Video will begin
when communication is restored.
“Video No Longer Available”
Red Comunication with camera has been lost
Date & Time Black Displayed if programmed
