Installation Instructions MB-Secure 1000/2000/3000/4000/5000/6000 39
7.3 General connection of alarm detectors "Z-wiring"
Z-contacts → Detectors that are powered by an external voltage source and are looped into the detector
group using a zero potential relay contact, and simple contacts without external power supply,
e.g. magnetic contacts.
Z-Sensors → Detectors that draw their supply voltage from the voltage of the detector group.
When a detector is activated, the detector group voltage is loaded such that the control panel
can carry out an evaluation.

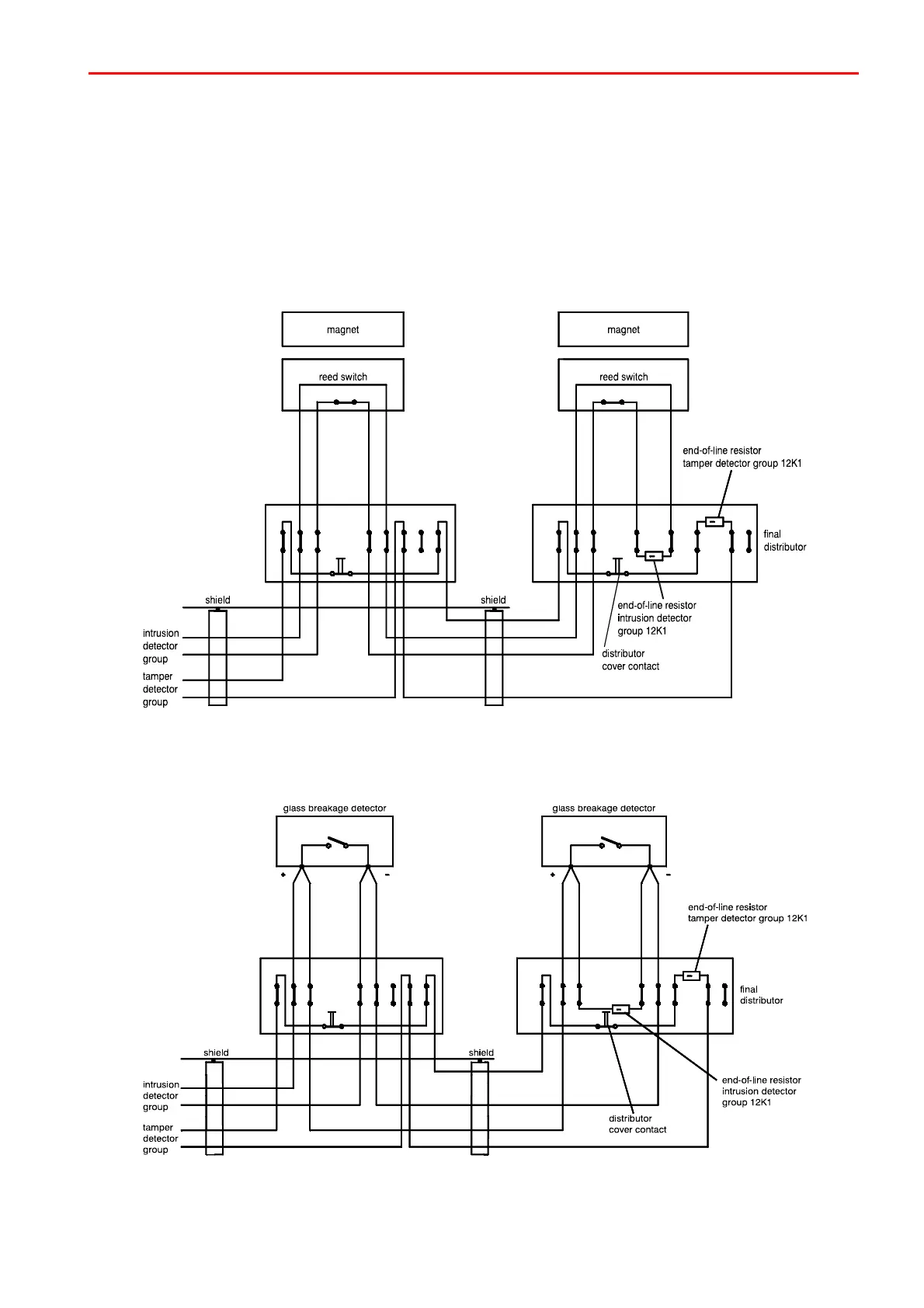

Diagram Wiring diagram for magnet contacts
Diagram Wiring diagram for glass breakage detector
