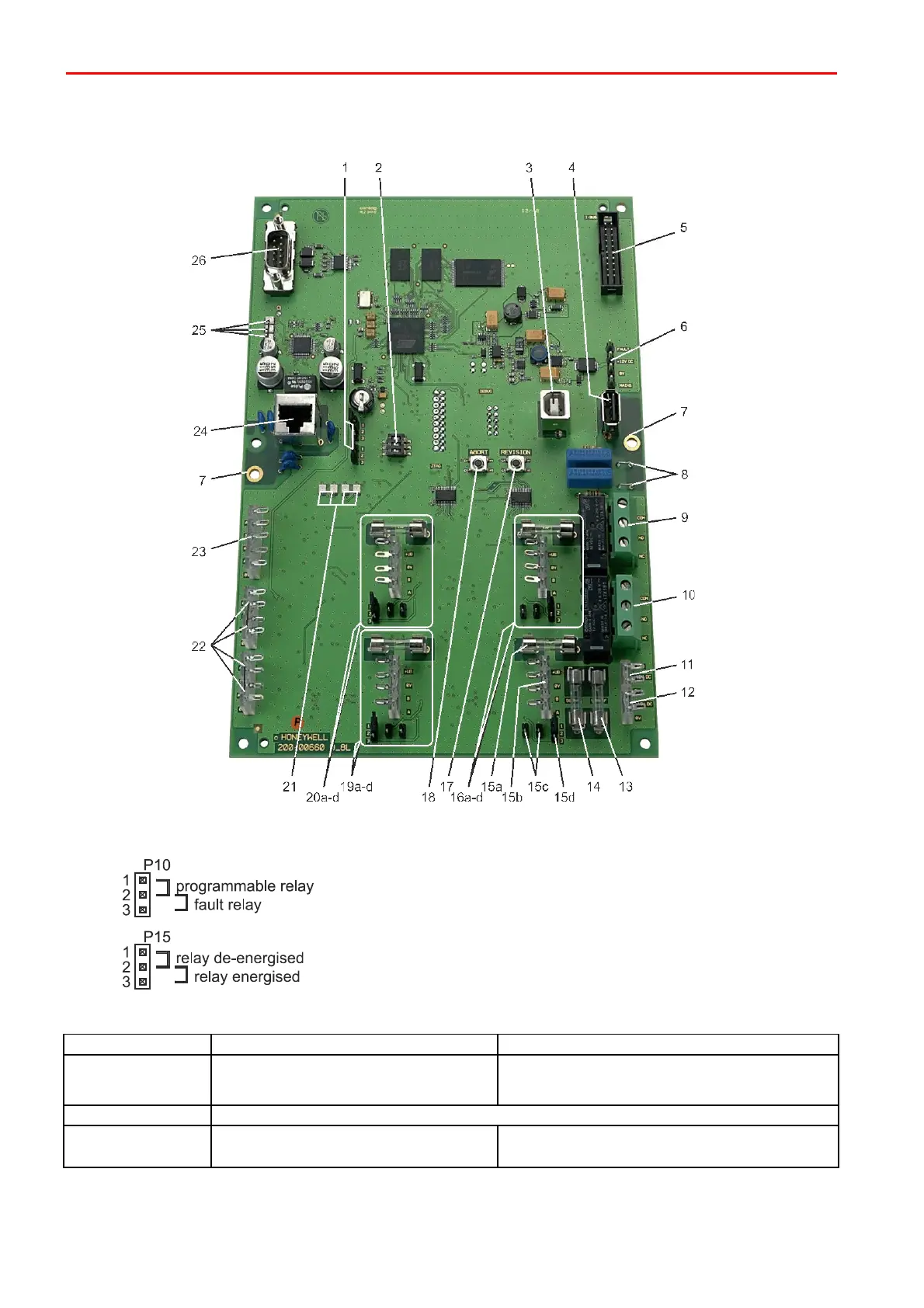

2.5 Computer/connection PCB
1 = Jumper programming switching behavior relay 2
2 = DIP switches
* = For detailed information on using the Reset Mode, see the operating manual "IQ PanelControl for
MB-Secure", Chapter “Help -> Password unknown".
Switches
Setting OFF
Setting ON
S1
Manual release via TouchCenter Tuxedo /
TouchCenter Plus for access with IQ
PanelControl or macro function
Permanent release for access with IQ PanelControl
S2
Factory use; setting OFF must not be changed
S3
Normal Mode
Reset Mode* - Configuration does not get loaded
- IP address comes from DHCP
