44 Installation Instructions MB-Secure 1000/2000/3000/4000/5000/6000

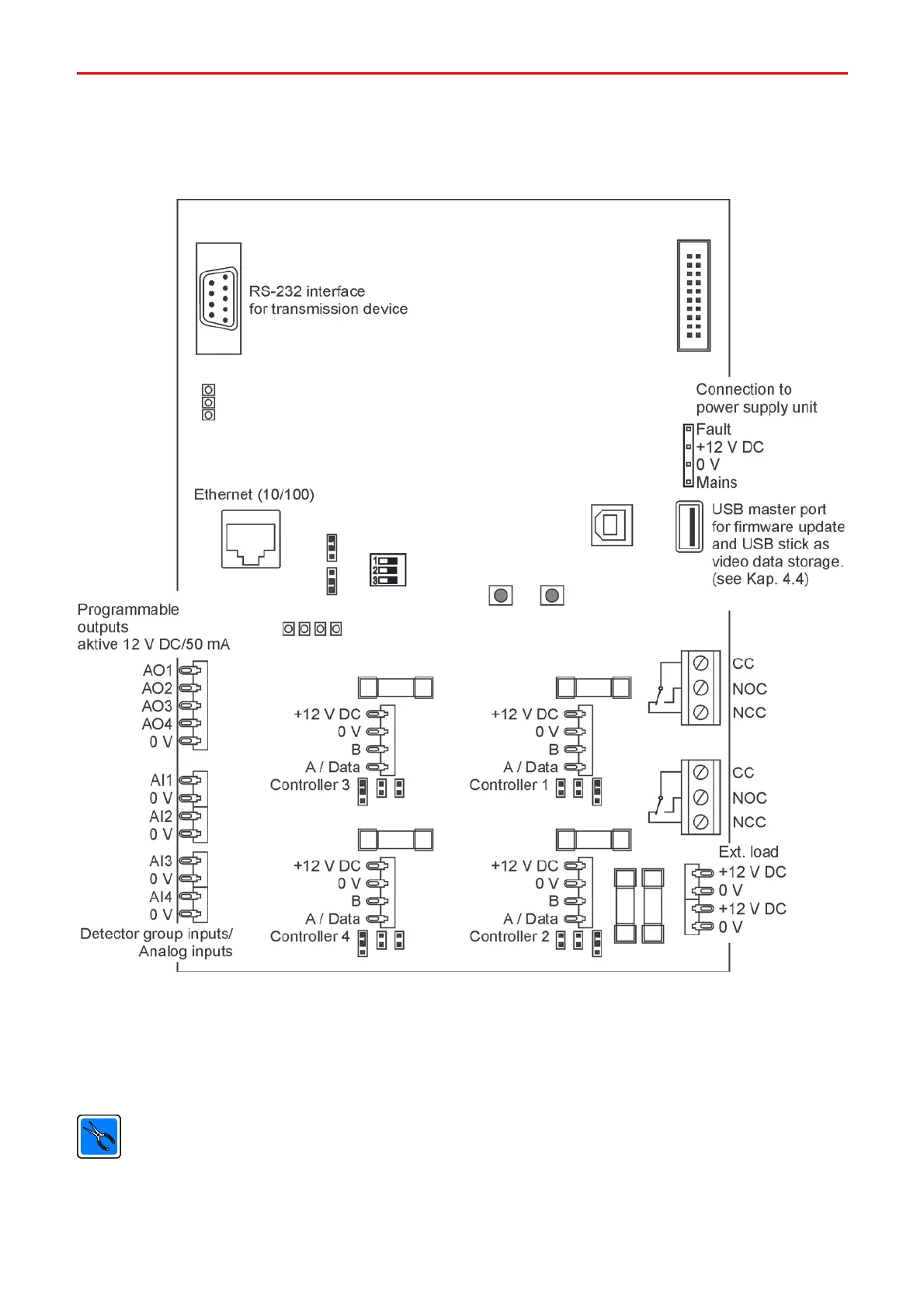

7.8 Connection diagram of Computer/Connection PCB
Controllers 1 - 4
For BUS-2 operation, connection B should not be used.
