Honeywell MN Series - Page 9

4
INSTALLATION (CONTINUED)

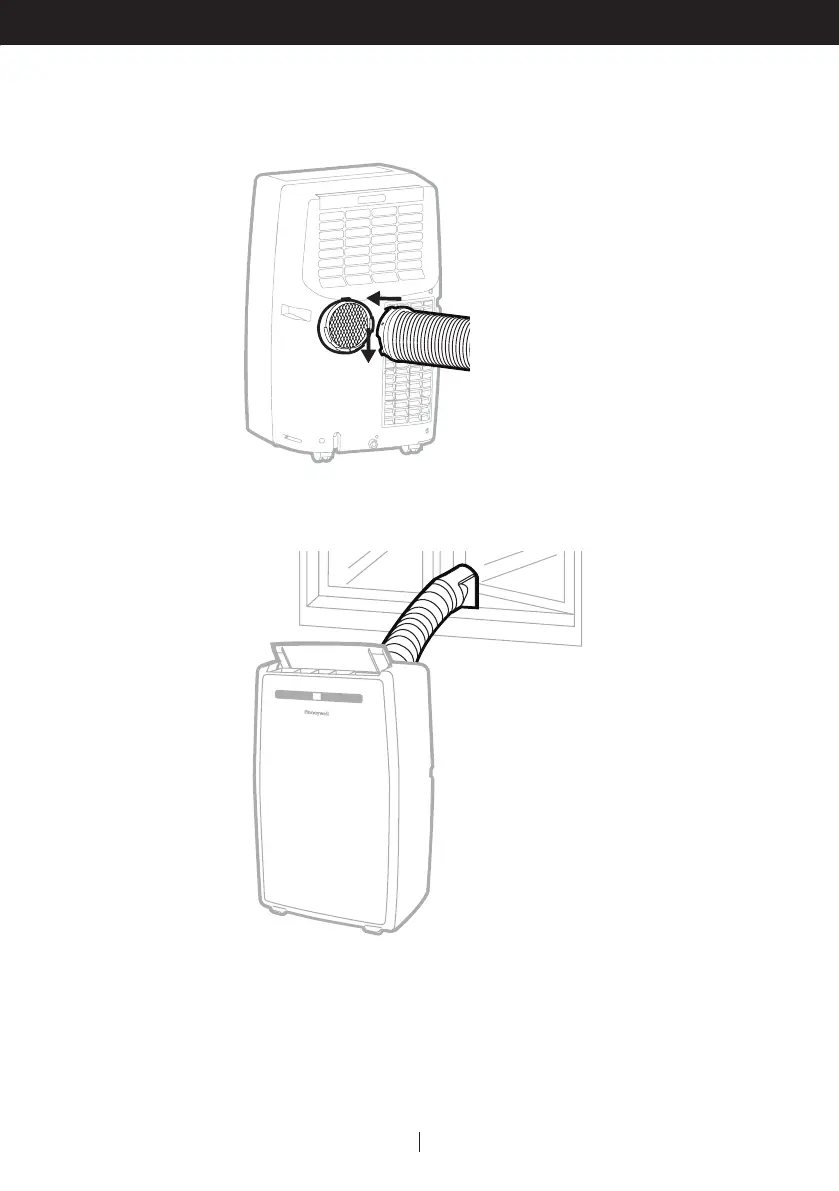

2. Connect the exhaust hose to the rear exhaust outlet on the back of the unit. Slide-in the exhaust
hose connector downwards until it is locked in place.
3. Extend the exhaust hose through an open window and close the window as far as possible
trapping the Exhaust Nozzle (as shown below).
EN
Exhaust Hose:
Dia. 5.9" (15 cm)
Length: 12" to 47" (30 cm to 120 cm)
