ECN12-0027 4

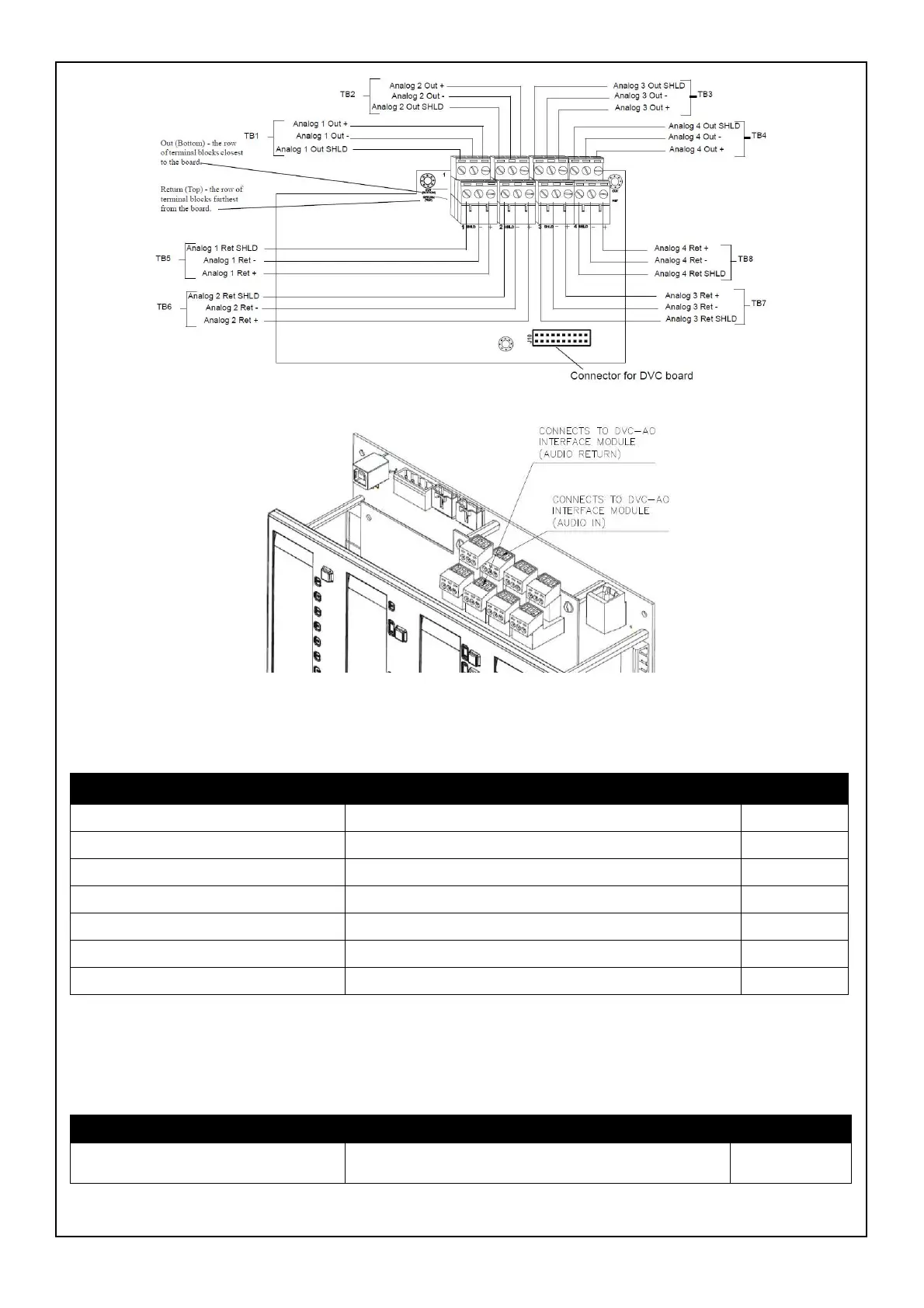

Figure 2-5 – DVC-AO Analog board to DVC-AO Interface Module Connections
Figure 2-6 - 3D View of DVC-AO Connections
3 Components
Part No. Description Qty
GEN-01-002 4-40 tapped spacer x 3/4" - F/F 2
GEN-01-001 4-40 x 5/16" SEMS Pan Philips Head Screw 2
DOC-03-050 DVC-AO Interface Module Install sheet 1
PCA-01-066 DVC-AO Interface Module 1
CA-01-012 Figure of 8 Red and Black Power cable for DA 1
CA-02-012 Figure of 8 White and Black CIE cable for DA 1
3323 2-Core Black Twin Audio Shielded Cable 5 metres
Table 1 - Components
4 Supplemental Documentation
For more information on... Refer to... Doc No.
DVC Operation DVC Manual 52411
Table 2 - Supplemental Documentation
