CO Alarm Operations
4.7 CO Alarm
CO Alarm Event
• Activation of a device (detector or module) with a CO Alarm type code. (Refer to Table G.2, “Type Codes for Monitor Modules,” on
page 98)
• Produces a pulsed audible tone
•
CO ALARM appears in the Header Bar
•
CO ALARM illuminates in the Alert Bar as a blue color indicator and provides CO event counts
• Illuminates the yellow Off Normal LED
•Displays
CO ALARM and specific device information in the Events List
• Displays information on how to react to the event in the Instructional Text Area
Responding to a CO Alarm Event:
• The Informational Text Area on the screen will indicate step by step what needs to be done to acknowledge and silence the event.
• Tap on the ACKNOWLEDGE touchpoint located in the Header Bar. The ACKNOWLEDGE touchpoint will be highlighted in blue. A check
mark will appear next to the acknowledged event. Once all the events have been acknowledged the blue highlight indicator will move
from the ACKNOWLEDGE touchpoint to the SILENCE touchpoint.
• Tap on the
SILENCE touchpoint located in the Header Bar. The SILENCE icon in the Alert Bar will illuminate yellow once the N16 is
silenced all silenceable outputs will turn off.
• Investigate and correct the condition that activated the CO Alarm point.
• Once all events on the N16 have been silenced the blue highlight indicator will move from the SILENCE touchpoint to the RESET
touchpoint.
•Tap the
RESET touchpoint located in the Header Bar to return the N16 to normal operations.
NOTE: If an unacknowledged, higher priority event exists, the control panel will retain the indications of the higher priority event, such as an
audible tone, etc. The flashing the CO Pre-Alarm Graphic and sending the CO Pre-Alarm message to the history buffer and printer, and
annunciators will still occur at the time of the event.

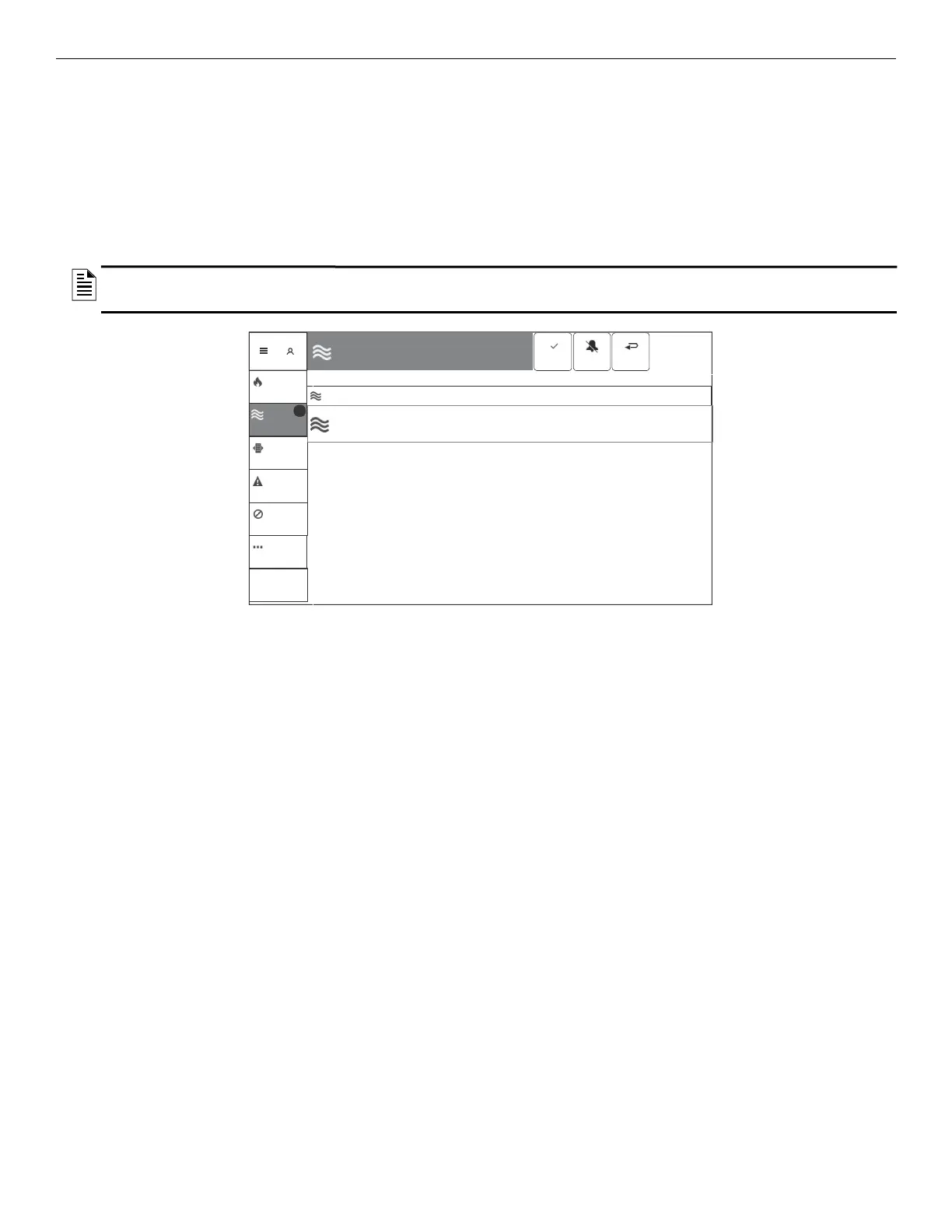

1:38:06PM
SUPERVISORY
TROUBLE
DISABLE
SIGNALS
SILENCED
FIRE ALARM
CO ALARM
1
CO ALARM
CO ALARM
CO MONITOR
First Floor, Guest Room
Zone Z115 (Z115)
Thu 02/22/18
1:52:57 PM
NO25L01M011
Step 1 Acknowledge each event. This is secondary text to explain what acknowledging an event means and who should do it.
UNACKNOWLEDGED CARBON MONOXIDE ALARMS (1)
OTHER
To Next Page
