NFW-50X Manual — P/N LS10129-001NF-E:C 7/25/2018 21
Mounting the Backbox Installation

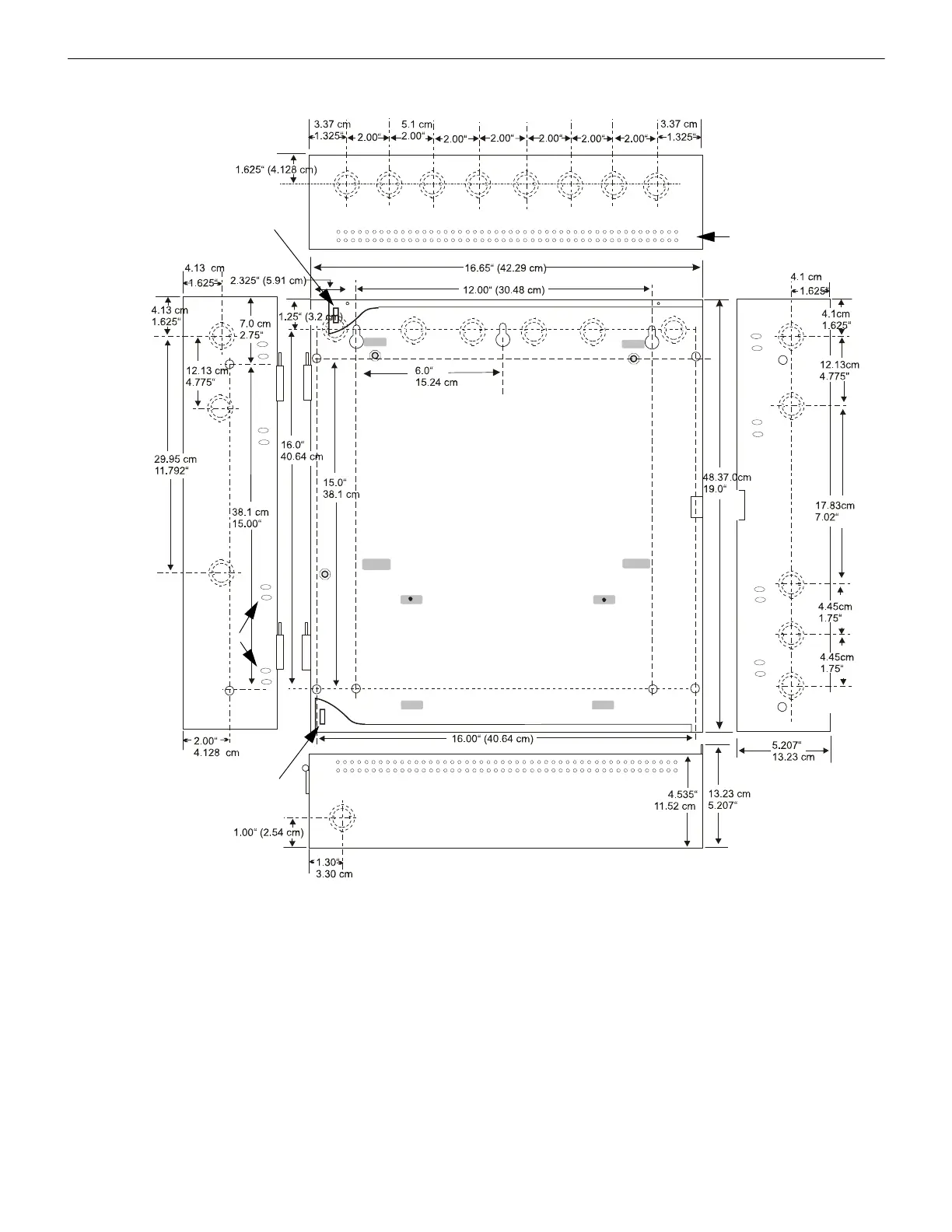

Figure 2.2 NFW-50X Cabinet Mounting
9050udencl.wmf
Semi-Flush
Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
Hinge Slot for optional
Dress Panel
Hinge Slot for optional
Dress Panel
Semi-flush
mounting hole
Mounting
slots for
optional
Trim Ring
