PAGE - 15 Installation and operating manual UDS-3
NOTIFIER ITALIA Doc. M-205.1-UDS3N-ENG Rev A.1 UDS-3_manu
FUNCTION KEYS
Function keys allow programming menu access and status visualization for each releasing zone. They are near
display’s lower border and are active during visualization of UDS-3 main screen.
F1 (MENU)
It allows to access main menu for UDS-3 programming and configuration.
F2 (INFO)
It allows accessing the visualization screen for extinguishing condition, faults, and exclusions events in zone 1.
F3 (INFO)
It allows accessing the visualization screen for extinguishing condition, faults, and exclusions events in zone 2.
F4 (UDS3)
It allows accessing the visualization screen for UDS-3 system faults.
U
U
s
s
e
e
r
r
i
i
n
n
t
t
e
e
r
r
f
f
a
a
c
c
e
e
d
d
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
Normal condition

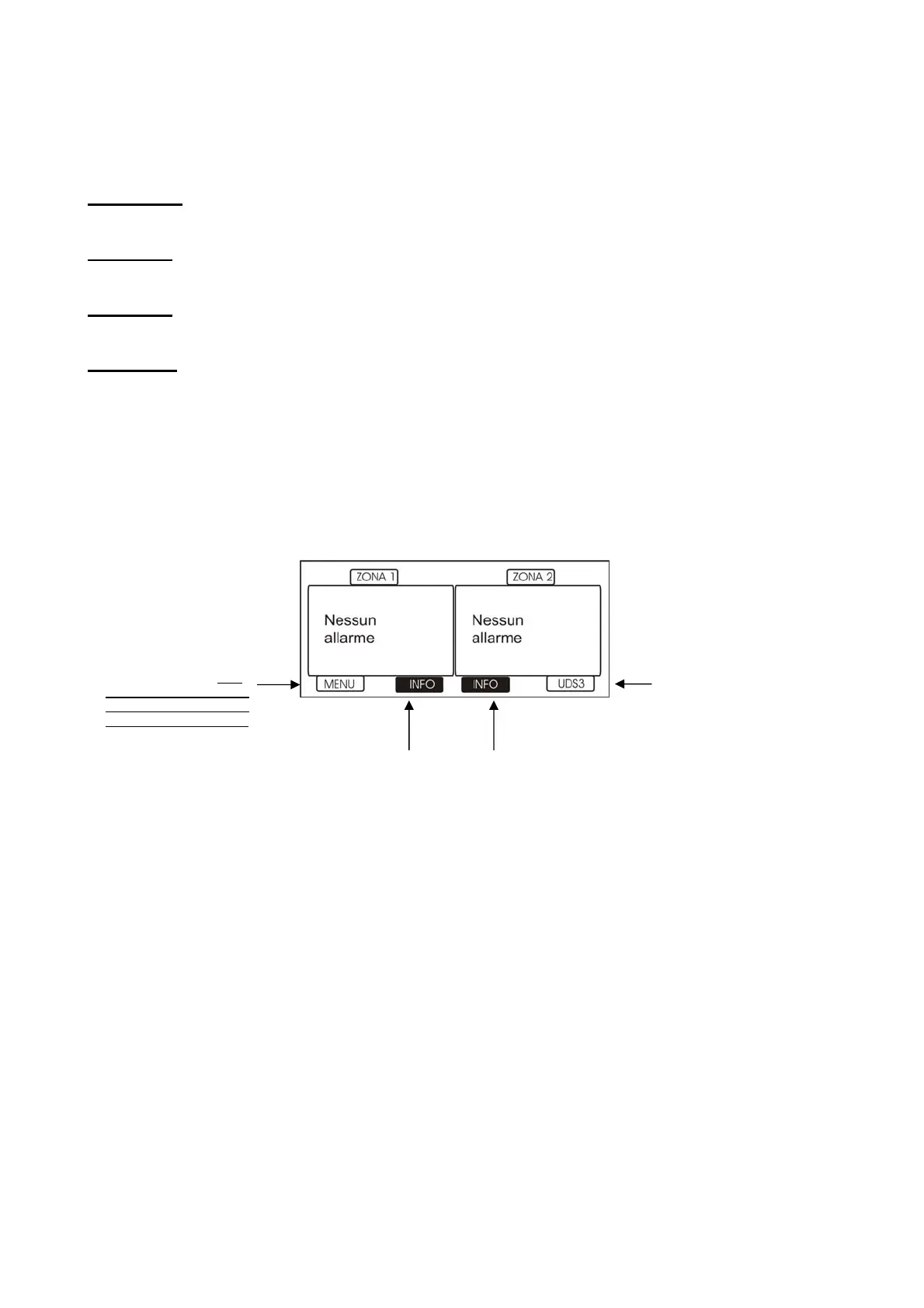

The following screen is shown when UDS-3 is in normal mode (Plant state):
Function associated to F1 key.
In this case, pressing F1 enters
programming menu. See
paragraph key functioning
description for data insert.
See programming menu
Function associated to F2 key. In
this case pressing F2 key enters
INFO menu (event list
visualization of zone 1 faults)
Function associated to F3 key. In
this case pressing F3 key enters
INFO menu (event list
visualization of zone 2 faults)
Function associated to F4 key. In this
case pressing F4 enters UDS3 menu
(general system fault event list).
