PAGE - 21 Installation and operating manual UDS-3
NOTIFIER ITALIA Doc. M-205.1-UDS3N-ENG Rev A.1 UDS-3_manu

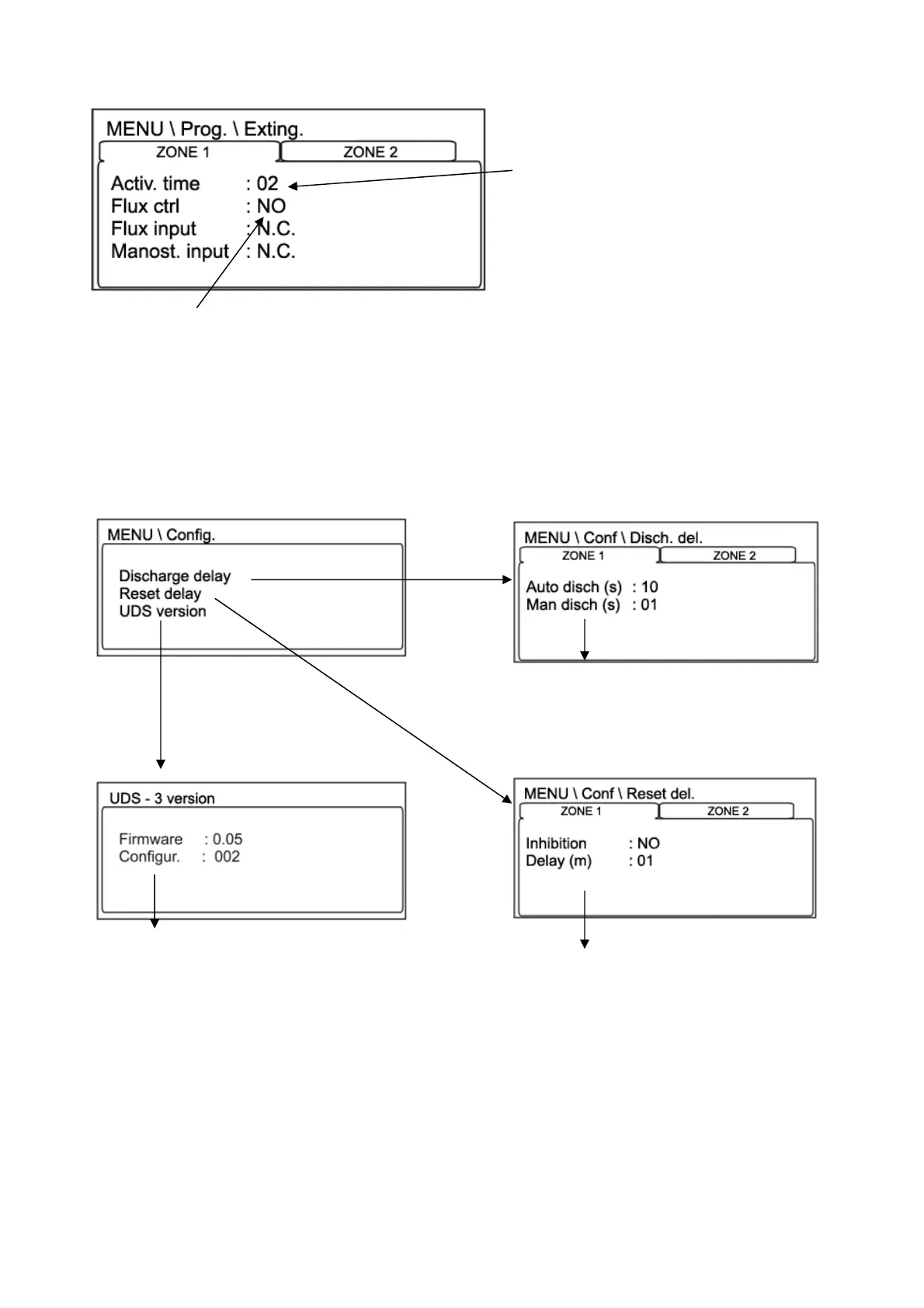

Configuration Menu
Selecting “Config” menu (with level 3 password) you can access the following configuration parameters:
Extinguishing output activation time programming.
You can set the following timings:
2 seconds
60 seconds
150 seconds
10 minutes
Enabling flowmeter control (Flow ctrl.: YES)
This input activation indicates that extinguishing release is in progress.
If flowmeter output activates during standby condition, it means that extinguishing has not been
started by UDS-3 panel but by an external device (for example a manual activation of the rapid flow
valve). This brings UDS-3 into “release condition”. If, instead, UDS-3 starts release condition, this input
is used to manage release cycle.
If “Flow ctrl.: NO” the panel controls only manostat input.
Release delay (Rel. delay)
For each zone i
t allows to set pre-release time for
automatic release (that can go from 0 to 60 seconds
with 5 sec steps) and pre-release delay for manual
release (that can go from 0 to 5 seconds with 1 sec
steps)
Reset delay
For each zone it allows to set inhibition time for reset in case a
release alarm condition was present.
If enabled, delay can go from 1 to 30 minutes with 1 minute
steps. This function can be useful to avoid to an operator to block
release in progress with an extended timing.
UDS Version
Shows firmware version and configuration
menu. Configuration parameter is a
number that increases each time a new
set of changes is performed (except
password).
