Honeywell RMA 3000 - Table 4 Wiring Overview: MEST 3000 Transmitter with or Without HART Option

Release 1 34-ST-25-19 RMA 3000 Remote Meter Assemblies User Manual
6/04
15

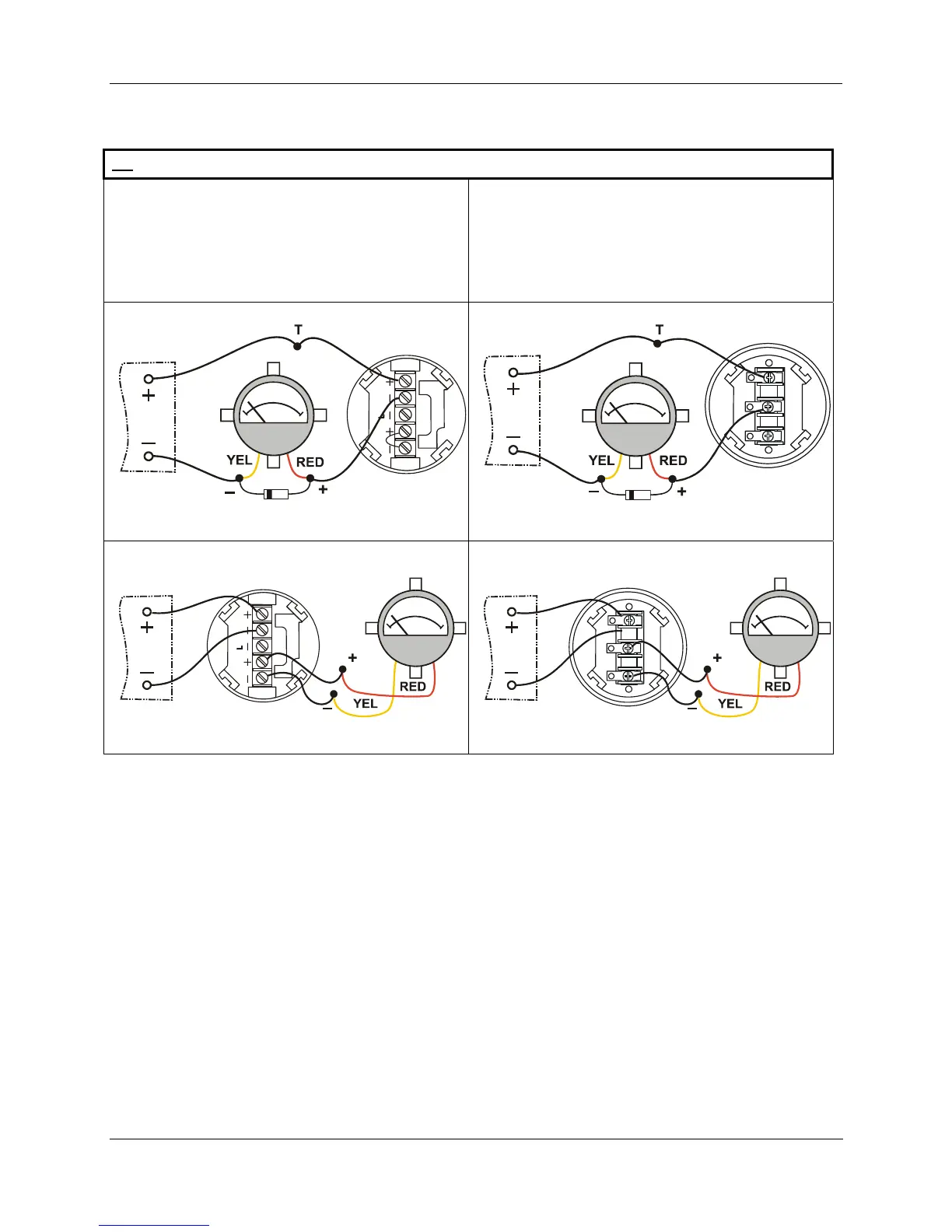

Table 4 Wiring Overview: ME/ST 3000 Transmitter with or without HART Option
ME
With Lightning Protection Option; Drawings:
51204241-3 (FM)
51204242-3 (CSA)
51204243-3 (CENELEC)
51205784-4 (FM – HART)
51450805-6, -7 (CSA – HART)
Without Lightning Protection Option; Drawings:
51204241-7 (FM)
51204242-7 (CSA)
51204243-6 (CENELEC)
51205784-7 (FM – HART)
51450806-10, –11(CSA – HART)
Note – This configuration is approved only for HART.
