69-1730 8
Step 4. Follow Special Instructions (Cont)
4. If you have only one C and/or C1 wire connected to
your old thermostat, connect this wire to C on the
new thermostat.
Visit www.honeywell.com/yourhome or call
Honeywell Customer Care at 1-800-468-1502
before returning the thermostat to the store.
Y
C
R
W

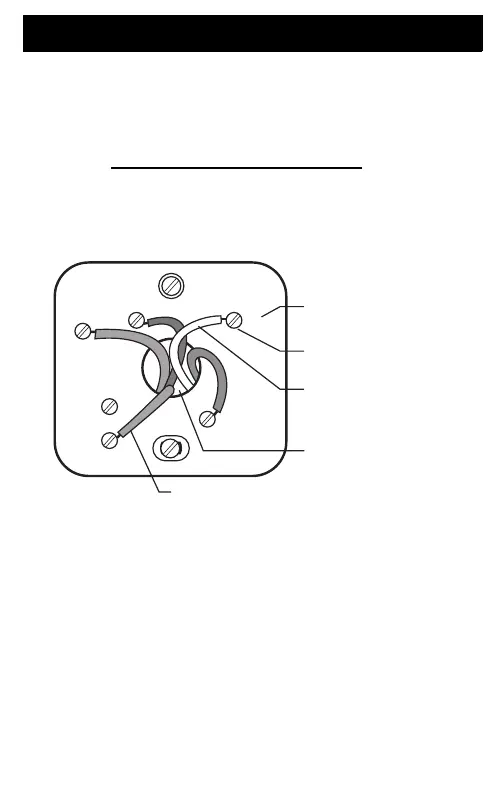

OLD THERMOSTAT
WIRE HOLE
M22223
CONNECT TO THE "C" ON THE
NEW THERMOSTAT
WIRE
SCREW
TERMINAL
LETTER
DESIGNATION
G
