7 69-1730

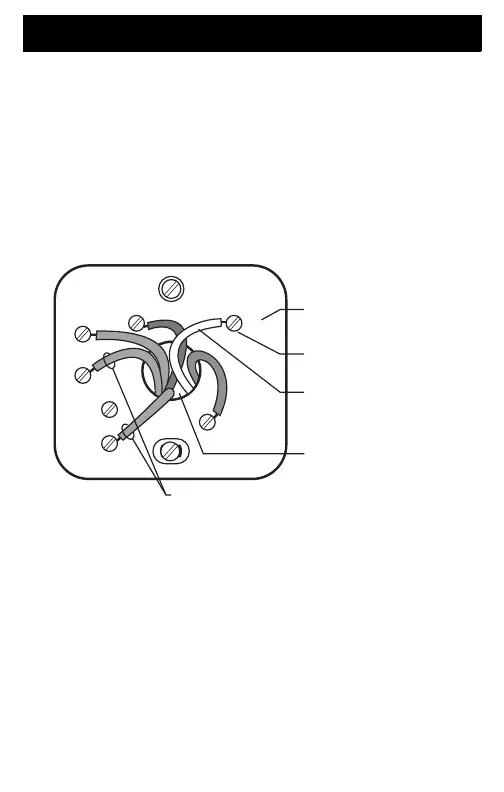

Step 4. Follow Special Instructions
1. If you have two C and/or C1 wires connected to
your old thermostat, do not connect them to your
new thermostat.
2. Disconnect the C and/or C1 wires. Make sure they
do not touch each other or any other wires.
3. Wrap the bare end of each C and/or C1 wire with
electrical tape.
Y
C
C
R
W
OLD THERMOSTAT
WIRE HOLE
M22201
DO NOT CONNECT TO NEW
THERMOSTAT
WIRE
SCREW
TERMINAL
LETTER
DESIGNATION
G
69-1730.fm Page 7 Tuesday, July 13, 2004 12:45 PM
