15 69-1730

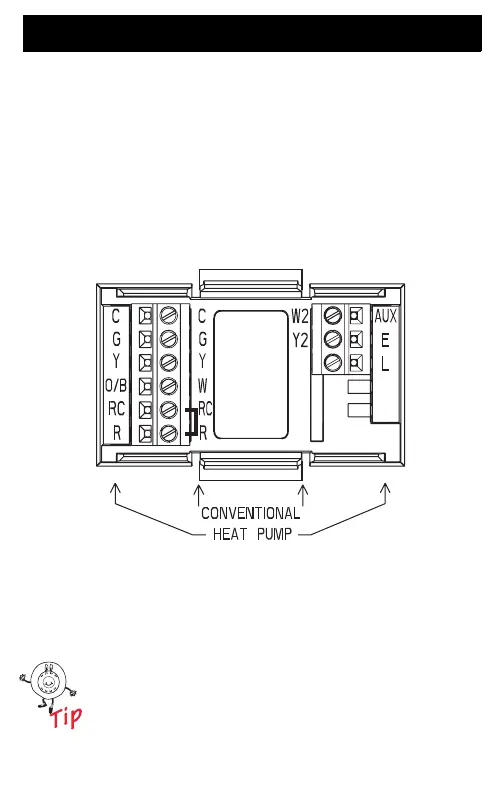

Step 7. Connect Wires to New Wallplate
1. Match the labeled wires to the letter designations
on the wallplate.
2. Select the correct letter designations to follow for
your system. If you have a standard heating and/or
cooling system, use the CONVENTIONAL letter
designations. If you have a heat pump system, use
the HEAT PUMP letter designations to wire the new
thermostat.
See table on page 29 to help you determine if
you have a CONVENTIONAL or HEAT PUMP
system.
M22294
69-1730.fm Page 15 Tuesday, July 13, 2004 12:45 PM
