Honeywell RTH8500 Owner's Manual

7

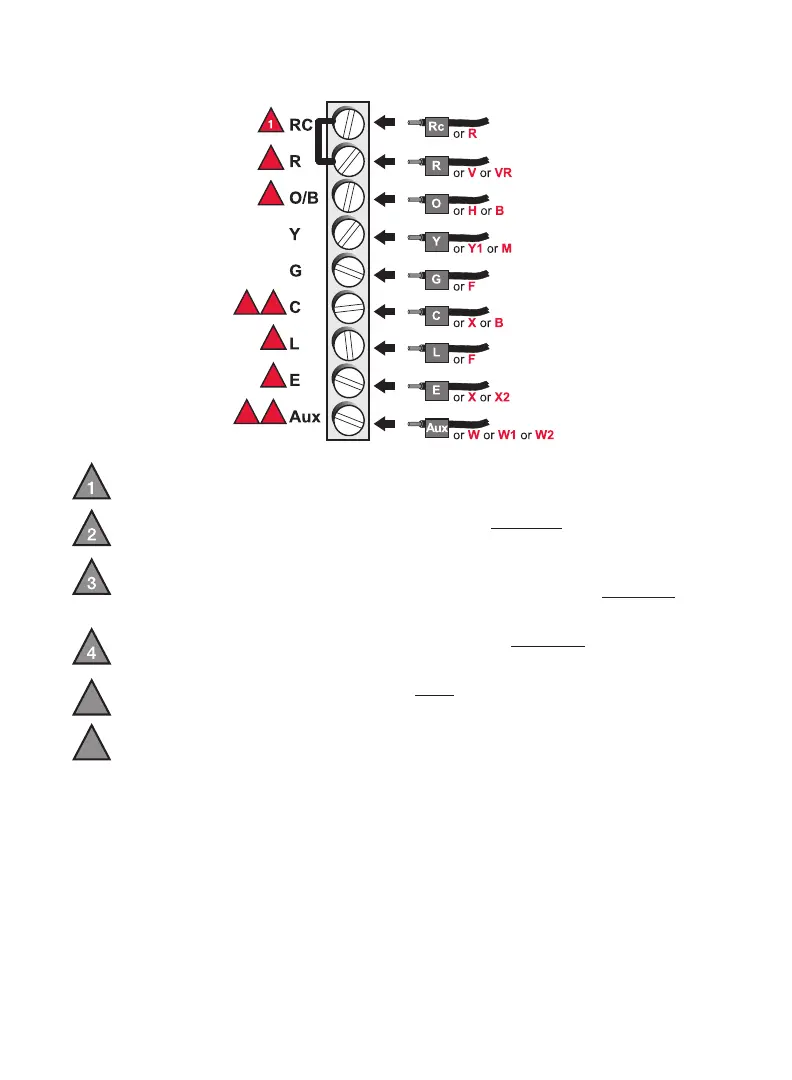

Alternate Wiring (For Heat Pumps Only)
2
3
3
4
5
5
6
6
MCR28077
Leave metal jumper in place, connecting R & Rc terminals.
If your old thermostat had both
V and VR wires, stop now and contact a
qualified contractor for help.
If your old thermostat had separate
O and B wires, attach the B wire to
the
C terminal. If another wire is attached to the C terminal, stop now and
contact a qualified contractor for help.
If your old thermostat had
Y1, W1 and W2 wires, stop now and contact a
qualified contractor for help.
If
L terminal is used, C terminal wire must be connected (contact a
contractor if there is no
C wire).
If
E and Aux terminals do not each have a wire connected, use a small
piece of wire to connect them to each other.
5
6

Honeywell RTH8500 Specifications

General

Hold Feature	Yes
Compatibility	Works with most heating and cooling systems
Temperature Range	40°F to 90°F
Weight	250 g
Programmable	7-day programmable
Dimensions	4.5 x 3.5 x 0.9 inches (114 x 89 x 23 mm)
