Introduction
2. Introduction
The fire alarm control panel is available in two models: STX and SMX.
The STX model
• Comes with a plastic enclosure
• Available in 1 loop (98 devices or 198 devices) and 2 loop configurations
• Has a 5-inch touch screen
• Available in Red and Grey colors
• LED indicators to know the status of power, system, and so on
• Supports 160 zones
The SMX model
• Comes with a metal enclosure
• Available in 1 loop, 2 loop, and 4 loop configurations
• Has a 5-inch touch screen
• Available in Red and Grey colors
• LED indicators to know the status of power, system, and so on
• Supports 160 zones
2.1 Features
Following are some of the features of the fire alarm control panel:
• Connections to one, two, or four Signalling Line Circuit (SLC) loops
• Support for Morley UL variant detectors and modules
• Alarm, trouble, and programmable relays

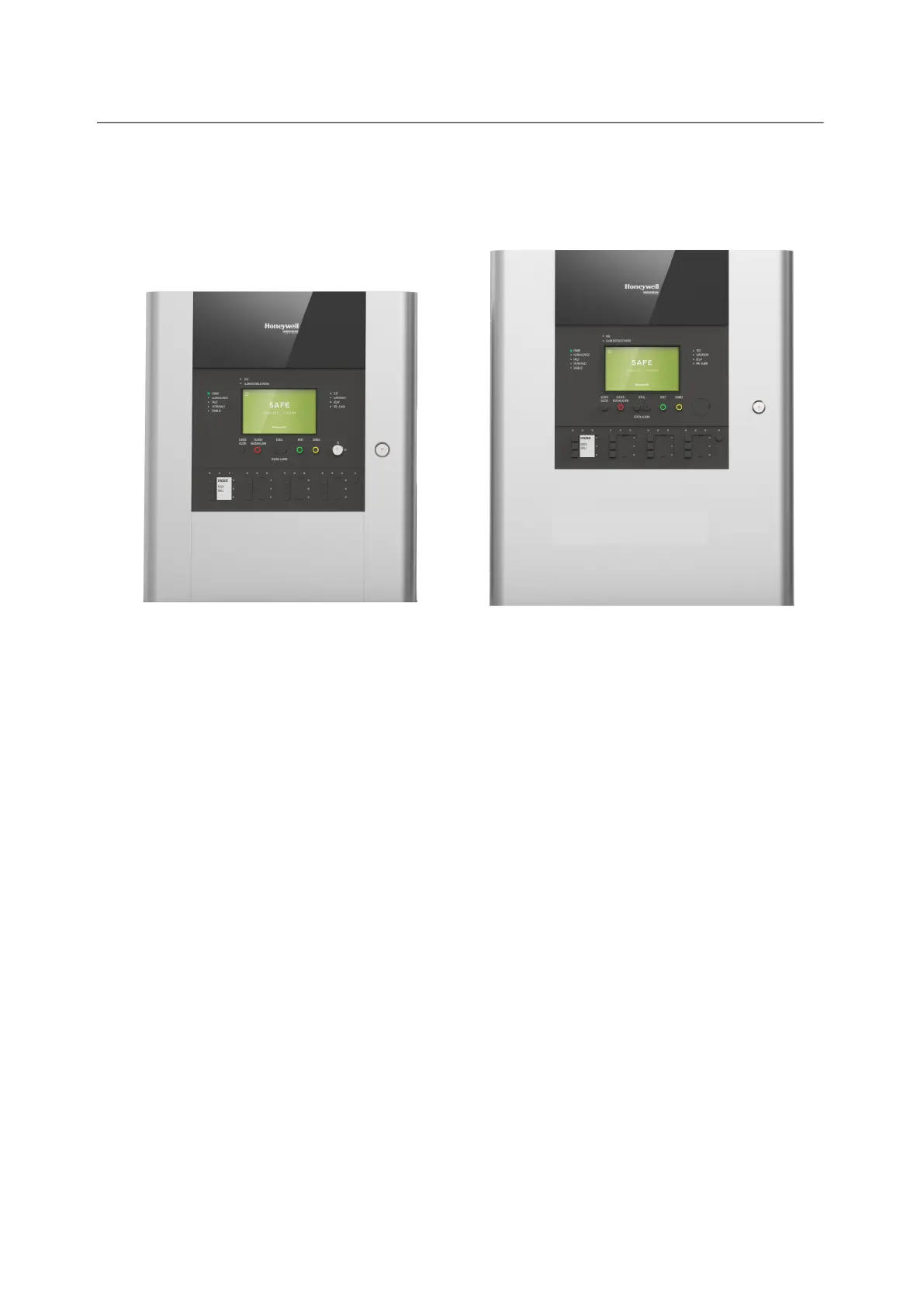

STX Panel
SMX Panel
