Honeywell T2798I2000 - DIMENSIONS; INSTALLATION; Mounting Recommendations; Installation Location Precautions

Page 3 of 18 APHITEMPCON001-11-04

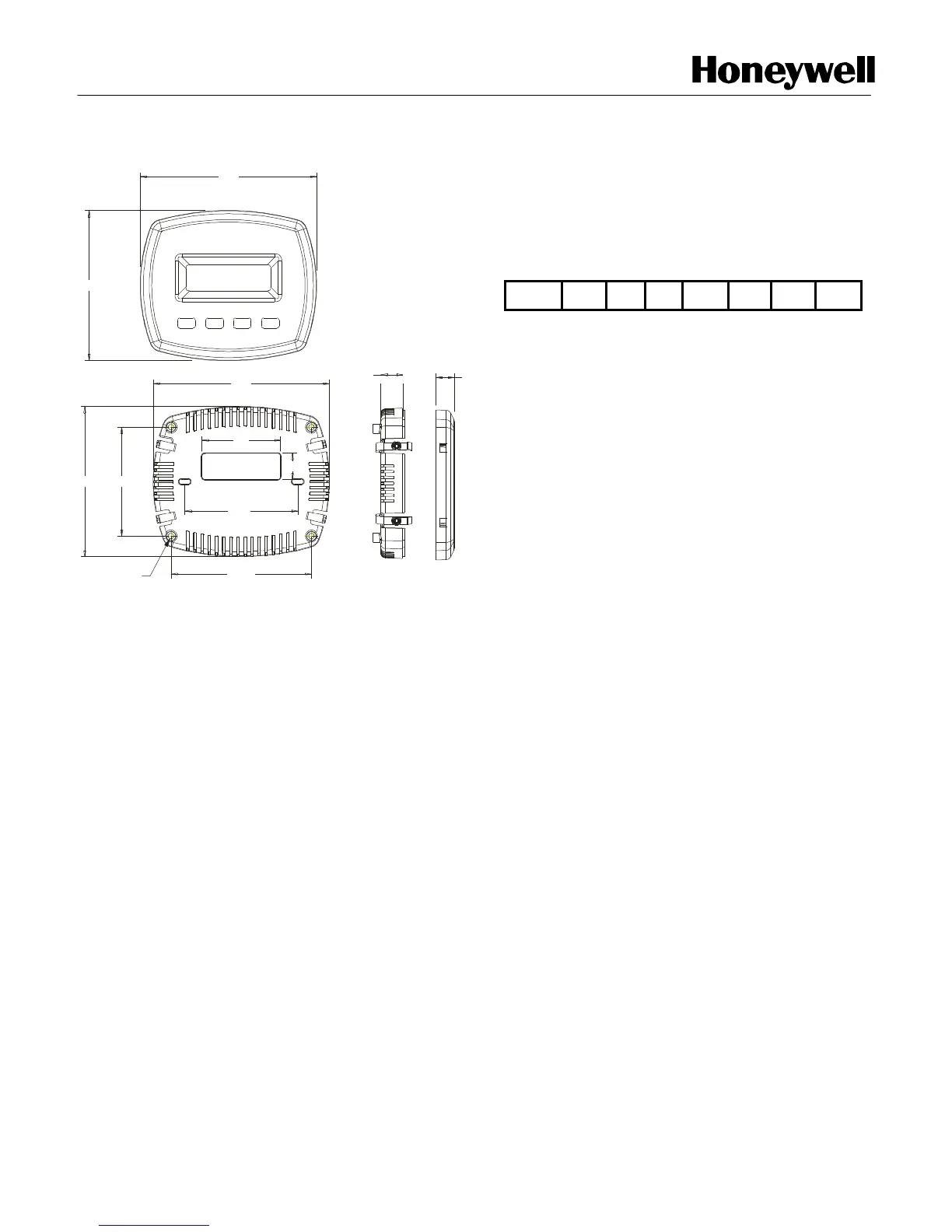

DIMENSIONS:
INSTALLATION:
The controller can be installed in any position on a
flat surface using electrical box [Type-3 Module].
To measure room temperature by internal sensor
and choosing wall mounting method, it is
recommended to be installed 1.5m (about 5 ft.)
above the floor in the area at average temperature
conditions.
For all kinds of mounting method, the product must
be installed in an area with good air circulation.
Do not install the controller where it may be
affected by:
 Draughts or dead air spots behind doors
and in corners.
 Hot or cold air from ducts.
 Radiant heat from sun or appliances.
 Concealed pipes and chimneys
WIRING TERMINAL:
1
2
3
4
5
6
7
8
1 & 2 – Relay Output
3 – 0Vac
4 – 24Vac
5 – Digital Input
6 – 2…10Vdc OR 4…20mA analog output
7 & 8 – PT1000 Remote Sensor
14
135
115
17
60
135
115
107.5
83.5
86.5
20
M3 Self Tapping screw
